36 Handling of Consumables
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX Operator’s Manual SOLID 50 A3 - 3 Edition 2.1

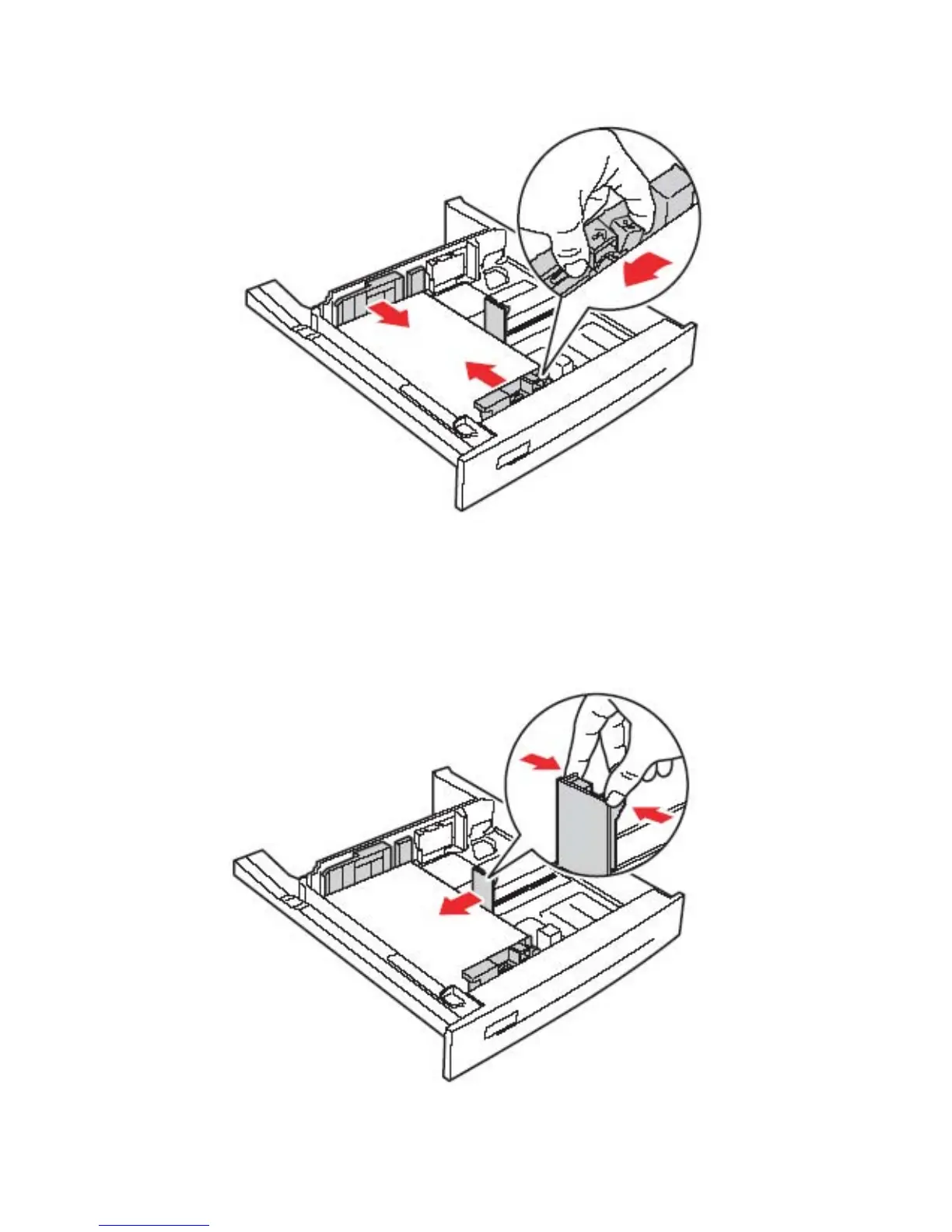

Fig. 3.1.1.f Sliding the front guide to the print media stack
8. Press the levers of the side guide and slide it to the left until it lightly
touches the stack of print media. Make sure the guide locks into
place.
Fig. 3.1.1.g Sliding the side guide to the print media stack
