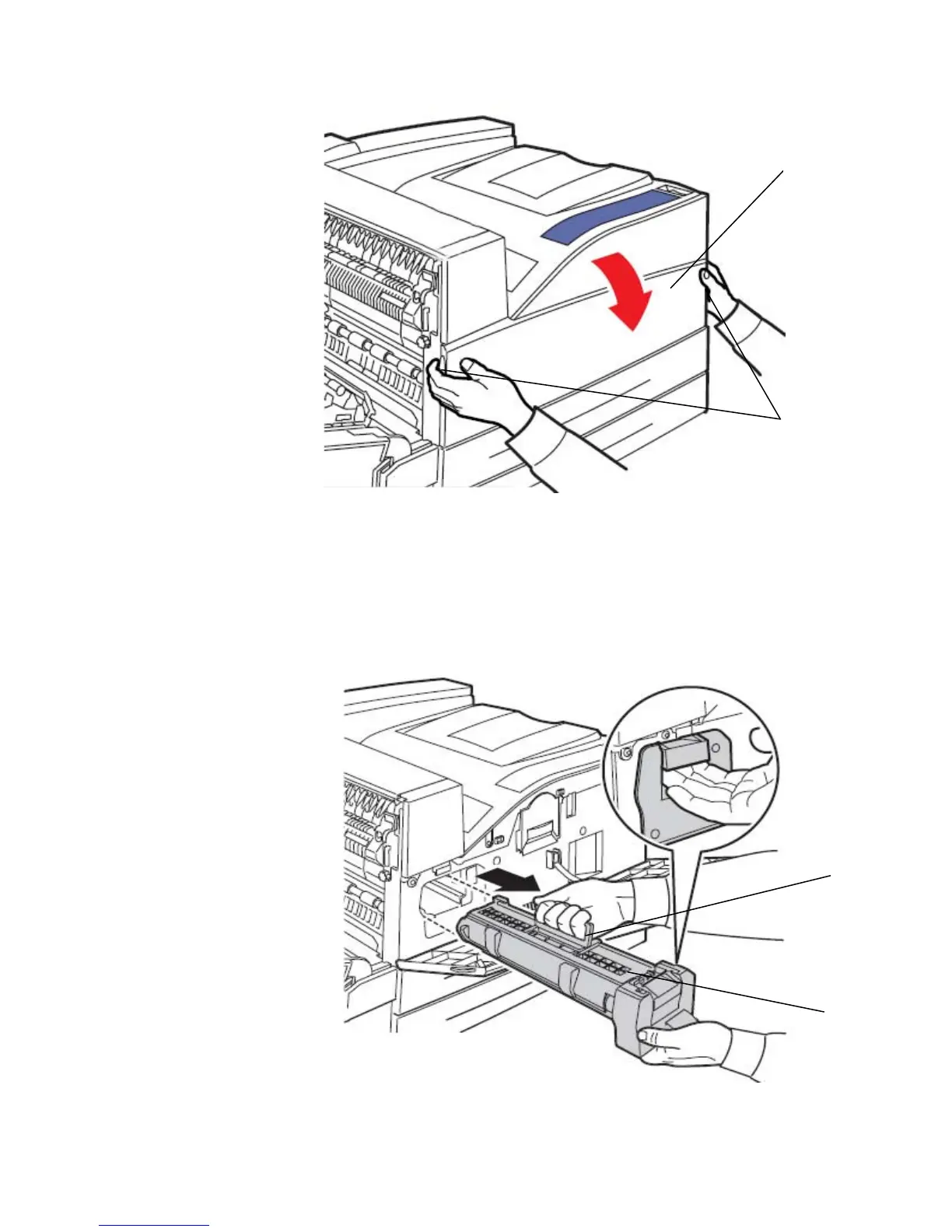

Fig. 3.3.b Opening the printer’s front door (door F)
5. Pull up on the latch to release and slide the drum cartridge out
until you see the handle.
Fig. 3.3.c Taking out the drum cartridge
Drum
cartridge
Handholds
Door F
Handle
