Reference: Appendix 139

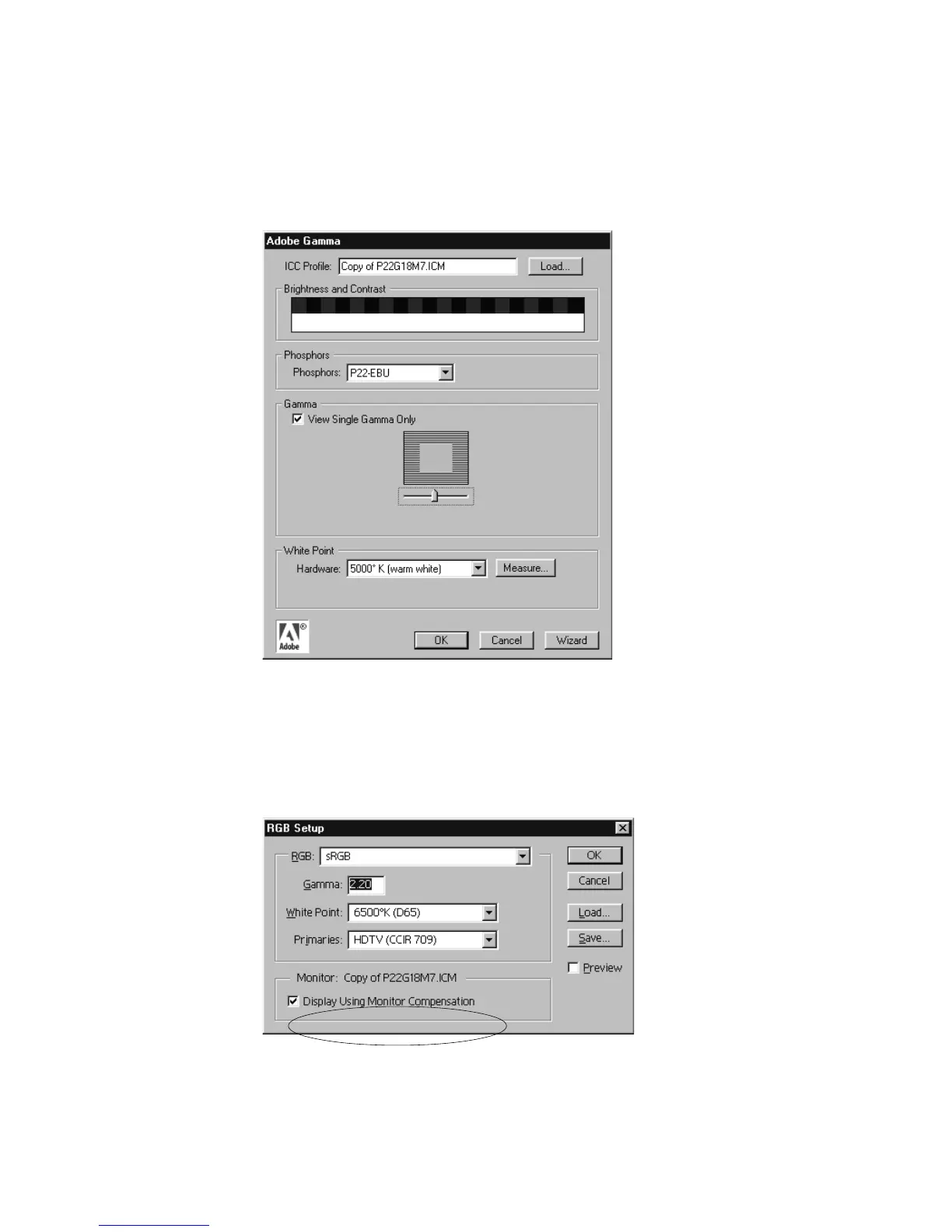

4. Click on the Open button to load the selected profile.
For more information of calibrating monitor, refer to the documentation that
came with Photoshop.
5. Click on the OK button to save the calibrated ICC profile for your monitor.
The saved ICC profile name is shown as the selected Monitor on RGB Setup
dialog box.

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
