Microtek ArtixScan 120tf Reference Manual

78 Microtek ScanWizard Pro TX for Mac & PC
Custom setting to
be retrieved or
loaded

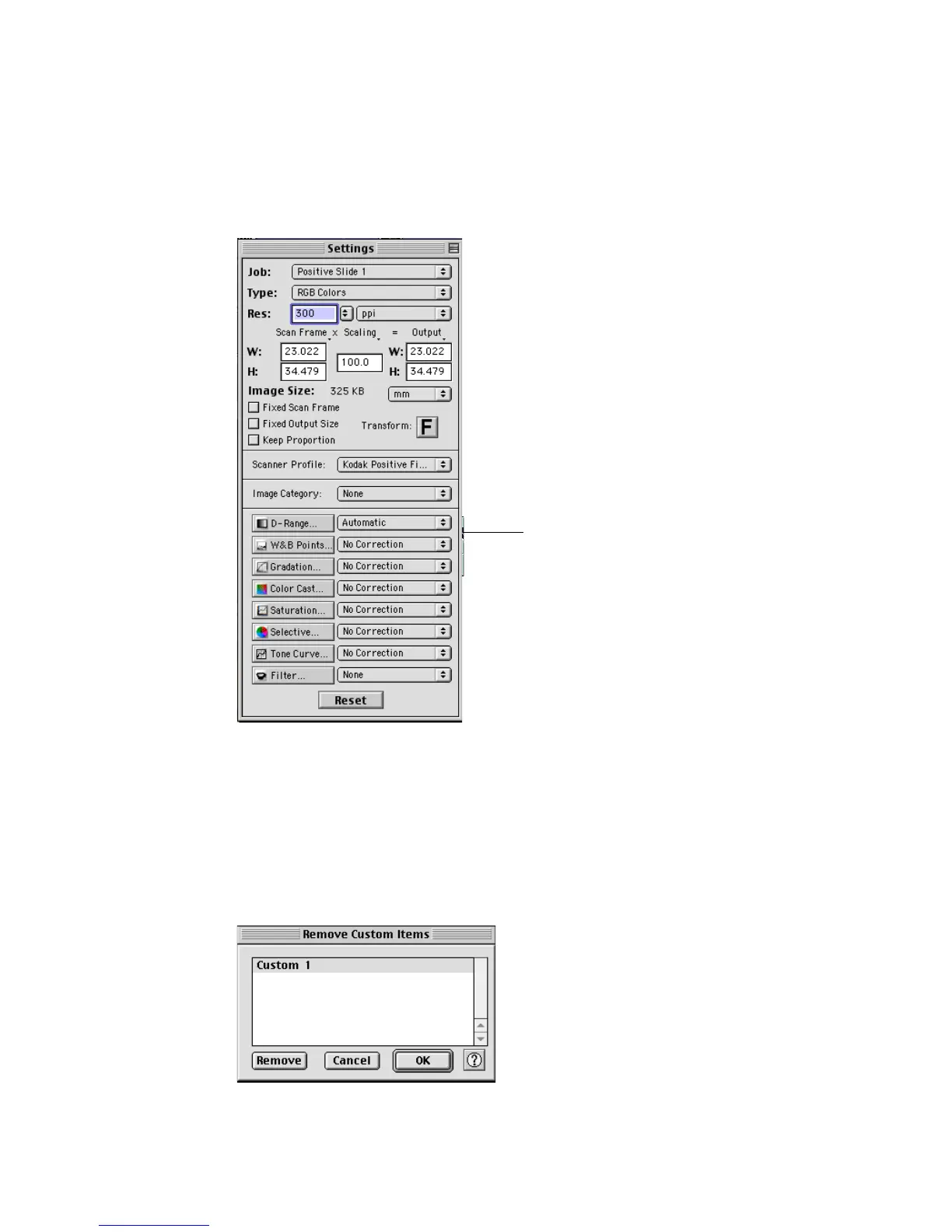

Loading / retrieving user-defined AIC settings
You can always load or retrieve any custom or user-defined settings. To do this,
simply go to the AIC tool of your choice, then choose the user-defined setting
you have made from the Custom pull-down menu of the Settings window.
Removing user-defined AIC settings
To remove a user-defined setting, go to the AIC tool - Custom pull-down menu of
the Settings window, then choose Remove Settings from the menu. When a dialog
box appears like the one below, select the particular setting to be removed, then
click Remove in the dialog box.

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
