Microtek ArtixScan 120tf Reference Manual

140 ScanWizard Pro TX for Mac & PC

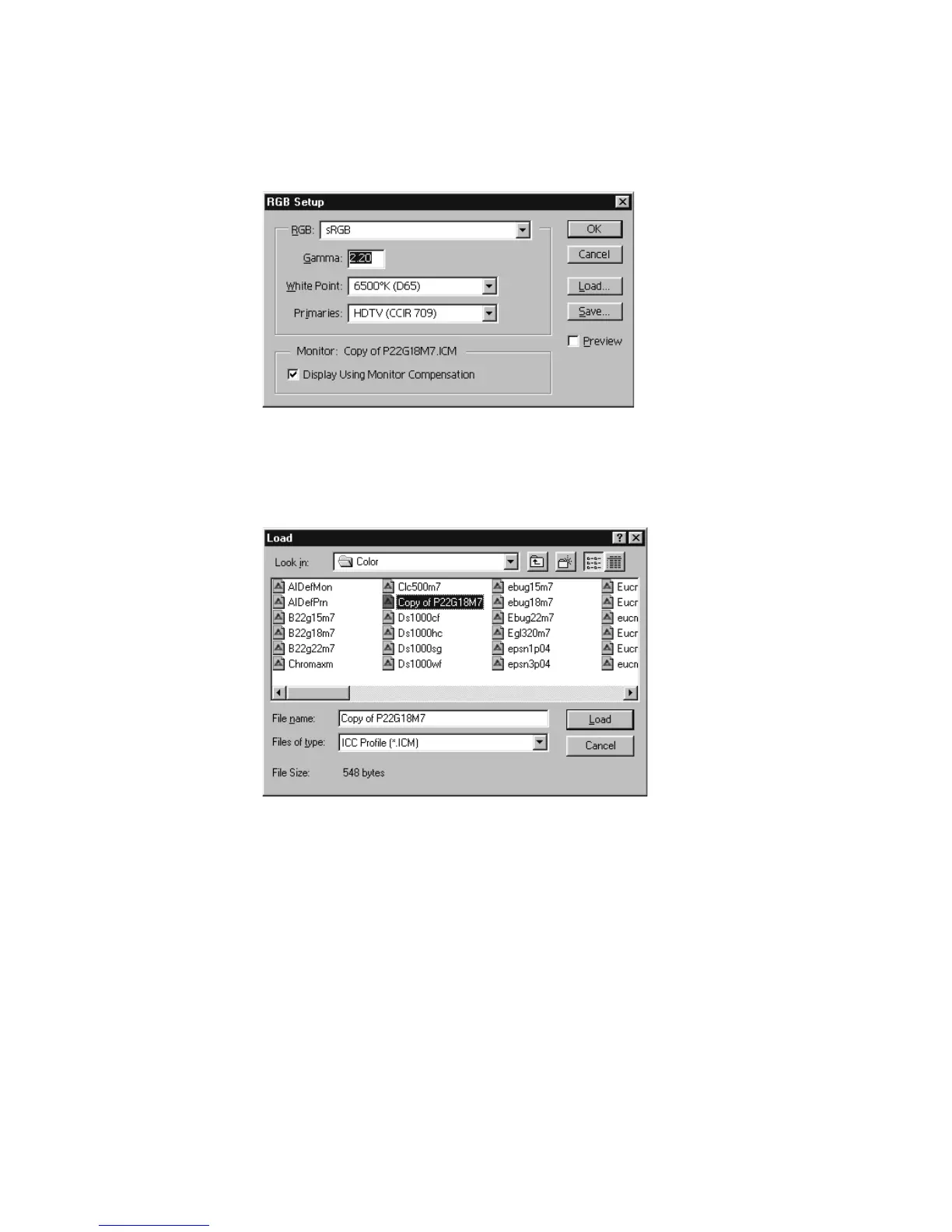

RGB Setup with your monitor ICC profile
1. Choose File, Color Settings, and RGB Setup.
2. Click on the Load button to select the ICC profile your have saved for your
monitor.
In this example, you should select “Copy of P22G18M7.ICM”.
3. Click OK.

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
