Microtek ArtixScan 120tf Reference Manual

Reference: The Job Panel Window 111
Elements of the Job Panel Window
The Job Panel Window
The Job Panel Window display the overview images of your scan jobs. By
definition, a scan job contains the following elements: a set of scanning
parameters (shown in the Settings window); a scan frame (shown in the Preview
window); and a scan job item (shown in the Job Panel Window).
You can have multiple scan jobs, with each scan job having its own distinct
settings, and the number of scan jobs is indicated by the number of titles in the
Job Panel Window. Scan jobs marked with a check are the ones designated to be
scanned, and the jobs are scanned in the order that they appear in the window.

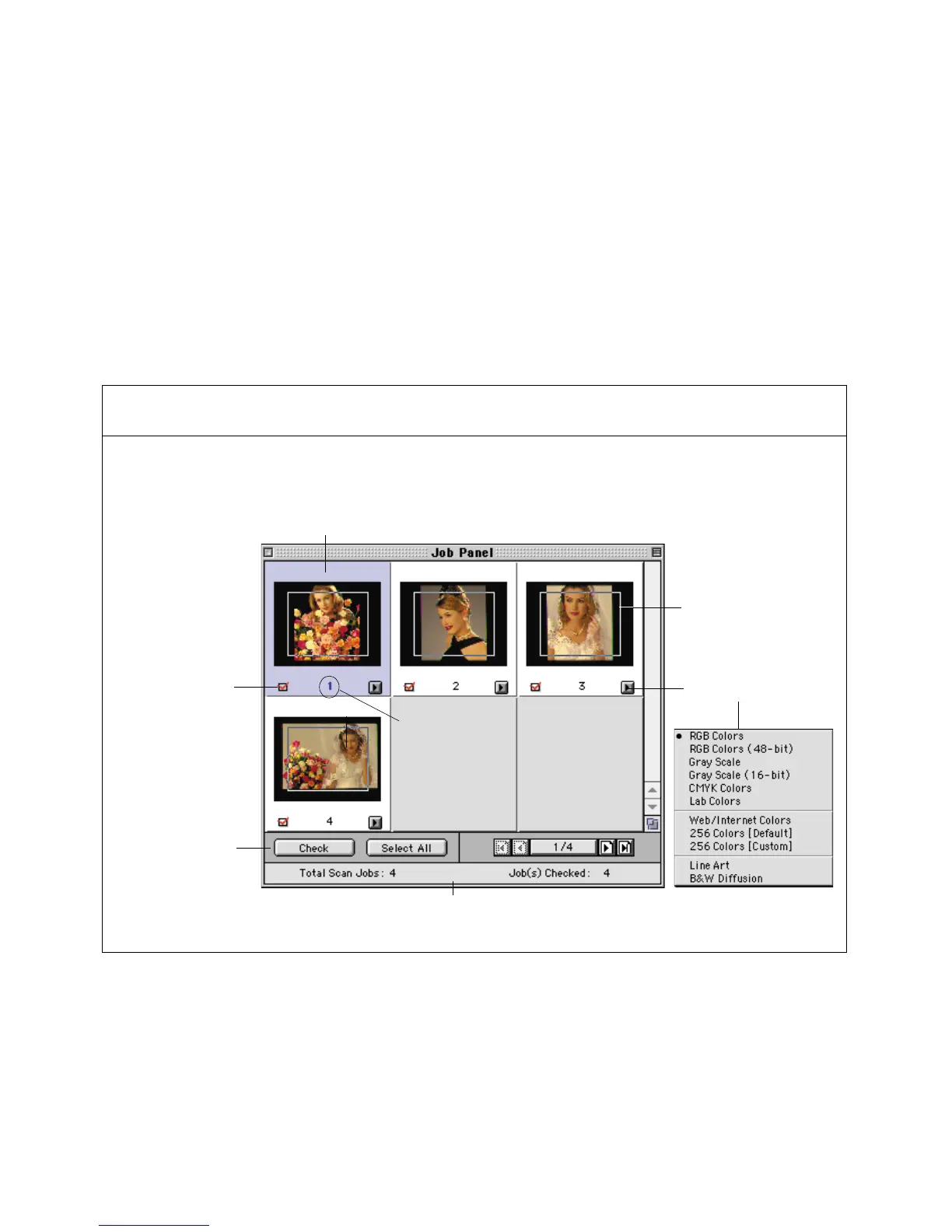

Adjusted scan
frame for cropped
pre-scanning
Check mark:
Indicates job will
be scanned when
you press the Scan
button
Tool bar with
Function buttons
for manipulating
scan jobs
Status bar showing scan jobs status
Selected scan job, which is the
highlighted job. There can be
multiple selected scan jobs
(several highlighted)
Image Type list box
Current scan job number which
will be reflected on top of the
Setting window and the
corresponding prescan image is
shown in the Preview window

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
