Microtek ArtixScan 120tf Reference Manual

24 Microtek ScanWizard Pro TX for Mac & PC

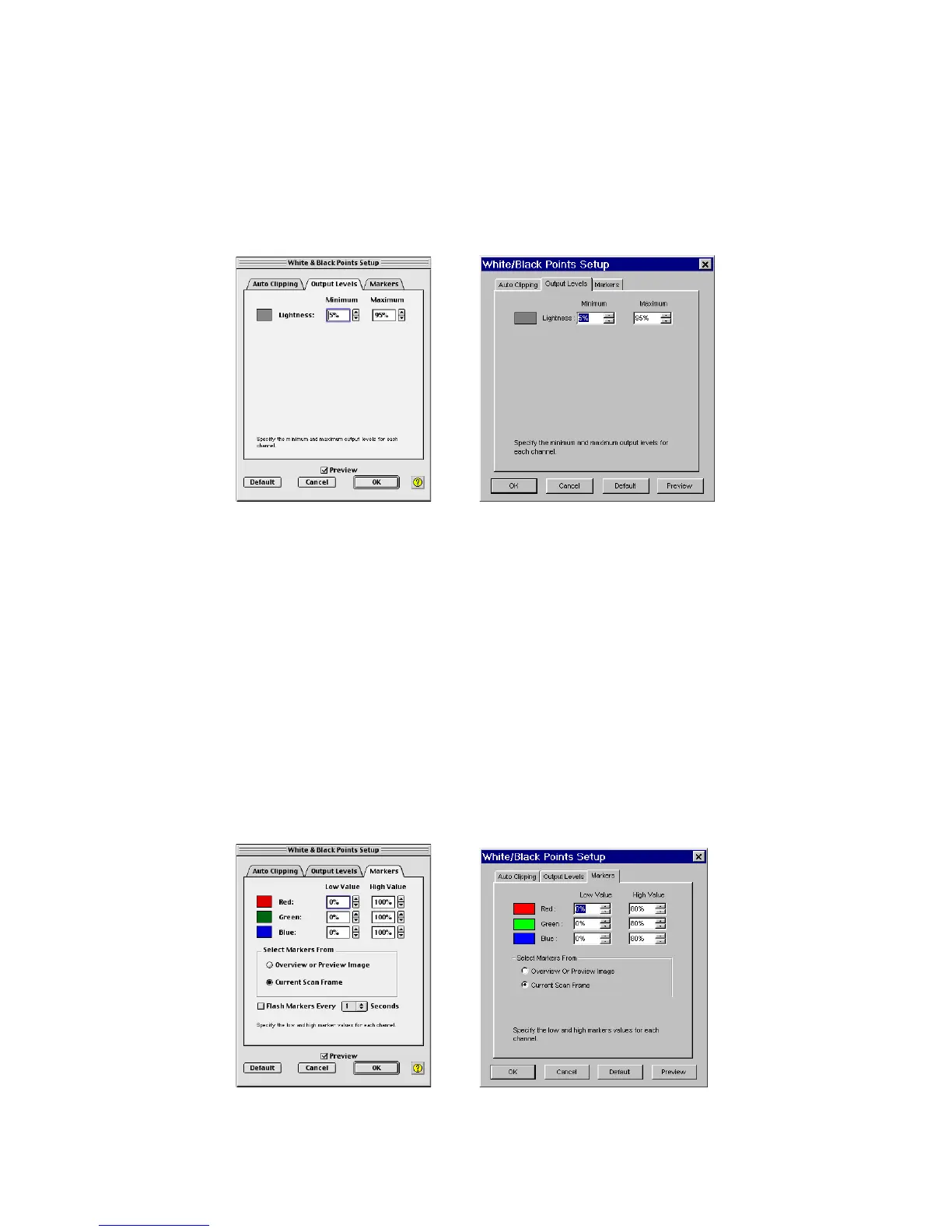

Output Levels tab
The Minimum Output Level lets you set the minimum output level of the black
point. The higher the percentage value, the lower the contrast will be.
The Maximum Output Level lets you set the output level of the white point. The
lower the percentage value, the lower the contrast will be.
Highlight and Shadow Markers Value tab
This lets you set the values of the lightest (High/highlight) spot and the darkest
(Low/Shadow) spot (pinpointed by white and black markers or by spiked circles
respectively) in your preview image. You can specify the image range that the
markers should cover with its evaluation; i.e., evaluate either the entire image
(by selecting the “Overview or Preview image” option) or only the area within
the scan frame (by selecting the “Current Scan Frame”).
To preview the new location of the markers on the preview image (if available)
after defining the new values, check the Preview check box (
MacMac
MacMac
Mac) / click the
Preview button (
PCPC
PCPC
PC). Be sure the whole preview image on the Preview window
is visible when previewing the new locations of the markers.
(Macintosh) (Windows)
(Macintosh) (Windows)

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
