Microtek ArtixScan 120tf Reference Manual

14 Microtek ScanWizard Pro TX for Mac & PC
The View Menu
The View menu lets you:
• Select a prescan view of an image
• Magnify or reduce (zoom in /zoom out) the prescan image
• Resize the Preview window to fit
• Bring the Settings window to the front
• Show or hide the Info, Tag, and Scan Job windows
• Show or hide the High (White) and Low (Black) Value Markers
• Show the ScanWizard Pro TX splash screen
Prescan Image #n
This command is available only after performing a prescan of the overview
images in the Job Panel window. The number of commands indicates the total
available number of prescanned images. Select the appropriate command to
display the corresponding prescan image in the main Preview window for
further editing. The selected command is shown with a check mark to indicate
the image you are currently working and is on display.
Likewise, the Job Panel will highlight the image you have selected. You may also
make the selection from the Job Panel window instead of making it from the
View menu. Clicking directly on any of the multiple overview images in the Job
Panel will also display its corresponding prescan image in the main Preview
window.

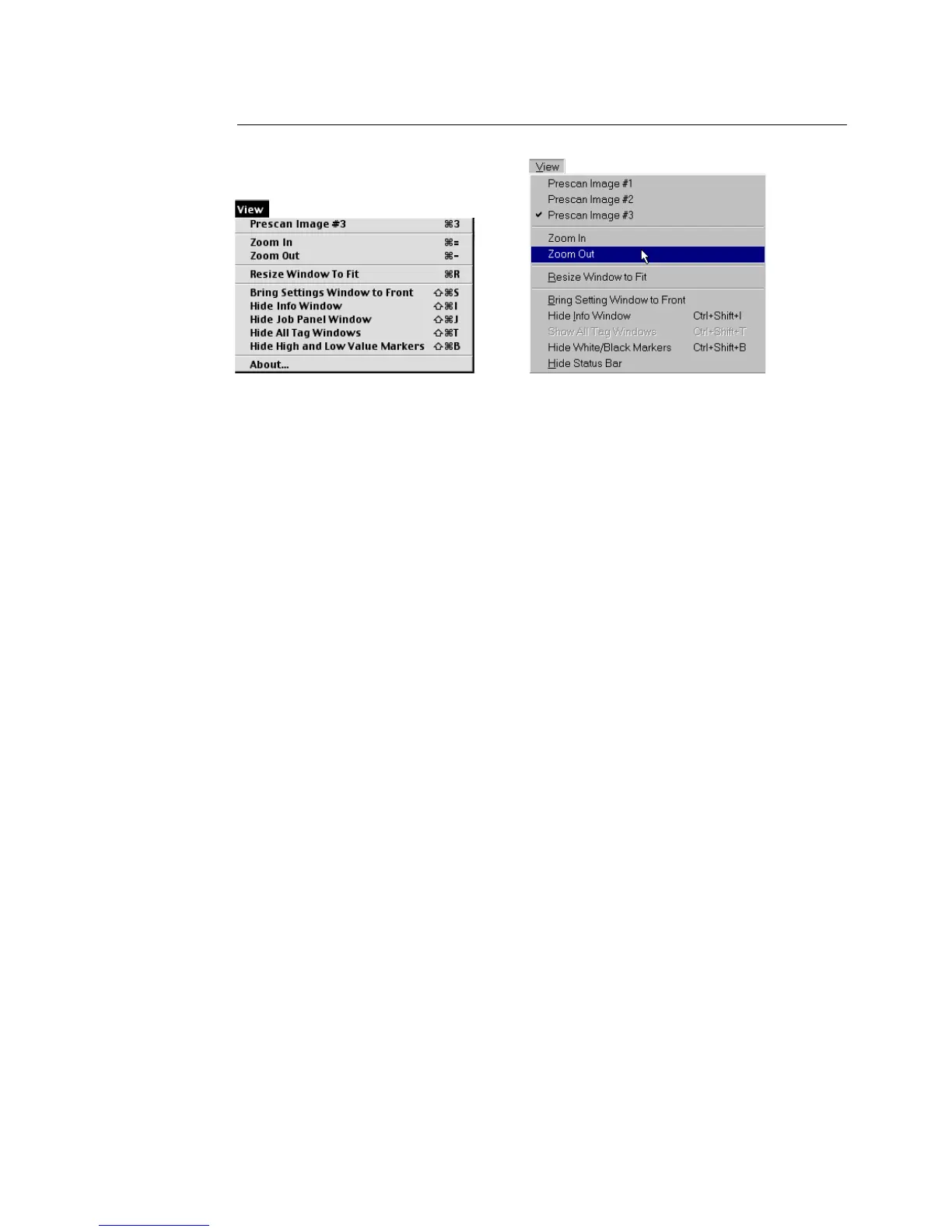

(Macintosh) (Windows)

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
