Microtek ArtixScan 120tf Reference Manual

Reference: The Advanced Image Correction tools 97
Choose the CMYK (as a
whole or individual
channel) to be affected
with the tone distribution
adjustment
Coordinates of cursor position
within the grid
Click to create
handles from
which to drag
and manipulate a
segment of the
curve.
The more
handles are
created, the
easier and
smoother it is to
manipulate the
curve.
To remove a
handle, drag the
handle off the
graph or grid.

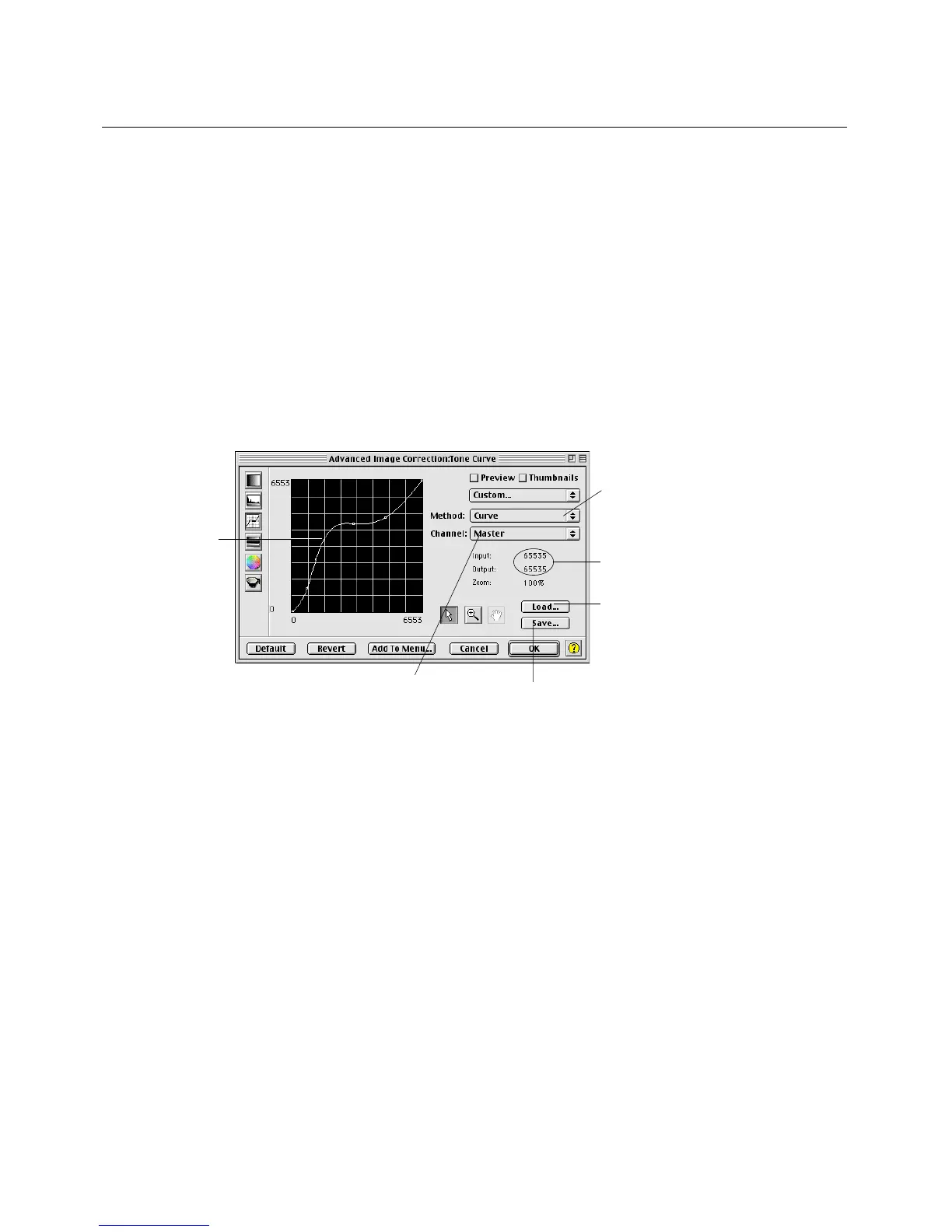

Tone Curve tool
The Tone Curve tool is used to adjust the tonal distribution of each channel of
an image. It functions very much like the Gradation tool, except that it provides
additional functions to allow separate adjustments of the tones in each RGB or
CMYK channel, depending on the image type. This tool is especially useful for
correcting the “ink percentage” distribution (i.e., dot gain correction) in CMYK
images.
For details on how to read the tone curve, see the section on Gradation tool.
Load a previously saved
tone curve setting to apply to
current image. Photoshop-
saved curves can also be
loaded.
Save the current tone
curve settings for use
in future tone
adjustments
Choose the method to
display Tone curve. Default is
Curve. Alternate methods
are Line and Gamma. See
next page for details.

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
