Miller AugmentedArc User Manual

OM-278680 Page 37

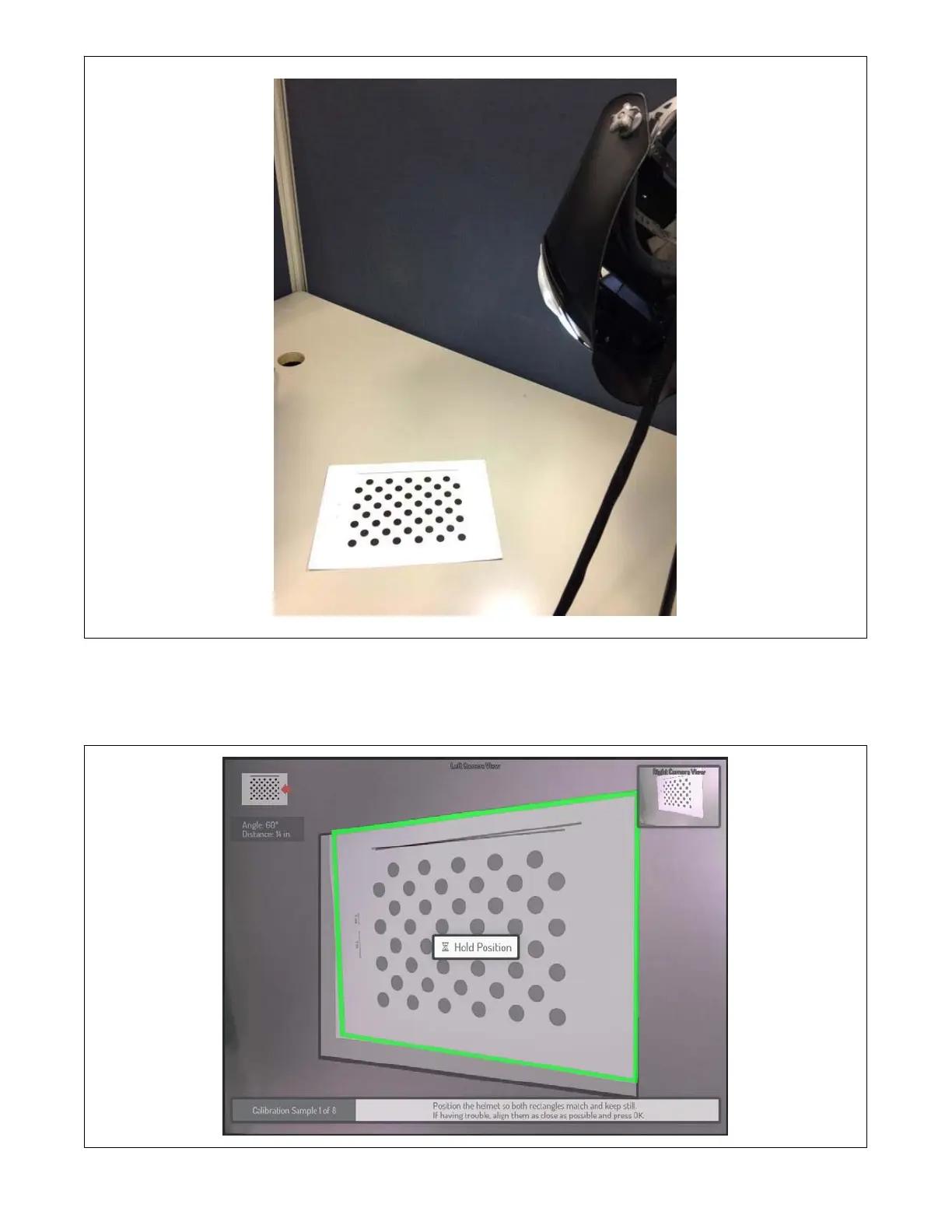

Figure 8-19. Helmet In Proper Position For Capturing Calibration Sample 1
When the helmet is positioned properly, the border of the calibration sheet will turn green and a message will appear that says Hold Position.
Hold the helmet still for a few moments until the calibration sample is captured. After completion, it will automatically proceed to the next sample.
For each sample, note the Helmet Position Direction and position the helmet accordingly.
Figure 8-20. Hold Position
