3-CONTROLSANDINSTRUMENTS
Engineendfuseandrelayblock

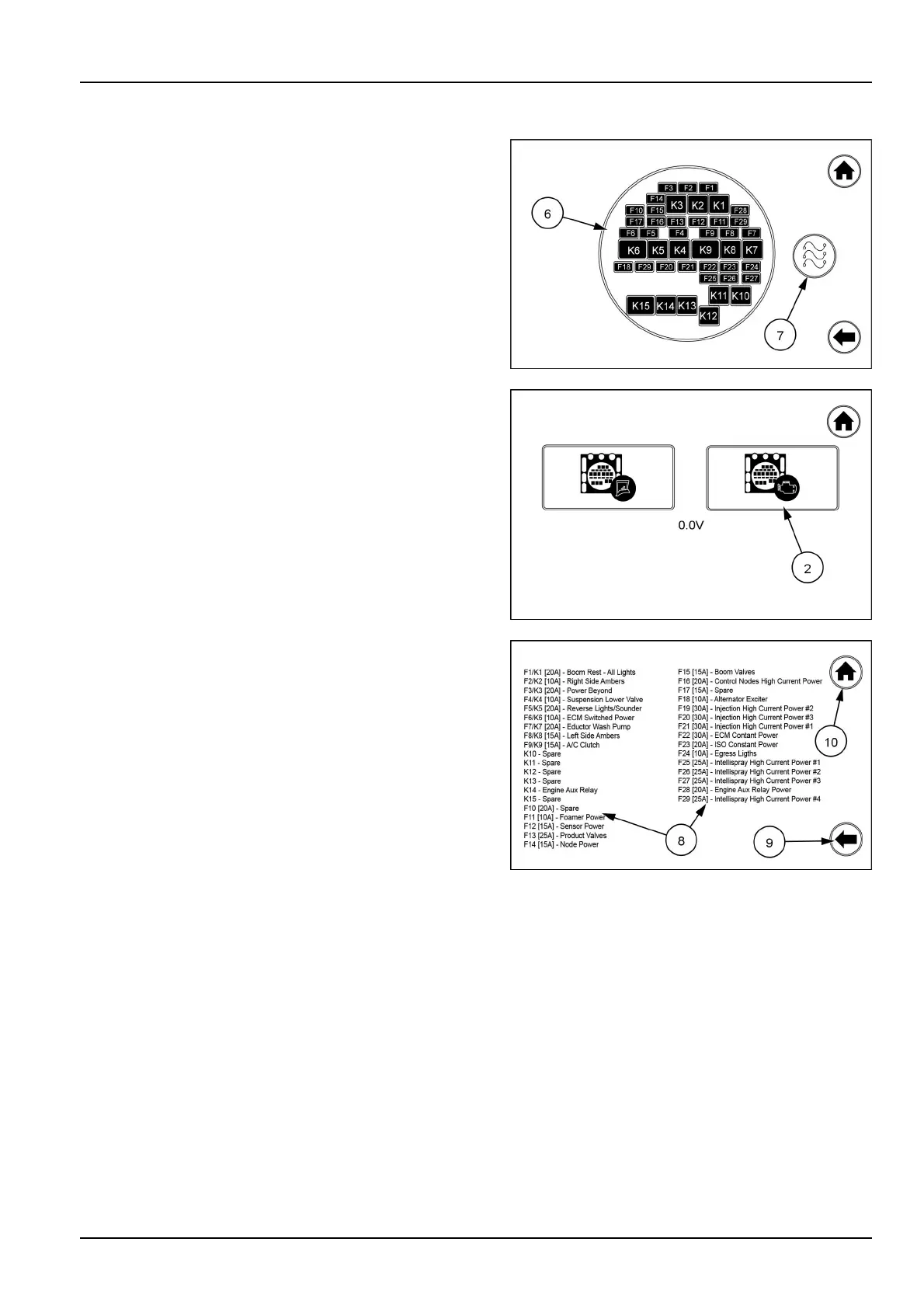

Touchtheengineicon(2)tobringuptheactualfuseand
relayblock(6).T ouchtheicon(7)totherightofthefuse
andrelayblocktobringupalistofthefusesandrelays
(8)andwhattheyprotect.
Togobackonescreen,touchthebackarrowicon(9)at
thelowerright-handcornerofthescreen.
Touchthehomeicon(10)atthetopright-handcornerto
returntothehomepage.
Whenafusehasfailedtheindividualfusewillturnred.An
alarmwilldisplayonthehomepageofthearmrestdisplay
indicatingwhichfuseandrelaypanelhastheblownfuse.
TouchtheOKiconandthengotothesecondarmrest
displayhomepageandtouchtheappropriateicontobring
upthefuseandrelayblock.
Insidethecoverofeachfuseblockareseveralspare
fusestouseifafuseshouldfail.
Relaysshowninthefuseandrelayblockwillturngreen
whenactive.
RAIL17SP00193AA5
RAIL17SP00190AA6
RAIL18SP00383AA7
3-77
