Miller Nitro 7380 - Engine Compartment Access

7-MAINTENANCE
Enginecompartmentaccess
Toaccesstheengine,hydros,batteriesandcoolingfanthereareseparateenginecompartmentcoversthatcanbe
unlatchedandopened.Besuretocloseandlatchallthecoversbeforeoperatingthevehicle.

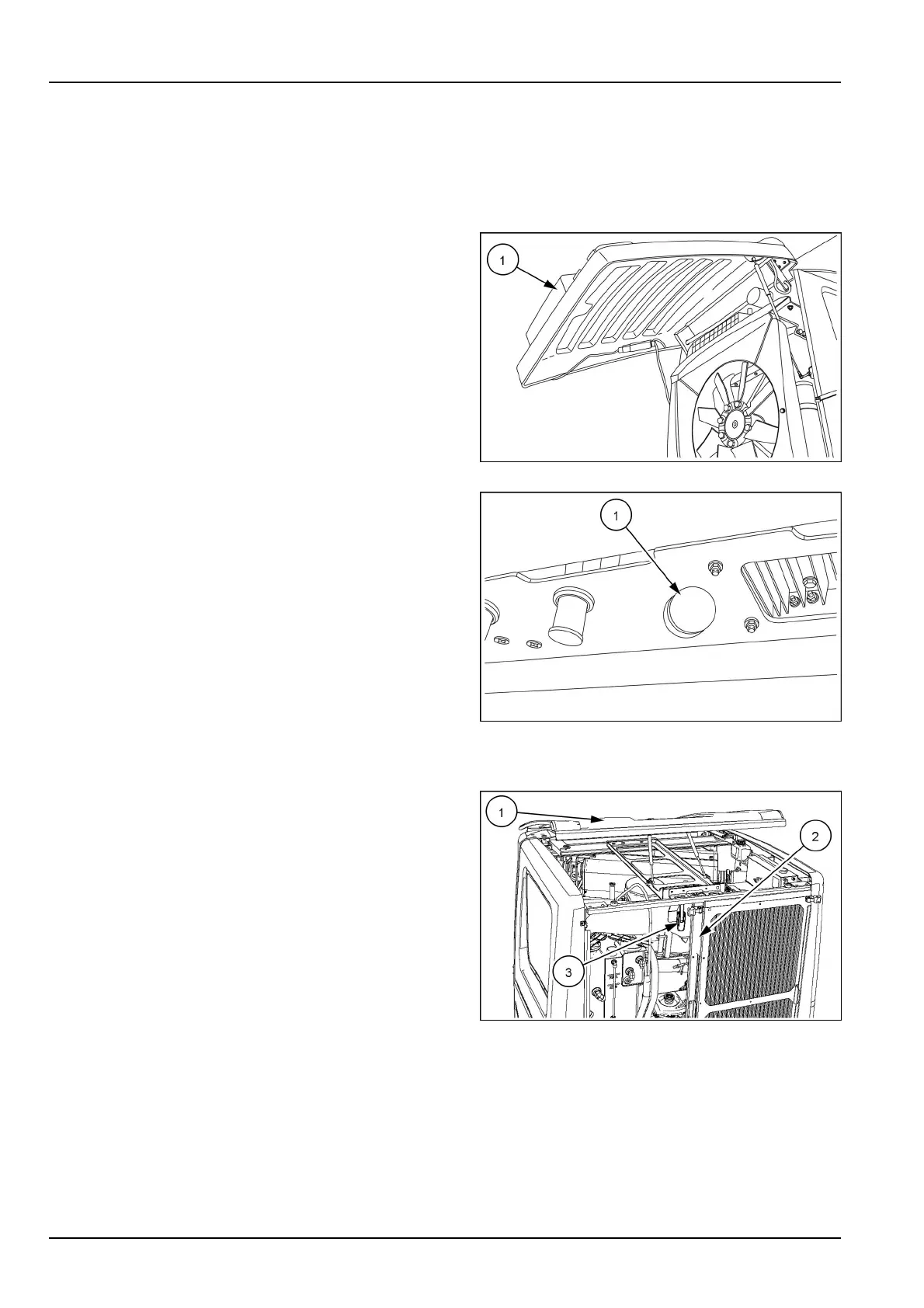

Rearengineaccesscover
Therearenginecover(1)willgivesaccesstothecooling
fan,thebatteries,andtherelays.
RAIL14SP00791AA1
Unlatchtherearcoverbyslidingthelatchknob(1)tothe
sidetounlatch.Thelatchknobislocatedunderthecool-
ingpackagenexttotheremotebatteryterminals
RAIL14SP00792AA2
Enginecompartmentroof
Theenginecompartmentroof(1)canbeunlatchedatthe
frontinsideedgeandpivotedopentoaccessthehydraulic
oilreservoiraswellastheenginecoolantoverowbottle
andsurgetank.
Opentheright-handsideenginescreendoor(2).Access
therubberdrawlatch(3).Unhookthelatchandopenthe
roof.
RAIL18SP01194AA3
