Miller Nitro 7380 - Truss Boom or Spray Air Boom - Grease - Truss or Air Boom

392 pages

Save Page as PDF

To Next Page

To Previous Page

7-MAINTENANCE

TrussboomorSprayAirboom-Grease—TrussorAirboom

NOTE:Tolubricatetheboomttingsitmaybenecessarytolowerand/orunfoldtheboom.UseNEWHOLLAND

AMBRAGR-9MULTI-PURPOSEGREASEonallttings.

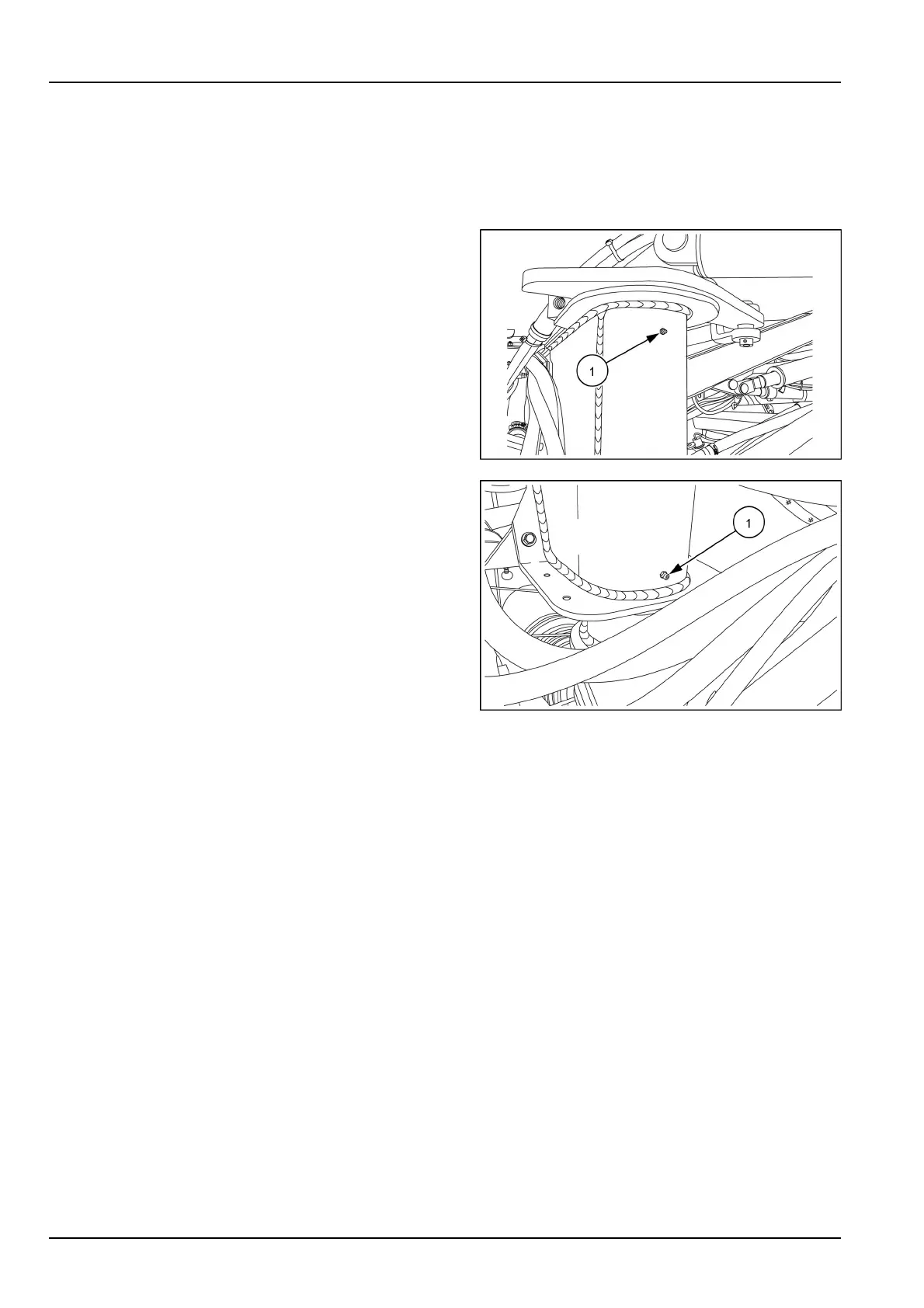

Primaryboomswingpivots

Locatetheprimaryboomswingpivotsoneachsideof

thecenterboomsection.Locatethetwogreasettings

(1)perside(oneintheupperbushingandoneinthe

lowerbushing).Cleanoffthegreasettingsbeforeat-

tachingthegreasegun.Greaseuntilgreasecomesout

ofthetopandbottomofthepivot.Wipeupanyexcess

grease.

RAIL15SP00901AA1

RAIL15SP00902AA2

7-50
