SprayAirboomoperation
Priortooperationofthesprayairsystem,thesprayairboommustbesetup.Refertothesprayairboomsetup
sectionthatfollows.

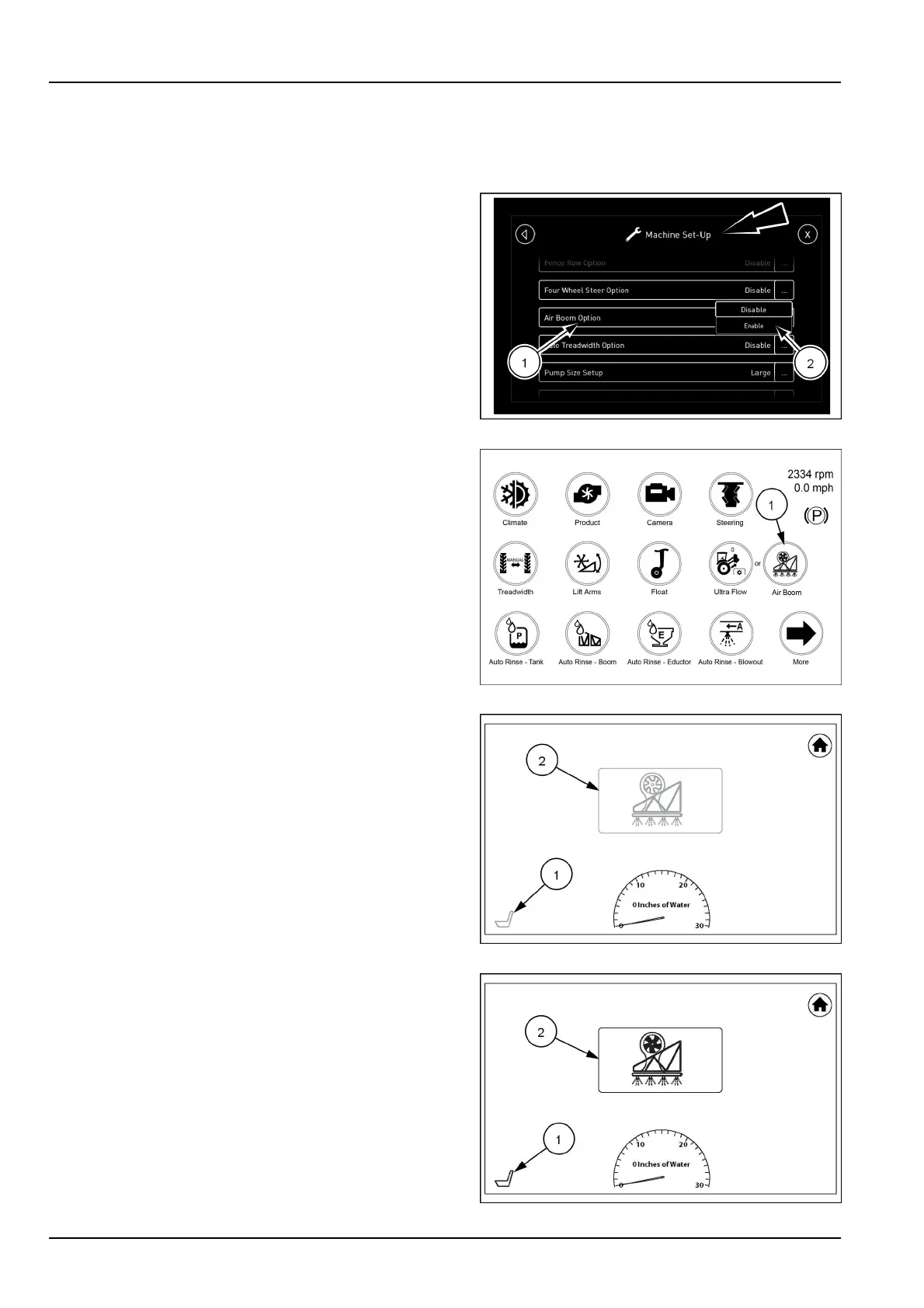

1.FindtheAirBoomoption(1)ontheMachineSet-Up
page.Touchenable(2)toactivatethesystem.
NOTE:Iftheairboomoptionhasnotbeendisabled,there
isnoneedtoenabletheairboomeachtime.
RAIL18SP00047AA1
2.ReturntotheHomepage.TouchtheAirBoomicon
(1).TheAirBoompagewilldisplay.
RAIL18SP00742FA2
3.TheAirBoomscreenwilldisplaywiththeoperators
seaticon(1)andtheAirBoomicon(2)greyed-out,
indicatingthatthesystemisnotactive.
RAIL18SP00060AA3
4.Sitintheseatandtouchtheseaticon(1).Theseat
iconwillturngreenandairboomiconturnblueandbe
active.T ouchairboomicon(2)tobringupconrma-
tionscreen.
NOTE:Iftheoperatorleavestheoperatorsseatwiththe
systemrunning,thesystemwilldeactivate.Theoperator
willneedtositintheseatagain,inordertore-activatethe
system.
RAIL18SP00059AA4
