6-WORKINGOPERATIONS

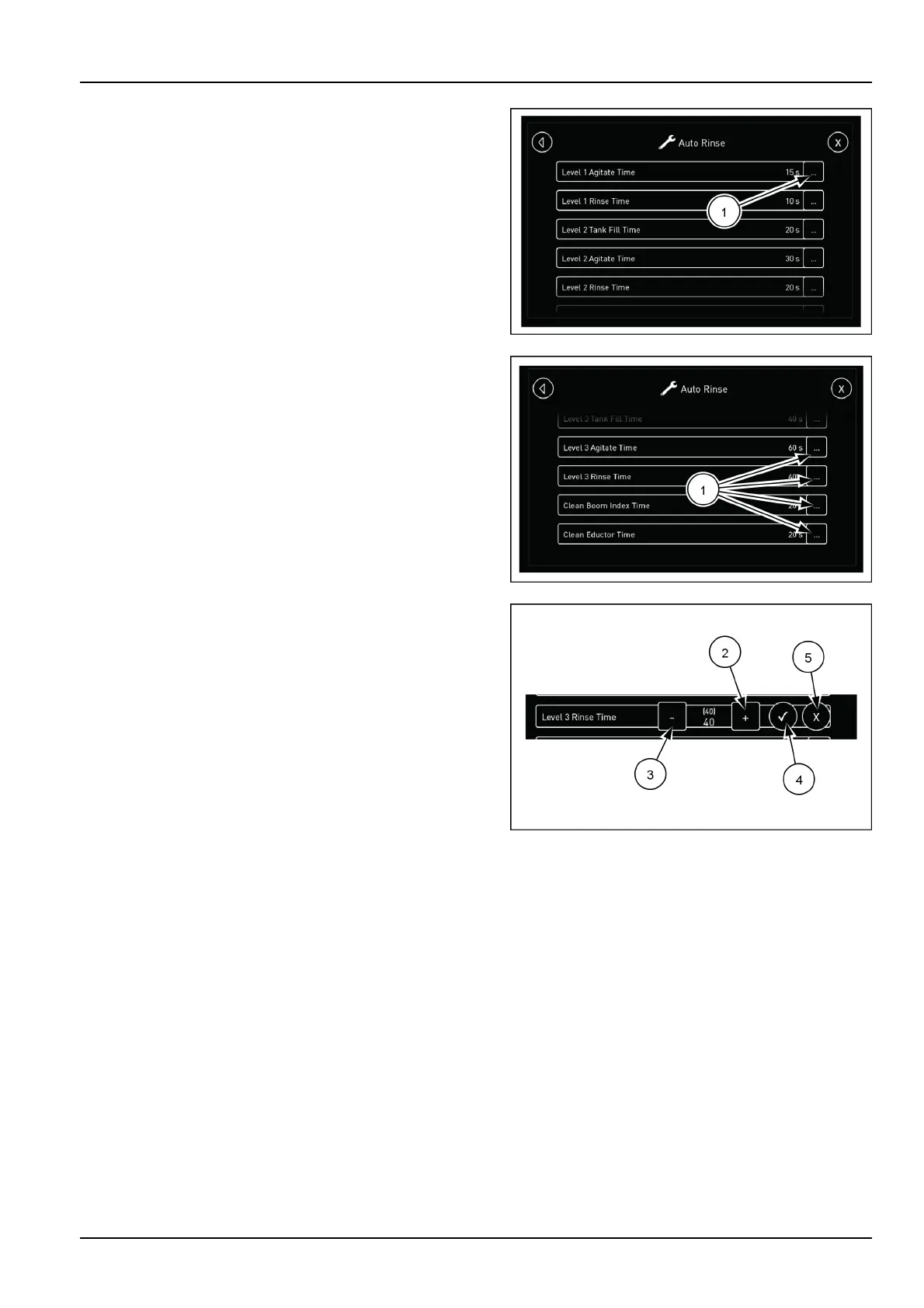

TheAutoRinsescreenisascrollscreen.Usethenger

swipemethodtoscrollthroughthemenu.Whenthelevel

andcategorytobechangedislocated,touchthaticonat

theright-handside(1)tochangetheduration.

Thechangingscreenwillappearwherethedurationcan

beincreasedbytouchingthe(+)(2)ordecreasedby

touchingthe(-)(3).

Touchthecheckmark(4)tolockthesettingin.

Touchthe(X)icon(5)toclosethesettingscreen

RAIL17SP01647AA5

RAIL17SP01648AA6

RAIL17SP01649AA7

6-67
