3-CONTROLSANDINSTRUMENTS

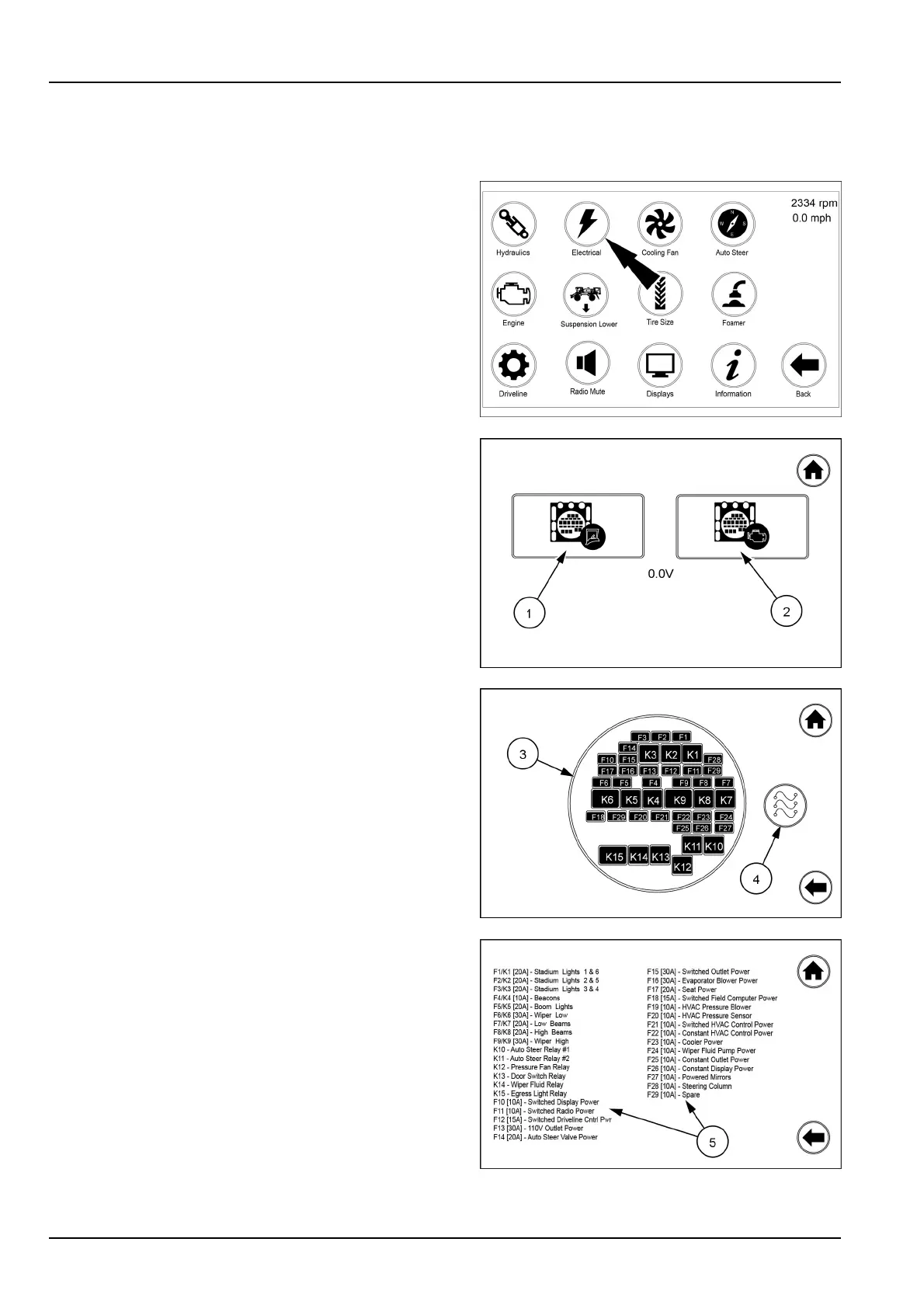

Electricaliconandscreens
Cabfuseandrelayblock
Fromthearmrestdisplaysecondhomepagetouchthe
electricalicon.
Thisscreenisamonitoringscreenforthefuseandre-
layblocks.Fromtheelectricalscreenyoucanselectthe
separatefuseandrelayblocksbytouchingthecab(1)or
engine(2)fuseandrelayblocks.Touchthecabiconto
bringuptheactualfuseandrelayblock(3).T ouchthe
icon(4)totherightofthefuseandrelayblocktobringup
alistofthefusesandrelays(5)andwhattheyprotect.
Relaysshowninthefuseandrelayblockwillturngreen
whenactive.
RAIL18SP00743FA1
RAIL17SP00190AA2
RAIL17SP00191AA3
RAIL18SP00382AA4
3-76
