Miller Nitro 7380 - Battery Jump Starting Posts

7-MAINTENANCE
Batteryjumpstartingposts
Therearebatteryjumpstartingpostsundertherearen-
ginebellypandoor.Unlatchandopenthedoor.Thebat-
teryjumpstartingpostsarelocateddirectlybelowthebat-
teries.Besuretoreplacetherubberprotectivecapswhen
notusingtheposts.

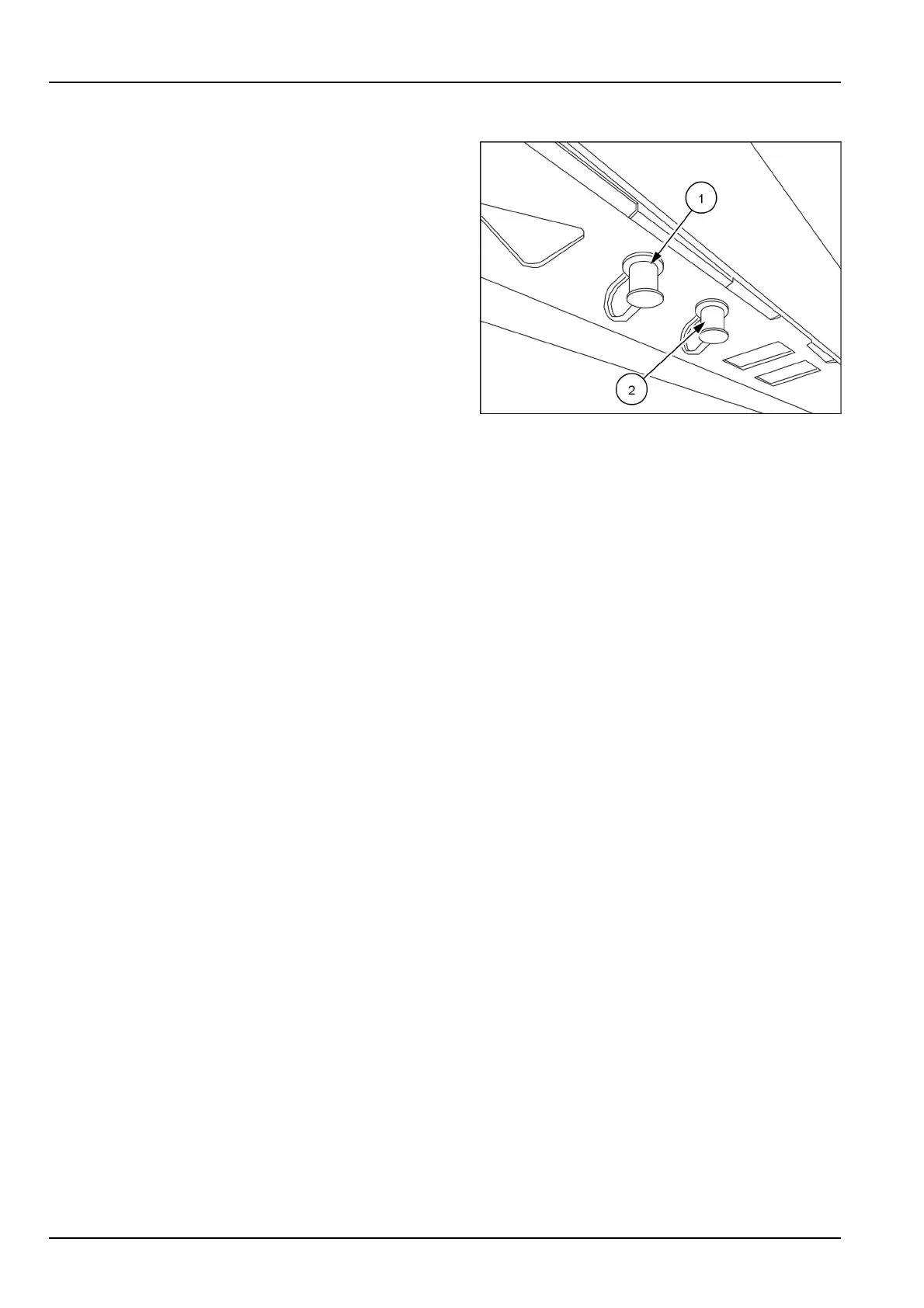

RAIL14SP01018AA1
Usethefollowingproceduretoconnectabatterychargerora12Vexternalpowersourcetotheseposts.
1.Removetheplasticcoversfromthepositive(1)andnegative(2)posts.
NOTICE:Neverconnecta24Vsupplytothejumpstartingposts.
2.Connectthepositivecablefromthechargeror12Vpowersourcetothepositivejumpstartingpost(1).
3.Connectthenegativecablefromthechargeror12Vpowersourcetothenegativejumpstartingpost(2).
4.Ifbooststarting,startthesprayerinthenormalmannerwhilesittingintheoperator’sseat.
5.Afterthesprayerisrunning,disconnectthenegativecablerstandthenthepositivecable.
6.Installtheplasticcoversonbothjumpstartingposts.
