3-CONTROLSANDINSTRUMENTS
Joystickcontrolhandle
Boomcontrolfunctions
Thejoystickcontrolhandleisusedtocontrolboomfunc-
tionsaswellasspeedanddirectionoftravel.Thejoy-
stickcontrolhandlealsocontrolstheautosteeron/off(if
equipped)andtheoptionalfoamer.

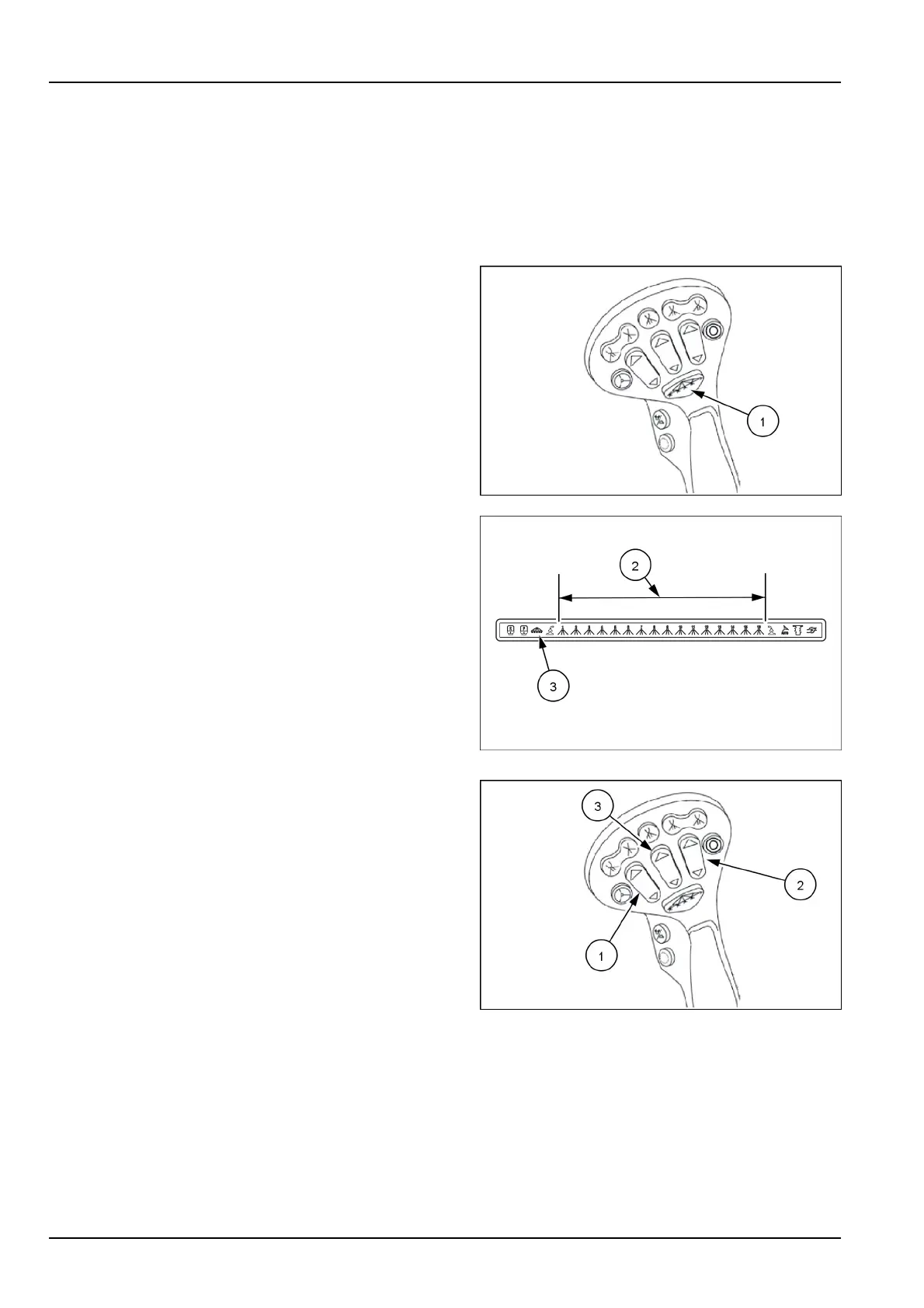

Thefaceofthejoystickhasseveralbuttonsthatareused
tocontrolboomfunctions.
Masteron(1):WhentheMasterbuttononthejoystick
ispushedtoactivatetheboomfunctionsthemasteron
buttonwillturnonalltheboomsections.Theboomsec-
tionicons(2)onthefrontoverheaddisplaywillilluminate
aswellastheboommastericon(3).Whenthemaster
onbuttonispushedagain,itwillshutoffalltheboom
sections.Whenthebuttonispushedthebuttonwillturn
“Green”showingthatitisactive.Whenturnedoffthebut-
tonwillchangebacktored.
RAIL17SP00391AA1
RAIL17SP00309FA2
Leftboomtiltupanddown(1):Tiltstheleftboomupor
down.Thetopofthebuttonwilltilttheboomupandthe
bottomofthebuttonwilltilttheboomdown.
Rightboomtiltupanddown(2):Tiltstherightboomup
ordown.Thetopofthebuttonwilltilttheboomupand
thebottomofthebuttonwilltilttheboomdown.
Centersection(liftarms)raiseandlower(3):Raisesor
lowersthecentersectionoftheboom.Thetopofthe
buttonwillliftthecentersectionupandthebottomofthe
buttonwilllowerthecentersection.Theliftarmscanalso
beraisedandloweredfromtheremotekeypadlocated
onthesideofthellsnorkelundertheframe.Engages/
disengagestheoatcircuitifequippedandactive.
RAIL17SP00391AA3
3-32
