6-WORKINGOPERATIONS

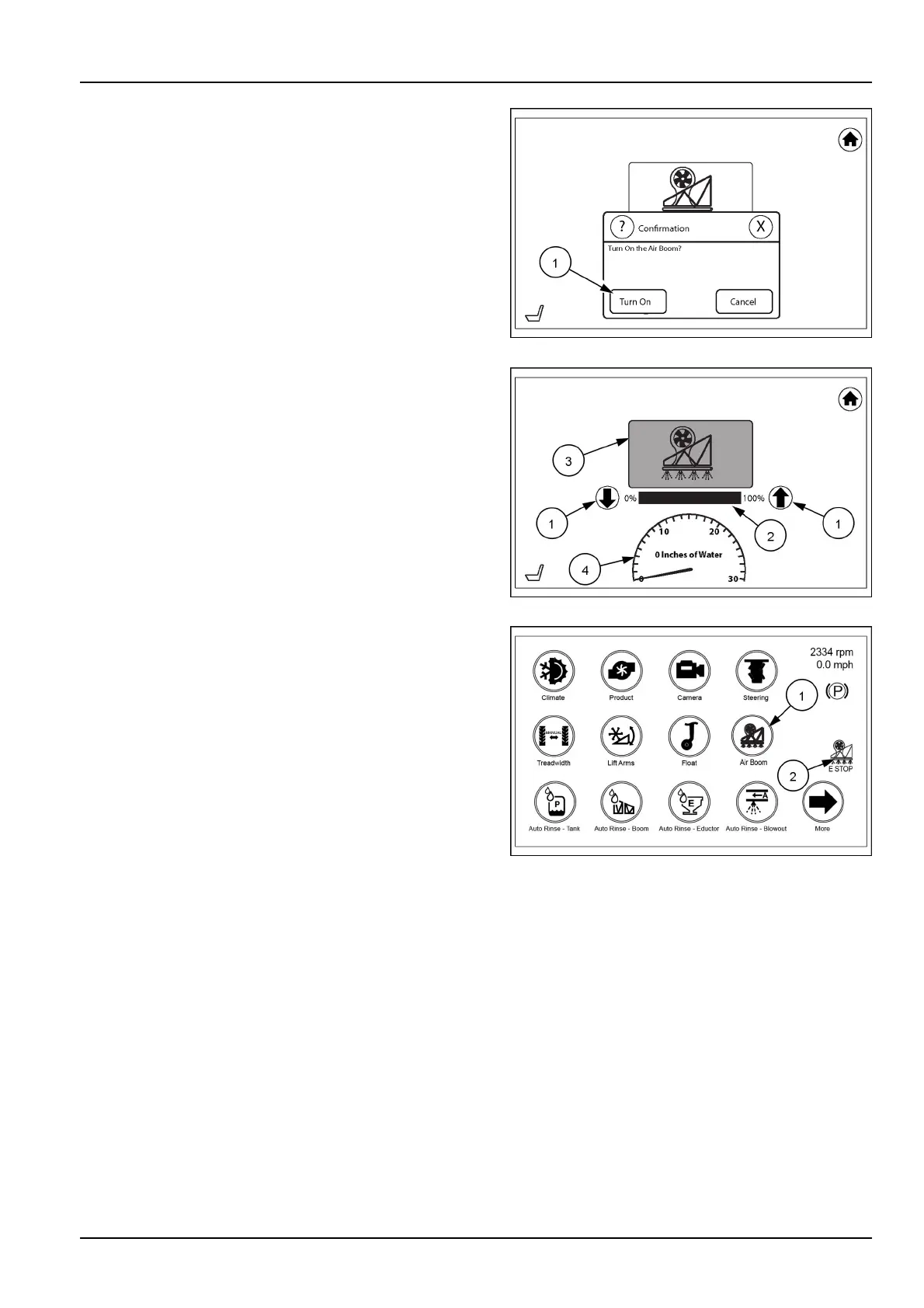

5.TouchtheTurnOnbutton(1).
RAIL18SP00061AA5
6.Thepressureadjustmentscreenwilldisplay.Theup
anddownarrows(1)andthepressureindicatorbar
(2)willappear,aswellasthesprayairicon(3),which
willbehighlightedyellow.Usethearrowstoadjust
pressure.Whenthepressureisadjusted,thepressure
indicatorbar(2),andthepressuregauge(4)willmove
totheadjustedpressurelevel.Touchthesprayairicon
tobringupHomescreen.
RAIL18SP00062AA6
7.TheHomescreenwilldisplaytheairpressure(0)as
setonthepressureadjustmentscreen(1).Touchthe
airboomicontoshutoff,ortouchtheE-STOPicon(2)
foremergencyshutoff.
NOTE:OnthelowerportionoftheAirBoomicon,anum-
berrepresentingsystemsetpressurewillbedisplayed.
Thispressurewillchangeastheairpressureinthesys-
temchanges.
NOTE:Theairpressuresettinginthesystemwillbemain-
tainedwhenthesystemisshutoffandturnedbackon.
RAIL18SP01012AA7
Sprayairboomsetup
Dial-A-Dropchart
To“Dial-A-Drop”withtheSpray-Airairnozzle,adjustthepressuregaugeasindicatedonthedisplayusingthechart
below.Adjustthepressurewiththepressureadjustmentknob.
Todialinaspecicdropletsize,rstidentifytheclosestlinerateinGallonsperacre(GPA)fortheproductbeing
applied.Second,choosethetargetdropletsize(diameter)fromtherangeontheleftofthechart.Third,setthe
pressuregaugetotheairsettingshownonthebottomofthechart.
NOTE:Thetargetdropletsize/diameteristheVolume
MedianDiameter(VMD).Itisanaverage.Halfofthe
dropletswillbetheVMDorlarger,andhalfofthedroplets
willbetheVMDorsmaller.WiththeSpray-Airnozzle,
90%ofthesprayvolumetypicallycontainsdropletswithin
100micronsofthetargetsize(VMD),anexceptionally
tightandaccuraterange.
6-69
