3-CONTROLSANDINSTRUMENTS

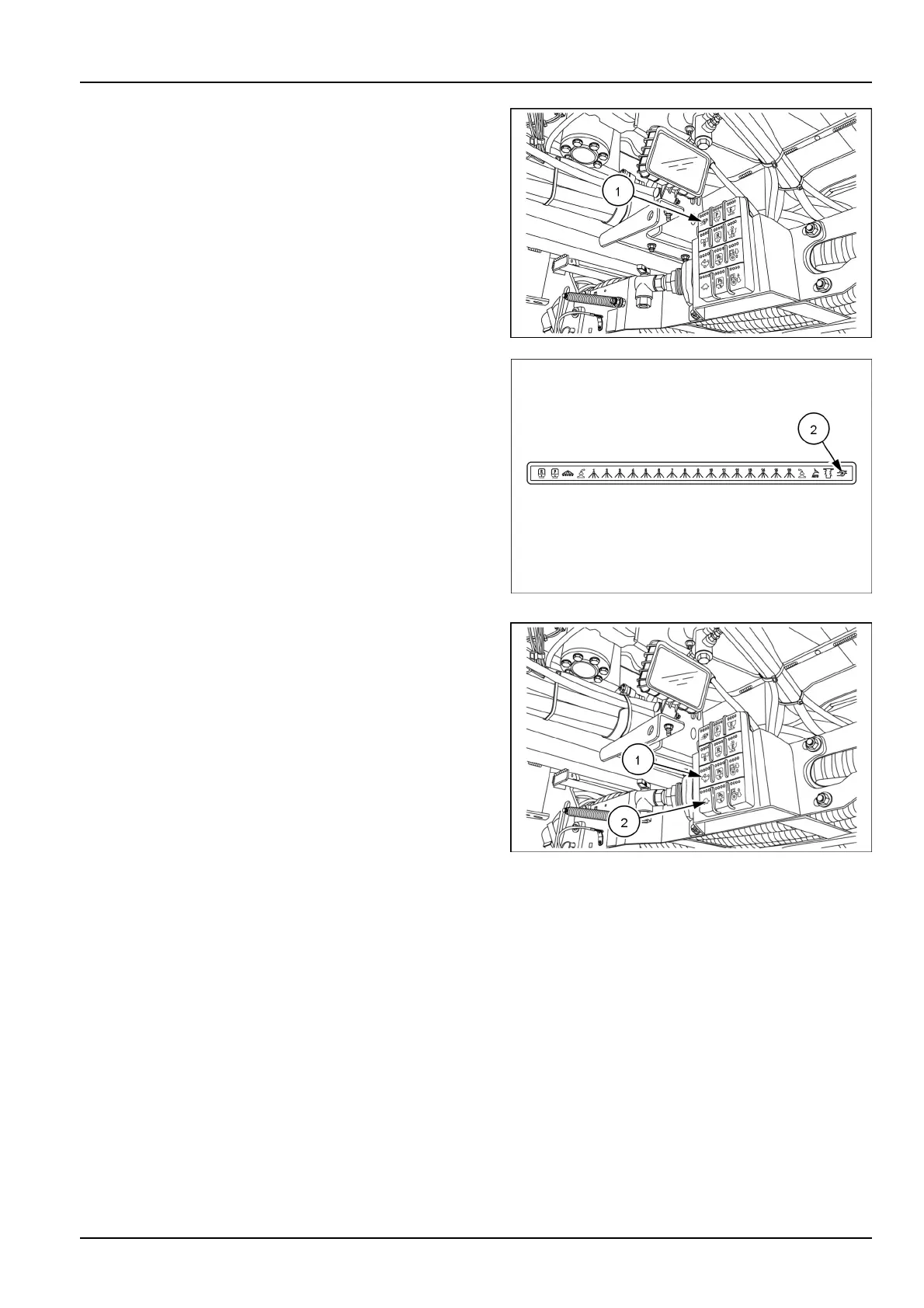

Remoteproductpumpon/offswitch
NOTICE:Toavoiddamagetotheproductpump,never
runthepump“Dry”withoutliquidinthepump.
Theproducttanksumporrinsetanksumpmustbeopen
beforeturningproductpumpon.
Theproductpumpcanalsobeactivatedfromoutsidethe
cab.Pushtheproductpumpswitch(1)oncetoturnthe
pumpon.Whentheproductpumpison,thefourledlights
ontheswitchwillilluminateindicatingthatthepumpison.
Pushtheswitchagaintoturnthepumpoff.Whenthe
productpumpisturnedonthepumpicon(2)inthefront
overheadpanelwillilluminate.
RAIL17SP00859AA5
RAIL17SP00309FA6
Remotethrottlecontrolswitch
Theremotethrottlecontrolswitchallowstheoperatorto
changetheenginespeedfromoutsidethecab.Theen-
ginespeedcanbeincreasedbypushingthe“Rabbit”(1)
ordecreasedtoidlebypushingthe“Turtle”(2).Pressthe
“Rabbit”onceforhalfthrottle.Pressthe“Rabbit”twicefor
fullthrottle.Pressthe“Turtle”foridle.
