A7™ Operating Instructions 046-004667-00 5 - 17
Operations Ventilation Modes
Enter the Monitor mode by setting the Monitor softkey in Manual mode to On. When the
Monitor softkey is set to On, the Alarm softkey is disabled and set to Off automatically. When
Monitor is set to Off, the Alarm button restores to its settings before entering the Monitor mode.
When exiting Manual mode or discharging a patient, Monitor is set to Off.
When the system is working in Monitor mode, the flow, volume and pressure waveforms and
measured values are removed from the Waveforms tab. Only the CO
2
waveform and the CO
2
parameters remain on the Waveforms tab. The Rate as determined by the AG module displays in
the measured values area.
The current mode area displays Monitor when Monitor is On.

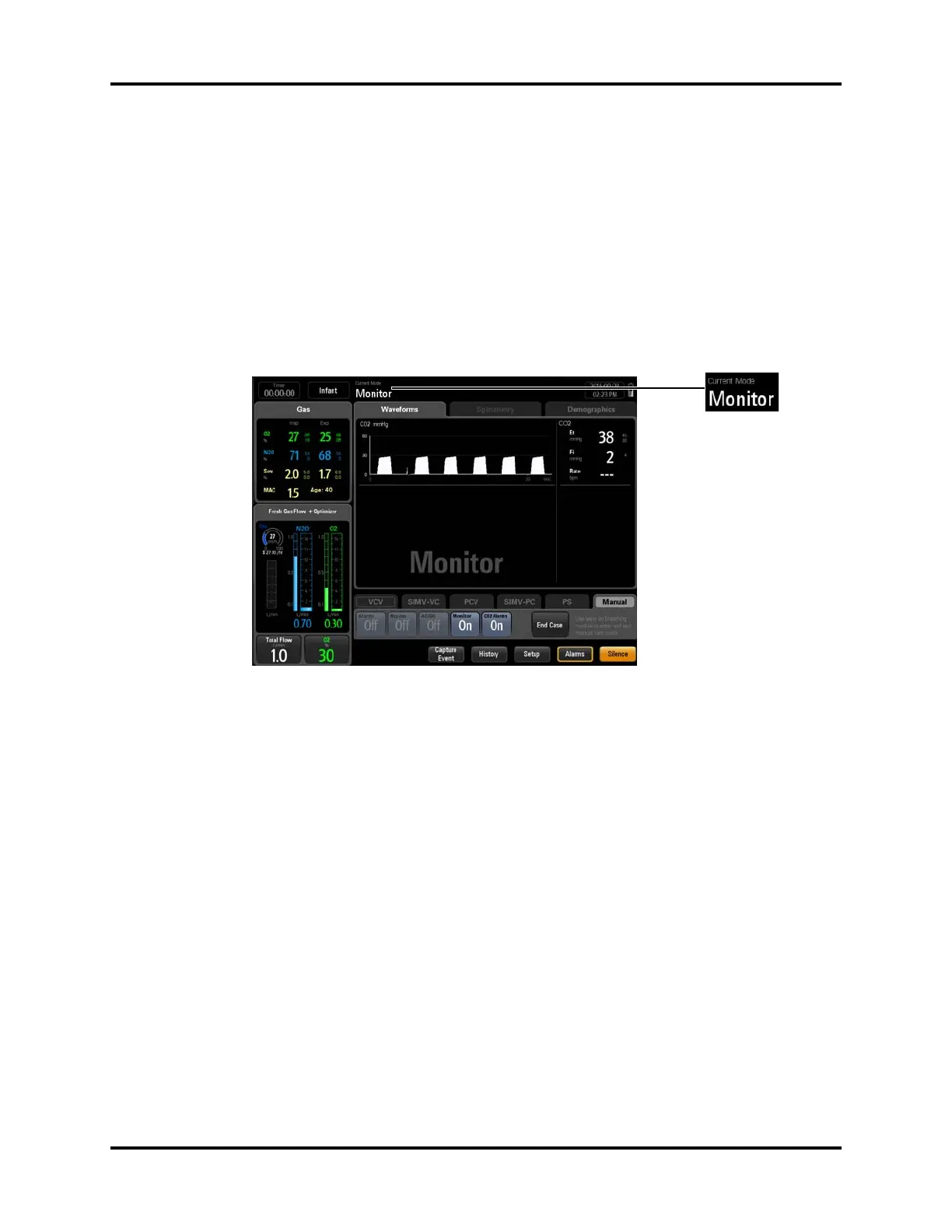

FIGURE 5-17 Monitor Mode
