Mindray A7 - Main Unit (Top View)

Physical Views Product Description
1 - 16 046-004667-00 A7™ Operating Instructions
1.2.5 Main Unit (Top View)

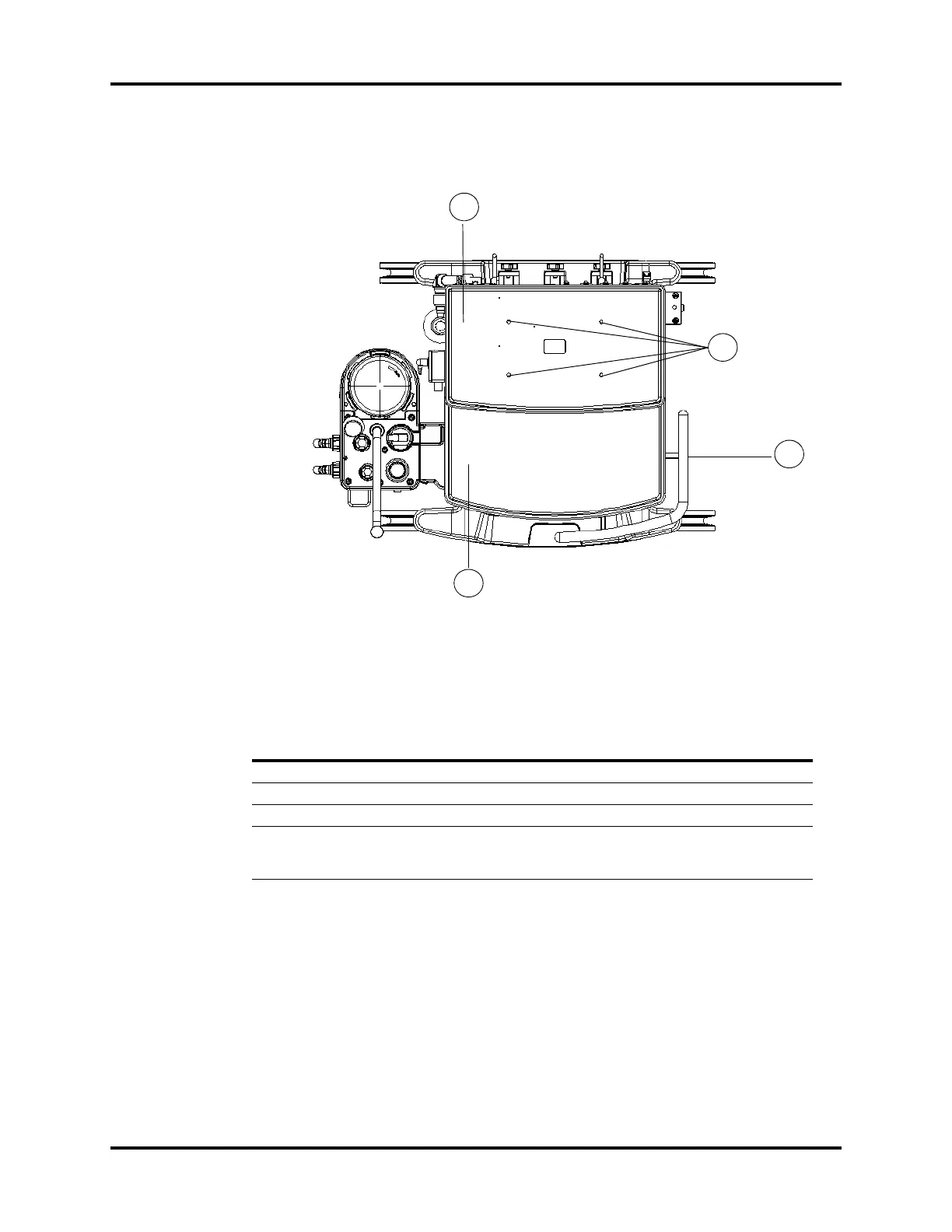

FIGURE 1-6 Main Unit (Top View)
PART(S) DESCRIPTION
E1 Top Shelf Top level surface
E2 Work Level Shelf Work Level surface (stainless steel)
E3 Handle Wrap-around metal bar used to assist moving the A7 device
E4 Mounting Holes Allows mounting of optional equipment to the top shelf
(i.e., DPM6 and DPM7 mounting plates and kits (see
section A.7 (page A-3) "Mounting Accessories").
Front
Rear
E1
E3
E2
E4
