Mindray A7 Operating Instructions

A7™ Operating Instructions 046-004667-00 1 - 15
Product Description Physical Views
1.2.4 Main Unit (Right View)

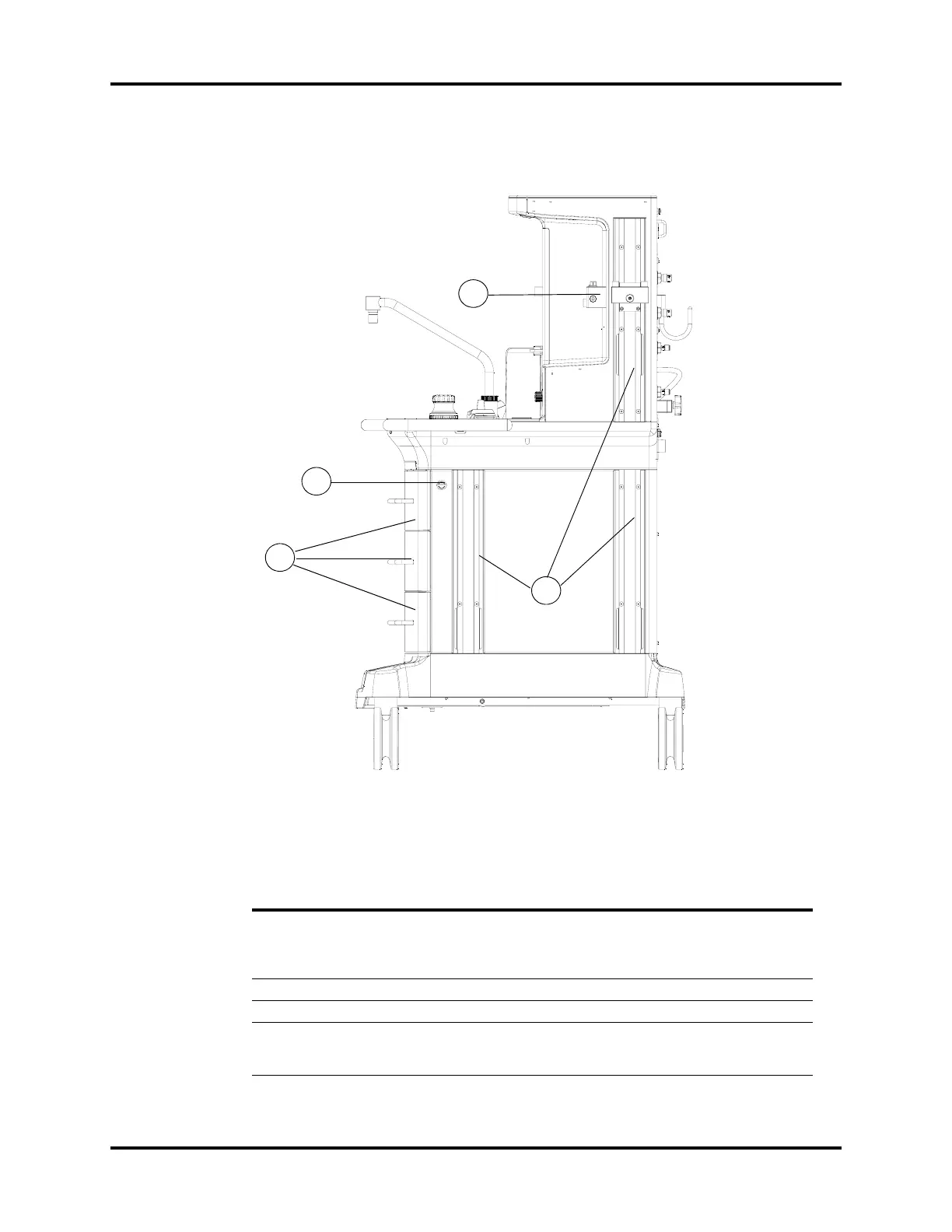

FIGURE 1-5 Main Unit (Right View)
PART(S) DESCRIPTION
D1 Vaporizer Mounting
Manifold / Mounting Bar
An interface for two/three Selectatec-type vaporizers to
mount in this location. Bar holds two/three (optional)
vaporizers. An interlock within the vaporizers provides for use
of one vaporizer to deliver one agent at a time.
D2 Key Lock Key and lock for securing the drawers
D3 Storage Drawers Drawers (3) for storage (lockable)
D4 Rail Mount Enables mounting of patient monitors and most standard
attachment arms for other devices. Rail mounts are on both
left and right sides of the A7.
D1
D2
D3
D4

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
