Ventilation Modes Operations
5 - 16 046-004667-00 A7™ Operating Instructions
5.5.10 Auxiliary Common Gas Outlet (ACGO) Mode
The system is configured with an electronically controlled ACGO, the system enters and exits
ACGO mode by setting the ACGO to On and Off on the screen.

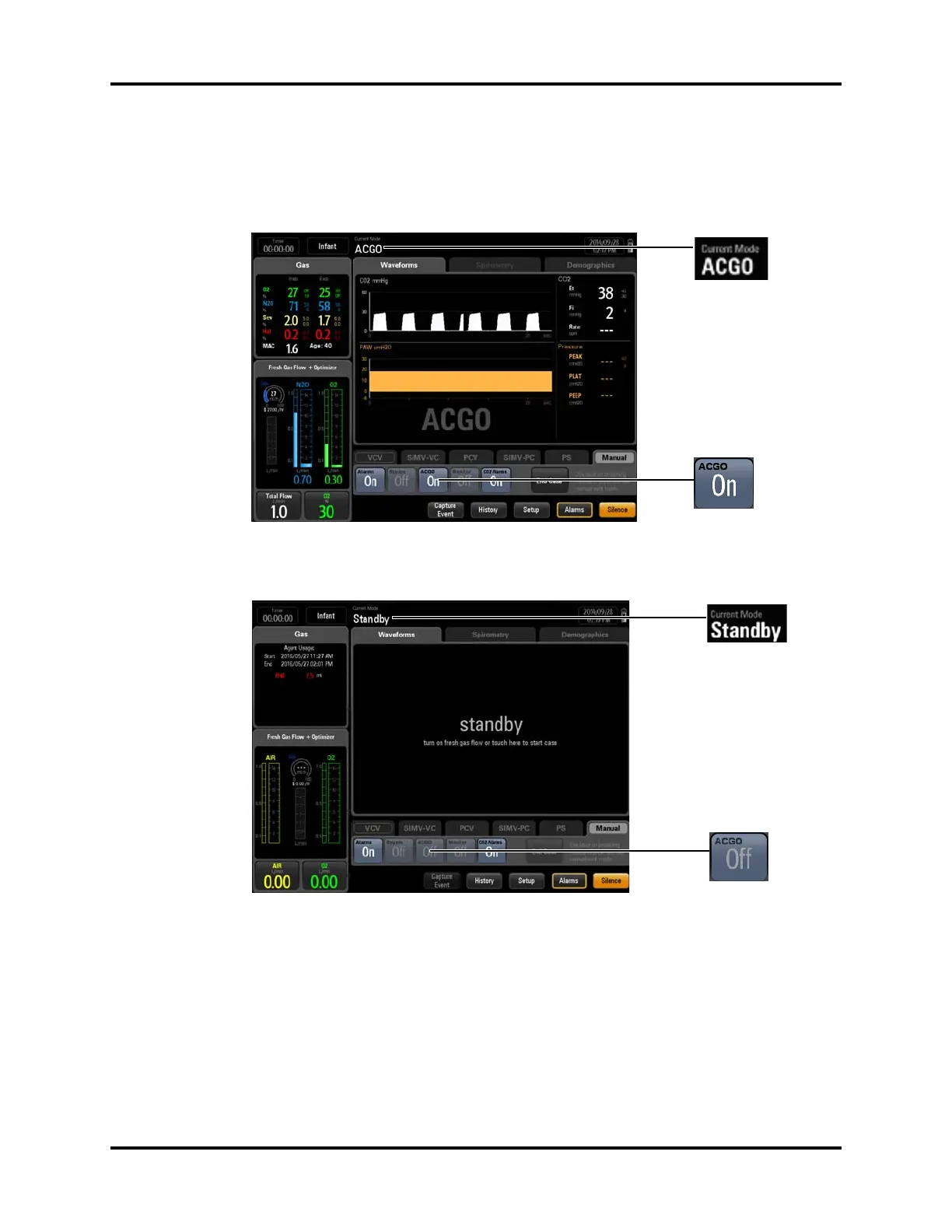

FIGURE 5-15 ACGO mode
FIGURE 5-16 Standby mode
5.5.11 Monitor Mode
Monitor mode is only available in the Manual ventilation mode when there is an AG module
connected to the A7. This mode turns off all ventilation related alarms.
NOTE: When Monitor mode is On, the Alarms button is disabled and set to Off.
A confirmation dialog displays when turning Monitor mode On or Off.
