Mindray A7 - Breathing System Block

Cleaning and Disinfection Maintenance
7 - 22 046-004667-00 A7™ Operating Instructions
7.9.10 Breathing System Block
1. Remove all of the following components from the breathing system block:
• Bellows Assembly
• Inspiratory and Expiratory Valves (all components)
•APL Valve
•PAW Gauge
• Bag Arm
• Absorber Canister
• Inspiratory and Expiratory Flow Sensors
2. Remove the absorber canister (see section 7.9.9 (page 7-19) "Absorber Canister").
3. Press and hold the buckle on the bypass assembly to take out the bypass assembly
downward.

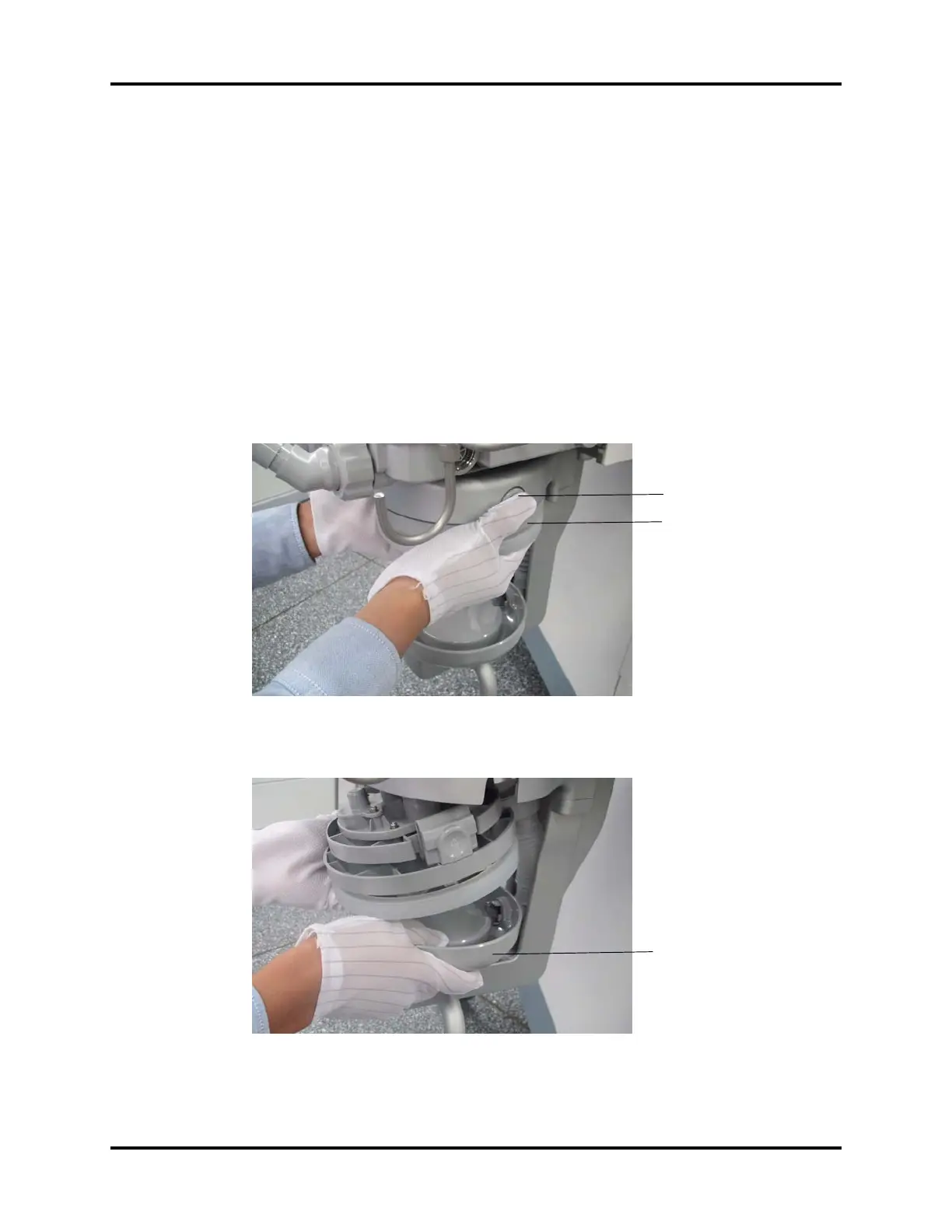

FIGURE 7-21 Remove Bypass Assembly
4. Pull out the canister bottom plate upward.
FIGURE 7-22 Remove Canister Bottom Plate
Buckle
Bypass Assembly
Canister Bottom Plate
