Mindray A7 Operating Instructions

Physical Views Product Description
1 - 12 046-004667-00 A7™ Operating Instructions
1.2.2 Main Unit (Rear View)

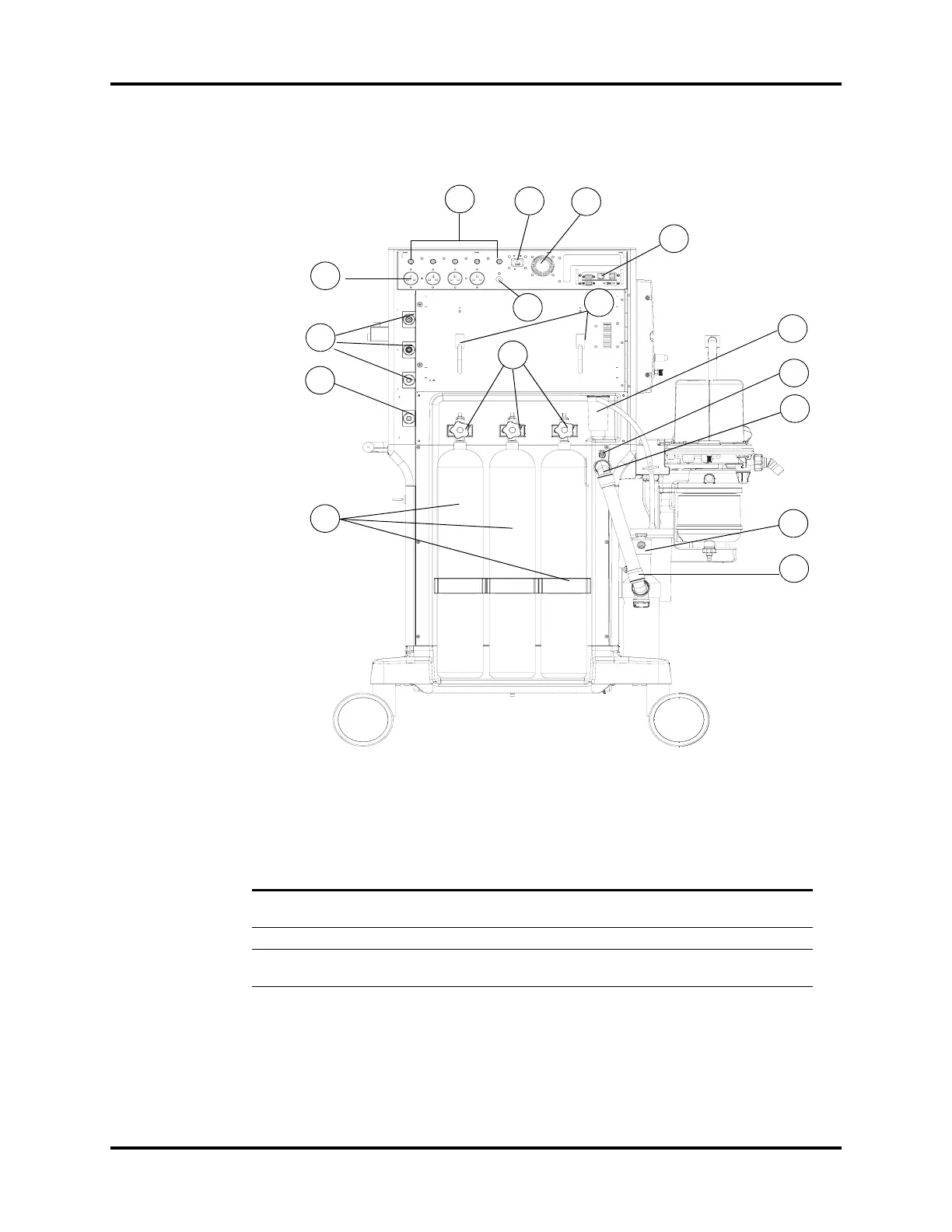

FIGURE 1-3 Main Unit (Rear View of Standard Cylinder)
PART(S) DESCRIPTION
B1 Circuit Breakers Breakers for each auxiliary outlet
3 A each (quantity 4), 10 A total (quantity 1)
B2 Mains Inlet Connects the mains power cord
B3 Exhaust Fan Forces air to cool electronics and prevent buildup of O
2
concentration. Do not block.
B5
B9
B14
B13
B8
B1
B6
B2
B7
B4
B12
B11
B3
B15
B10
B16

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
