Mindray A9 Service Manual

2-85
The continuous negative pressure suction subsystems consist of the negative pressure control
panel assembly, and pipeline negative pressure inlet assembly. The structural diagrams of the
assemblies are shown below.

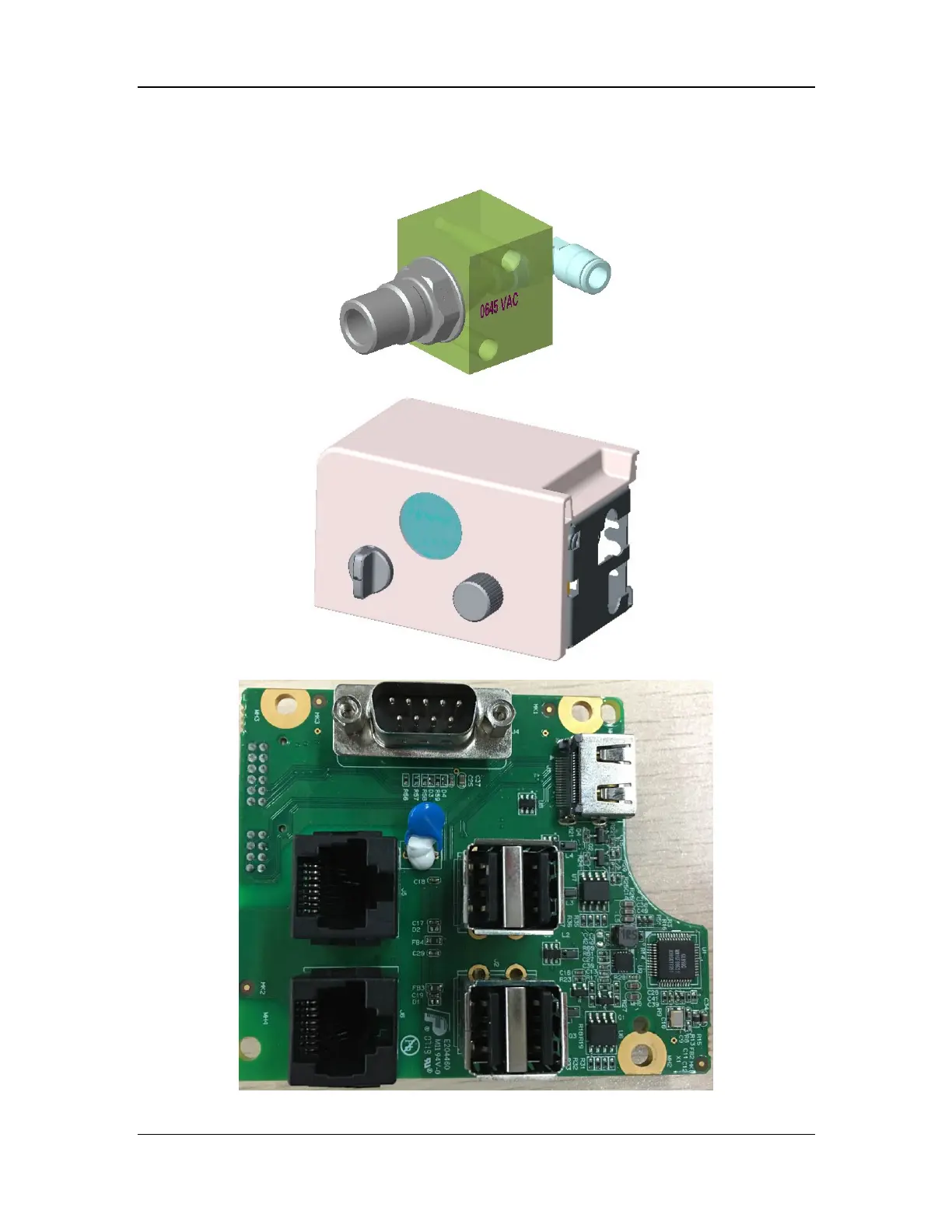

Figure 46 Structural diagram of the pipeline negative pressure inlet assembly
Figure 47 Structural diagram of the negative pressure control panel assembly
External I/O interface board (top view)

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
