Mindray A9 Service Manual

8-3
8.4 Disassemble the Bag Arm Assembly
8.4.1 Prepare for Disassembly
8.4.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 None.
8.4.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.

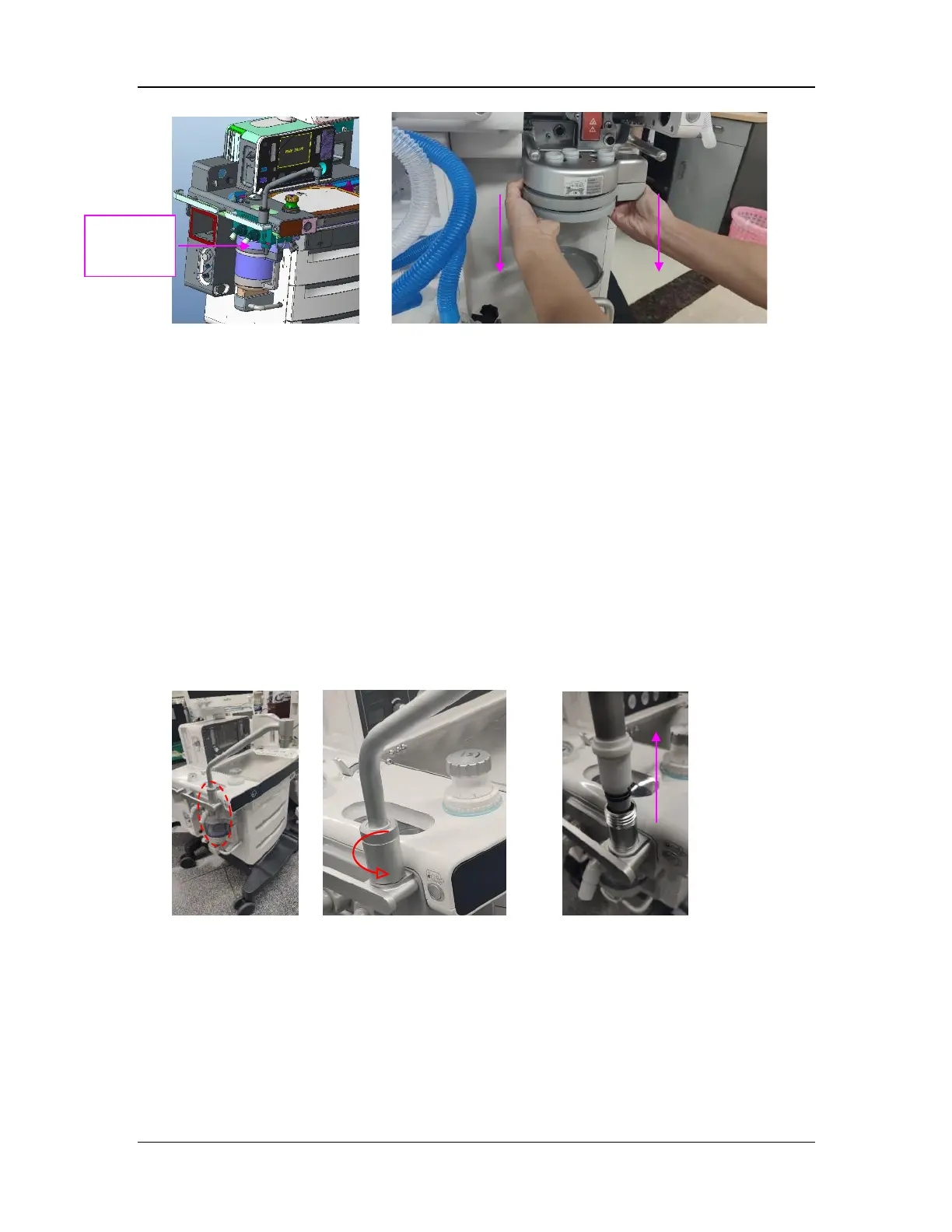

8.4.2 Remove the Bag Arm Assembly
1. Remove the locking nut counterclockwise and pull out the nut vertically.
2. Lift and remove the bag arm assembly.
8.5 Disassemble the Patient Circuit Assembly
8.5.1 Prepare for Disassembly
8.5.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 None.
8.5.1.2 Preparations
Before disassembly,
Bypass
assembly

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
