7.6.7 HFNC Test

Here you can check if the HFNC valves are working correctly.

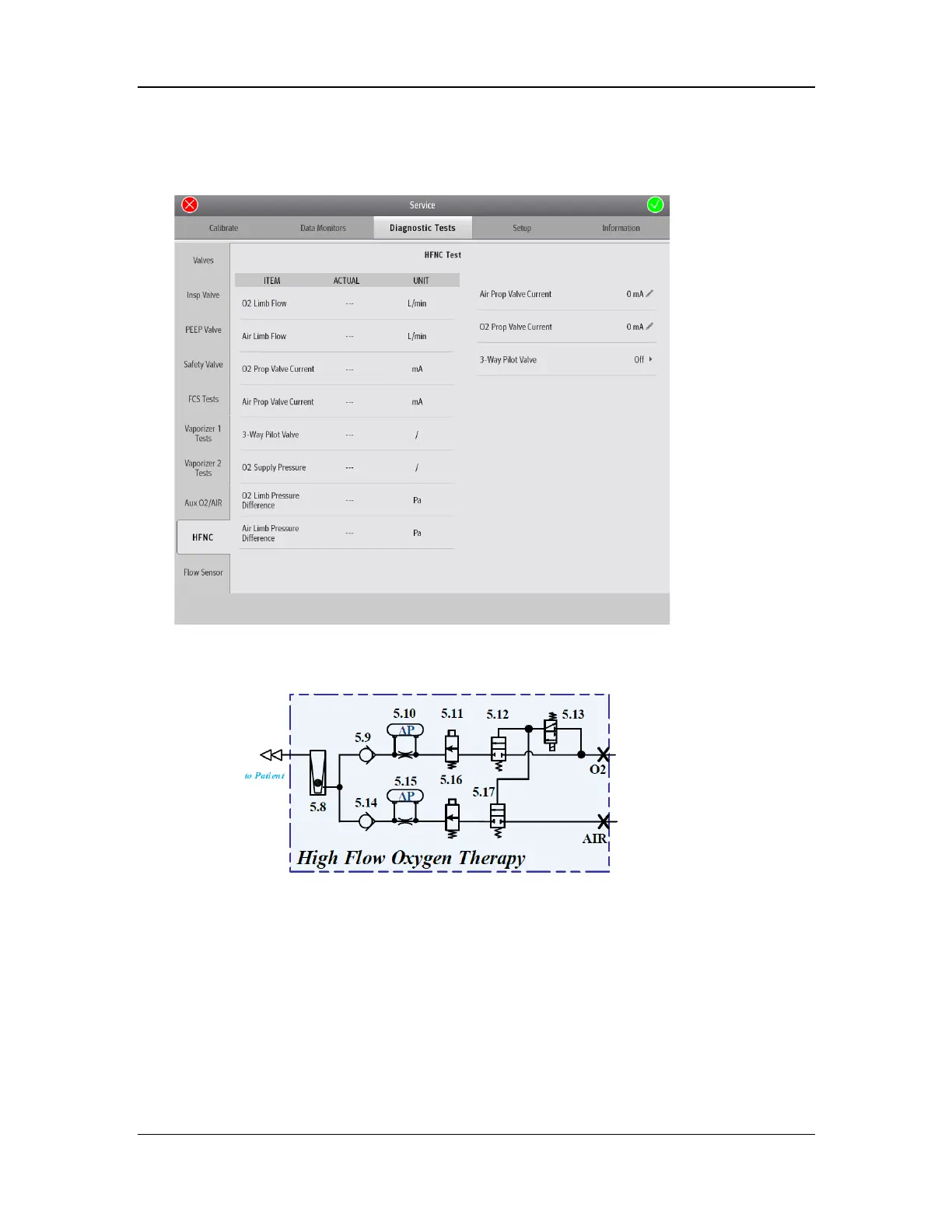

Select Setup > Service > Diagnostic Tests > HFNC.
