Mindray A9 - Disassemble the AGSS Assembly; Prepare for Disassembly; Remove the AGSS Assembly

8-31
2. Remove the three screws with the M5 hexagon screw spanner to remove the CO2 locking
assembly.
8.34 Disassemble the AGSS Assembly
8.34.1 Prepare for Disassembly
8.34.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.34.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.34.1.3 Pre-disassembly
1. Refer to 8.1.1Open the Service Door to open the service door.
2. Refer to 8.31Disassemble the Upper-Half Drawer Assembly and 8.32Disassemble the
Lower Drawer Assembly to remove the upper, middle, and lower drawers.
8.34.2 Remove the AGSS Assembly
1. Remove the four screws with the Phillips screwdriver.
2. Disconnect the pipeline and cables from the AGSS assembly and remove the AGSS
assembly.

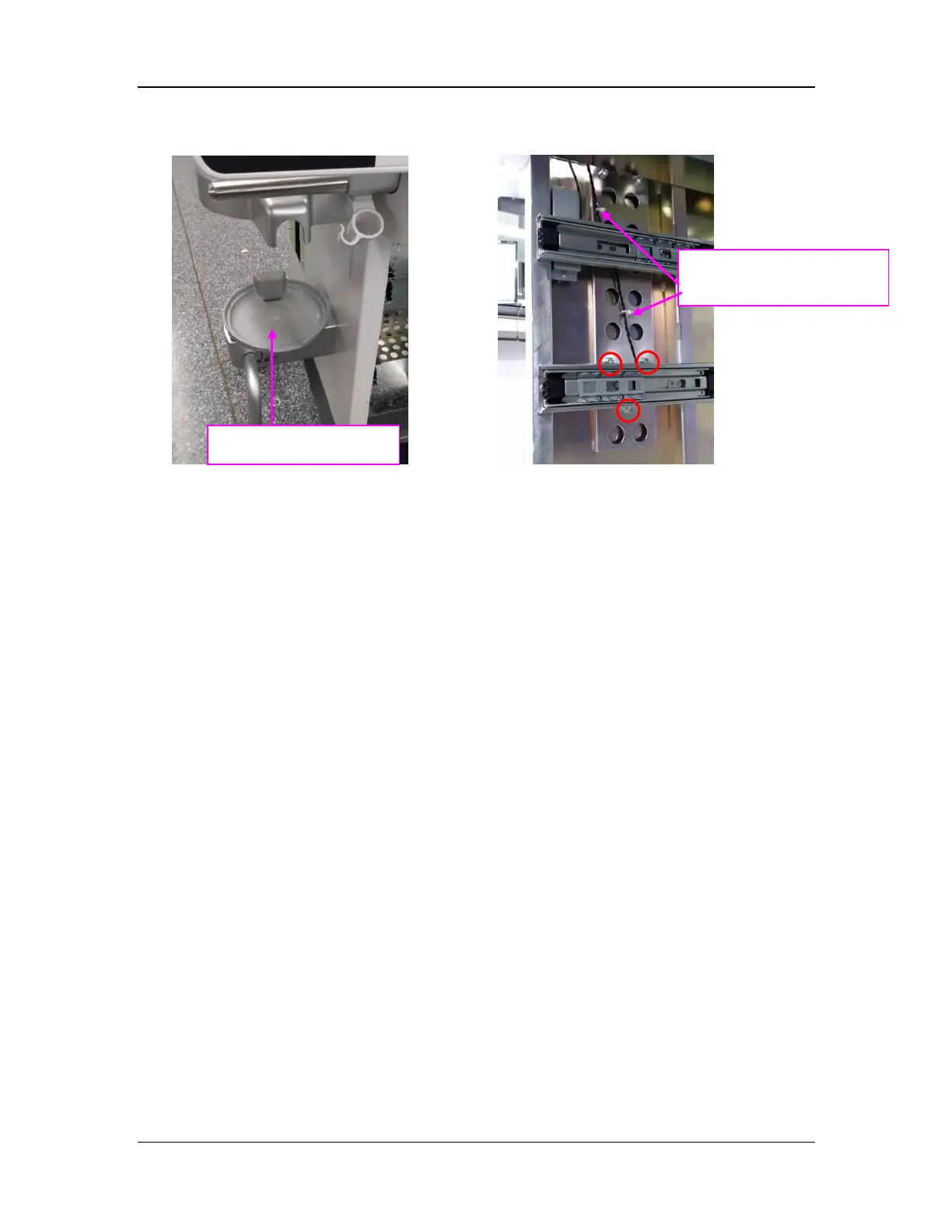

The cable strap and cable
are routed under the rails.
CO2 locking assembly
