Mindray A9 Service Manual

11-6

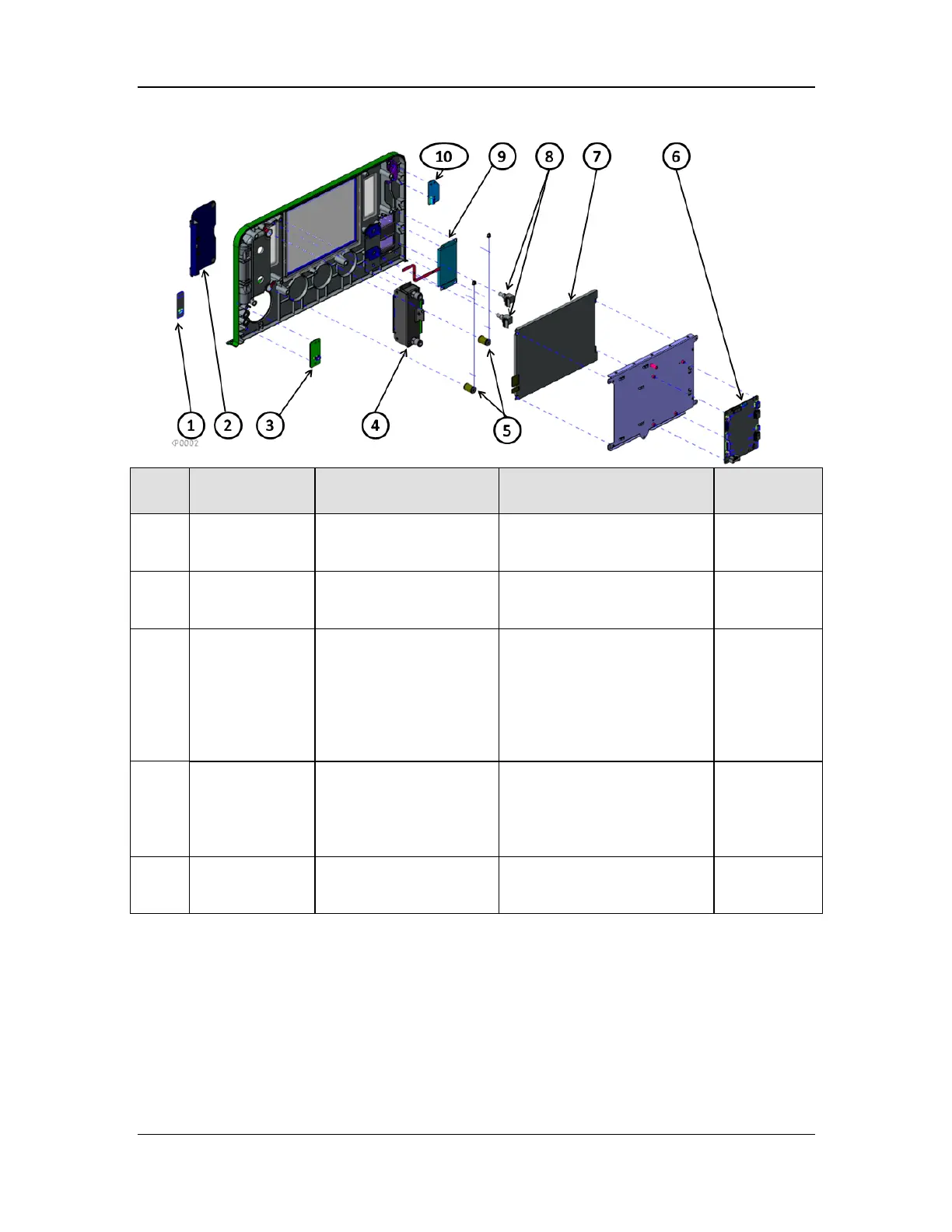

11.1.5 Instrument Panel Assembly
No. Name P/N Test Item After
Replacement
Remarks
1
BFCS switch
control board
PCBA
051-003212-00
5.6 BFCS function test;
5.7.1 Vaporizer Monitoring
Function Test
/
2
BFCS door
service kit
115-066824-00
5.6 BFCS function test;
5.7.1 Vaporizer Monitoring
Function Test
Two springs
are included.
3
Indicator light
board PCBA
051-001934-00
5.1 Power-on self-test.
Connect and disconnect the
AC power supply in turn, and
observe the status of the AC
indicator and battery
indicator;
5.7.1 Vaporizer
Monitoring Function Test
/
4
Backup
flowmeter
assembly (0645)
115-065006-00
5.6.1 Checking Needle Valve
Correspondence;
5.6.3 Accuracy confirmation
test; 5.7.1
Vaporizer
Monitoring Function Test
/
5 Electromagnet 024-001089-00
5.6 BFCS function test;
5.7.1 Vaporizer Monitoring
Function Test
/
