7-64

7.6.4 Safety Valve Test

Check whether the monitoring module and auxiliary module can open and close the safety valve

normally.

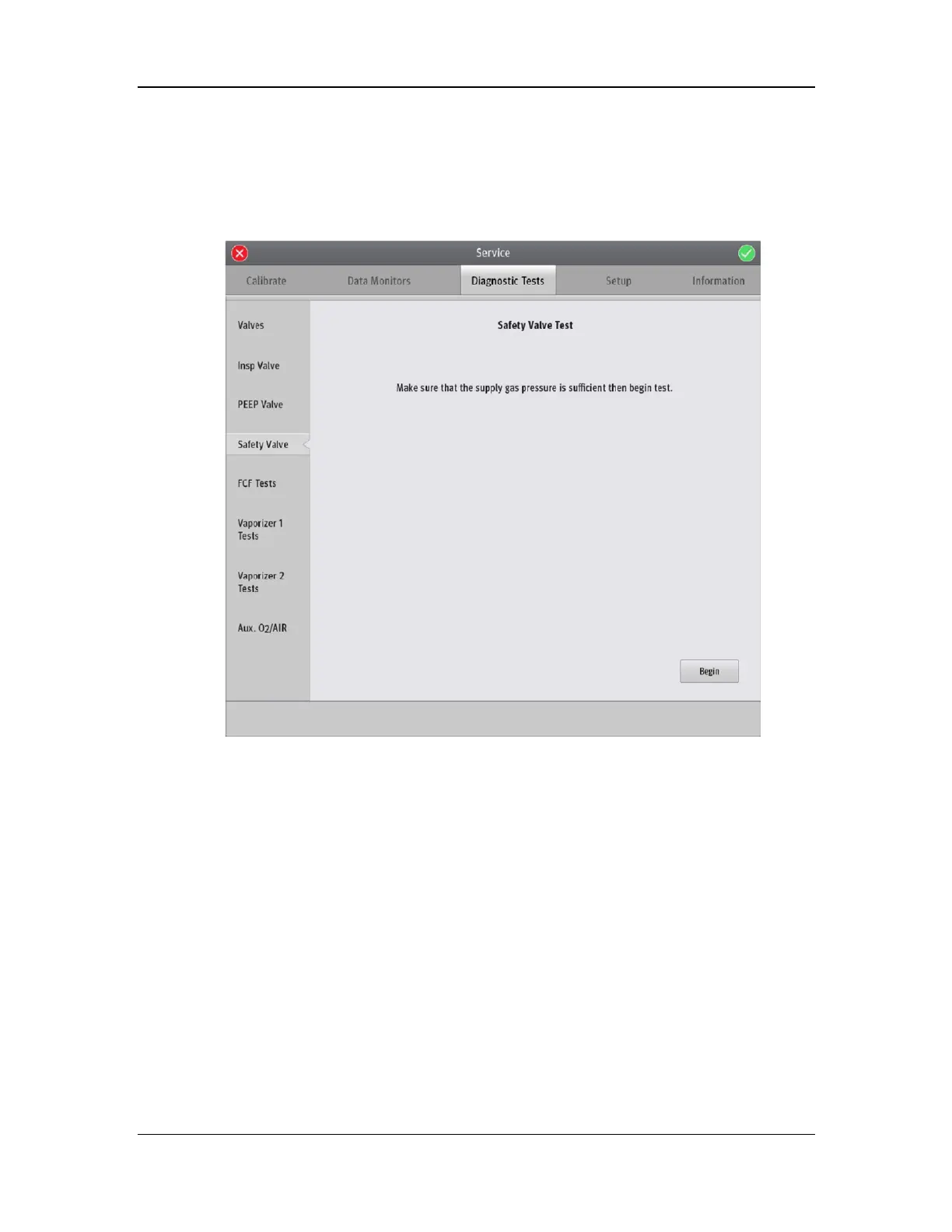

Select Setup > Service > Diagnostic Tests > Safety Valve.
