Mindray A9 Service Manual

8-11

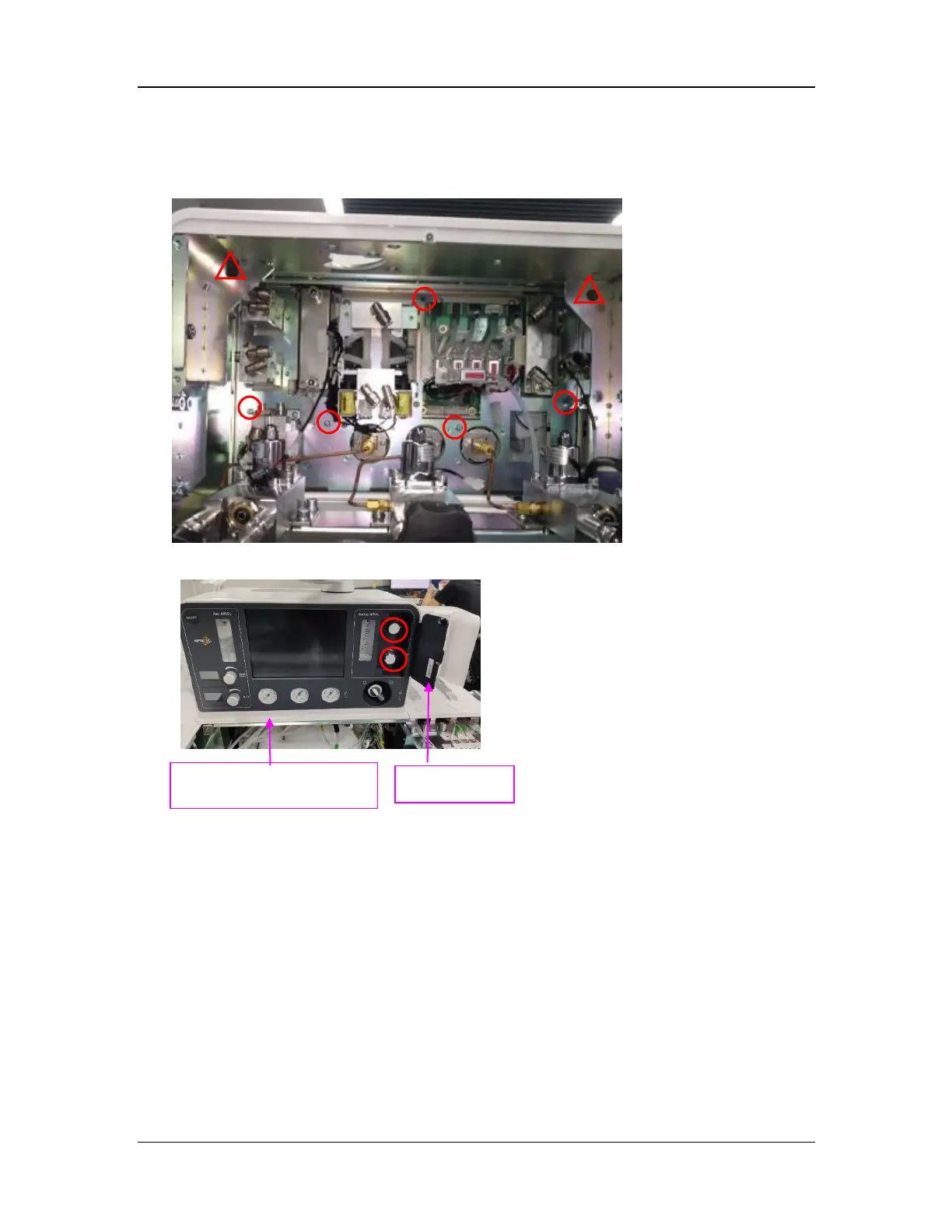

3. Disconnect the cables and tubes from the instrument panel assembly and remove the
assembly.
Figure A
Figure B
8.13.6 Remove the Upper-Left Cover Plate
1. Remove APL valve.
2. Remove the vacuum regulator - 2 screws to remove the cover and 4 screws from the inside.
3. Disconnect tubes 147 and 148b.
3. Remove the five screws from the upper-left cover plate with the Phillips screwdriver.
2. Disconnect the cables and tubes from the upper-left cover plate assembly of the work
surface and remove the assembly.
BFCS door
Instrument panel assembly

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
