8 Repair and Disassembly
8.1 Disassemble the O2 Cell Holder Assembly
8.1.1 Prepare for Disassembly
8.1.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 None.
8.1.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.1.2 Remove the O2 Cell Holder Assembly
1. Press the button of the O2 cell door to open the door.
2. Press the two protrusions and gently pull out the O2 cell holder assembly.
8.2 Disassemble the Sodalime Absorber Canister Assembly
8.2.1 Prepare for Disassembly
8.2.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 None.
8.2.1.2 Preparations
Before disassembly,

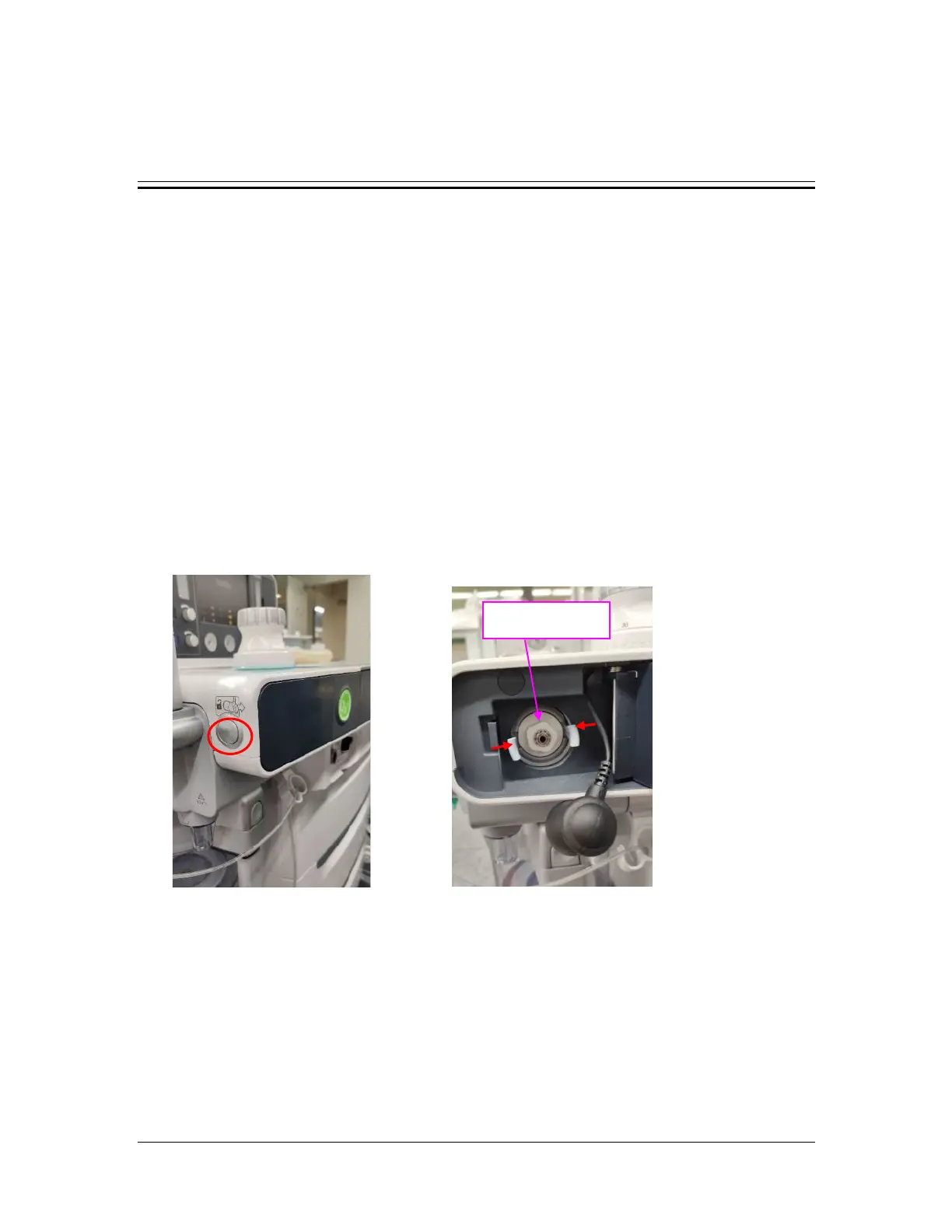

O2 cell holder
