11.5 Breathing Circuit Subsystem

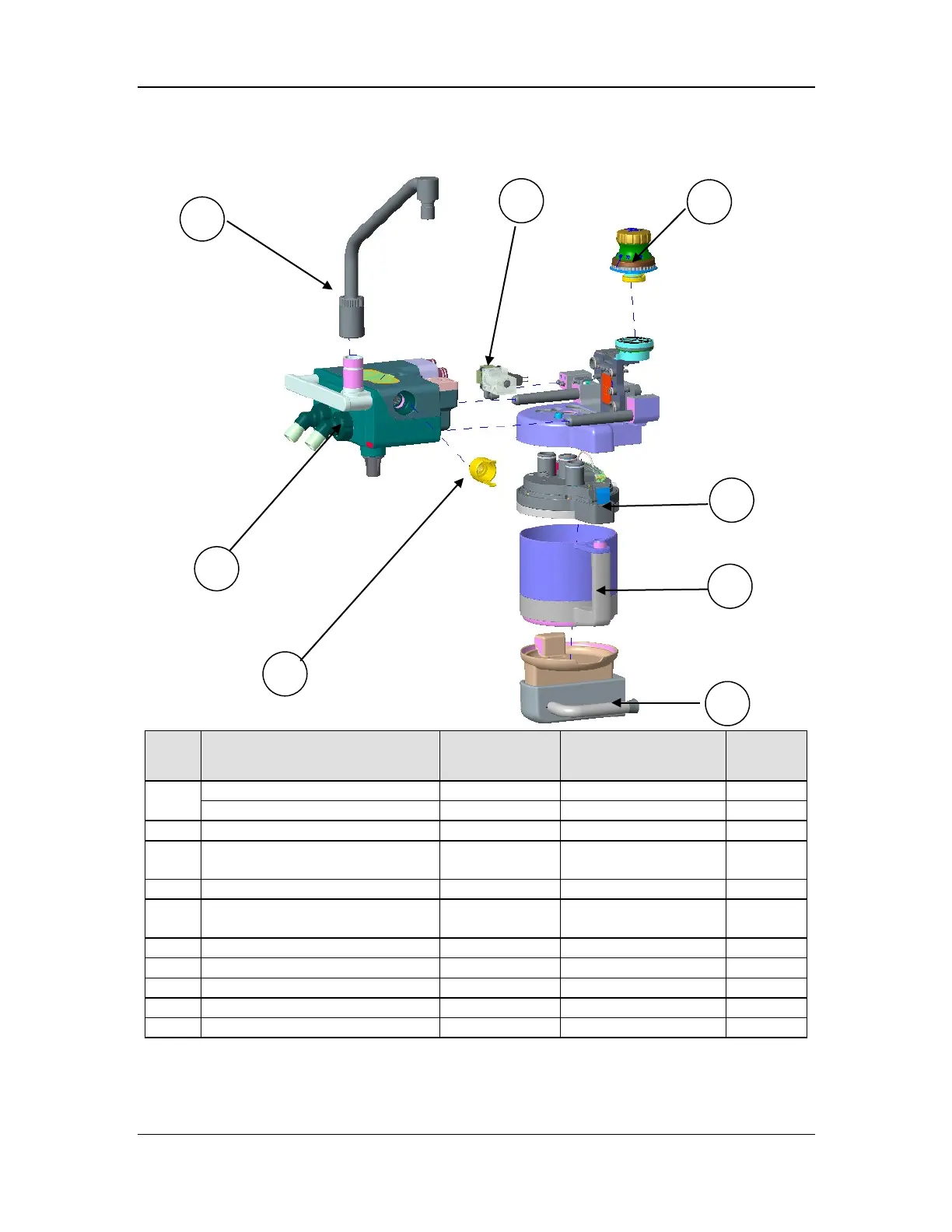

11.5.1 Patient Circuit Material Package
No. Name P/N
Test Item
After Replacement
Remarks
1
Bag arm assembly
115-048600-00
5.2 System Check
/
Flexible bag arm
115-048035-00
5.2 System Check
/
2
Auto/manual valve
115-064186-00
5.2 System Check
/
3 APL valve assembly 115-064061-00
5.10.2 APL valve test
5.2 System Check
/
4
Bypass assembly
115-066853-00
5.2 System Check
/
5
Sodalime absorber canister
assembly
115-066854-00 5.2 System Check /
6
CO2 Locking assembly
115-067919-00
/
/
7
O2 cell holder assembly
115-064181-00
5.2 System Check
/
8
Patient circuit assembly
115-066852-00
5.2 System Check
/
/
Inspiration flow sensor
115-041507-00
6.3.1 Flow calibration
/
/
Expiration flow sensor
115-041508-00
6.3.1 Flow calibration
/
3
4
8
1
2
7
5
6

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
