Mindray A9 Service Manual

6-46

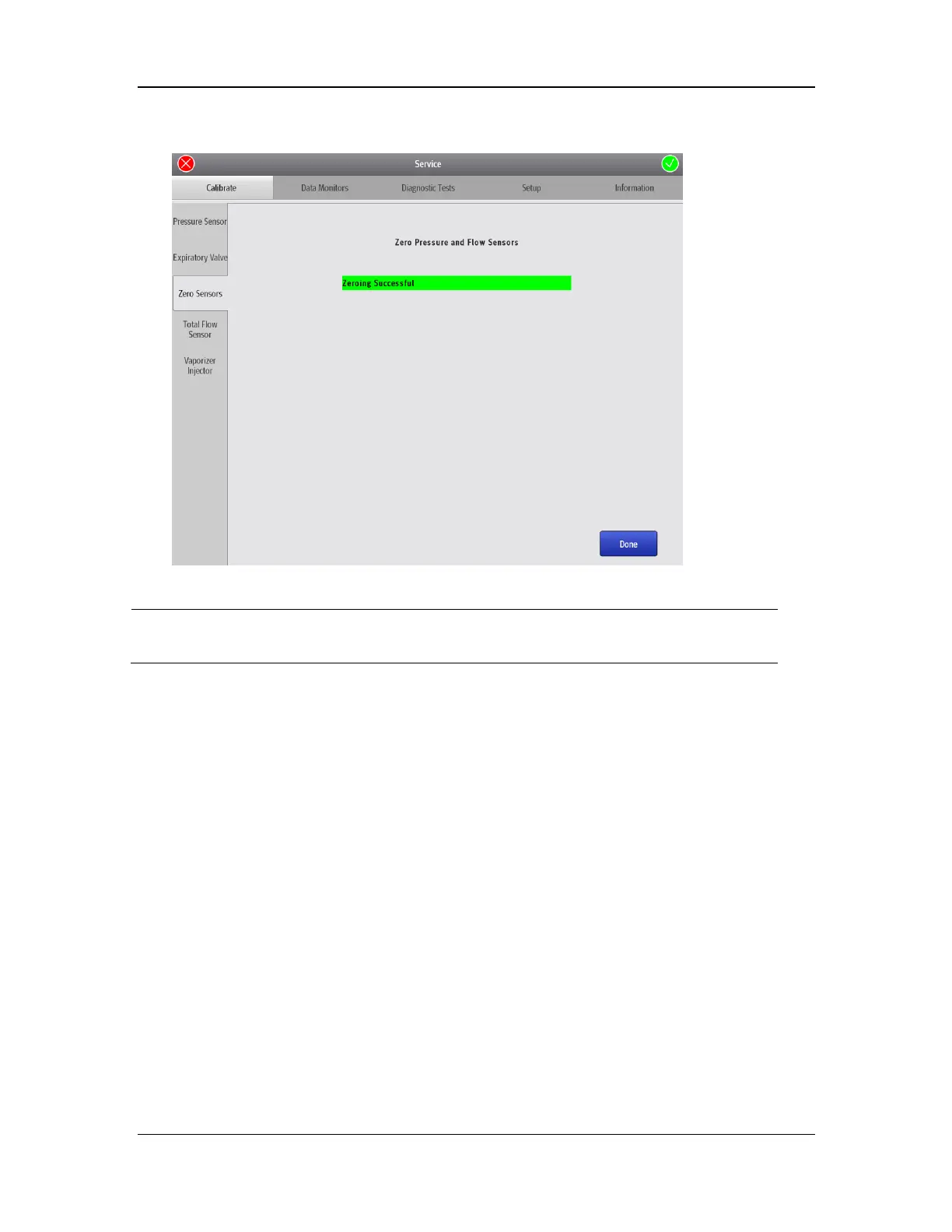

5. The screen shown below is displayed upon successful zeroing. Select Done to exit the zeroing
screen.
NOTE
 Other faults may exist in the machine if the zeroing fails. You must locate and
rectify the faults.
6.3.7.3 Zeroing Failure Troubleshooting
If the zeroing fails, perform the following steps to locate and rectify the fault.
1. Disconnect all gas supplies. Remove breathing tubes from the breathing system so that the
inspiratory and expiratory connectors are exposed in the air. Adjust the fresh gas flows to the
maximum, wait 10s, and turn off all fresh gas flows. Start the valve diagnosis tool. Ensure that no
flow or pressure enters the flow or pressure sensor inside the machine.
2. Check whether the zero points of sensors are abnormal (the values are in red font).
3. If a zero point error is detected, remove the sampling line from the sensor to eliminate effects
caused by the sampling line occlusion or three-way valve. If the zero point is still incorrect, the
VCM is faulty. Replace the VCM.
4. If the zero points of sensors are correct but zeroing still fails, the three-way valve assembly is
faulty. Replace the three-way valve assembly.
6.3.8 Total Flow Sensor Calibration (Service)
6.3.8.1 Principles
To support flow sensor self-test, it is necessary to find out the relationship of N2O measurement
between the O2 flow sensor in the total limb and the flow sensor in the N2O limb. Therefore, it is
necessary to vent in N2O to the machine to calibrate the O2 flow sensor in the total limb. This
operation is performed manually.

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
