Mindray A9 Service Manual

6-47
The calibration principles are as follows: When the EFCS opens the proportional valve in the
N2O limb with a fixed flow for a period of time, read the N2O measured value by the O2 flow
sensor in the total limb. After averaging for a certain period of time, this average value and the
N2O measured value by the flow sensor in the N2O limb form a data point in the calibration table
and so on. The points after calibration is completed form a calibration table.
6.3.8.2 Precautions
NOTE
 Ensure that the N2O supply is connected and its pressure is within the normal
range.
 Ensure that the machine is in the EFCS state.
 Ensure that the machine is in the EFCS state. Connect the N2O supply and
ensure the gas supply pressure is within the normal range. In the manual test of
the FCS test menu, open the N2O valve to make the measured value of the N2O
flow sensor become 0, 0.5, 1, 2, 4, 6, 8, and 10 respectively. Then observe whether
the value of each point measured by the flow sensor in the total limb is within the
accuracy range, and calibrate the value if it exceeds the accuracy range.
6.3.8.3 Calibration Procedure
Perform the following steps to calibrate flow sensors.
1. Enter the standby mode.

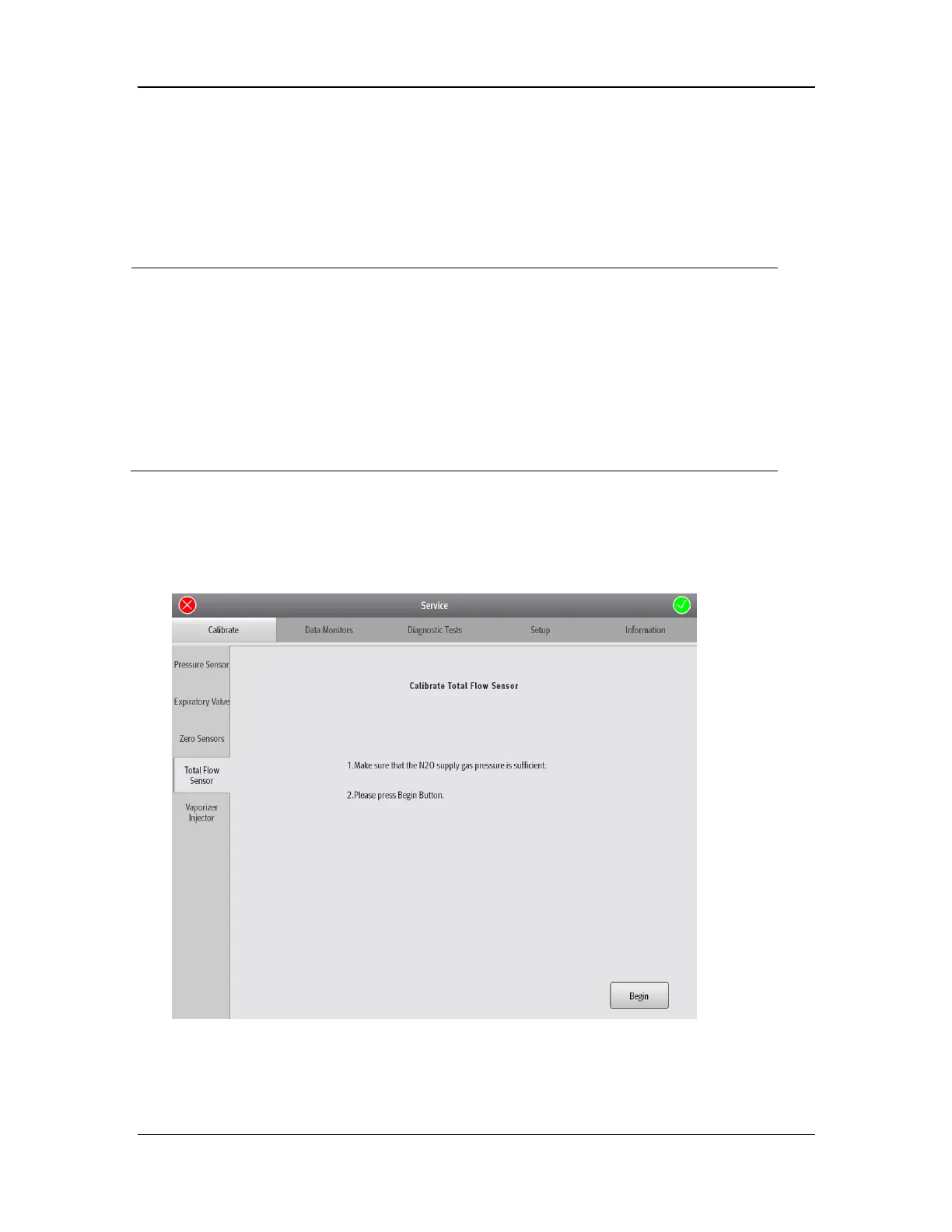

2. Select Setup > Service > Calibrate > Total Flow Sensor to access the screen shown below.

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
