Mindray A9 Service Manual

8-51
8.56 Disassemble the BFCS Switch Control Board
8.56.1 Prepare for Disassembly
8.56.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.56.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.56.1.3 Pre-disassembly
1. Refer to 8.1.1Open the Service Door to open the service door.
2. Refer to 8.1.2Remove the Auxiliary Output Assembly to remove the auxiliary output
assembly.
3. Refer to 8.1.3Remove the Rear Cover Plate of the Work Surface to remove the rear cover
plate of the work surface.
4. Refer to 8.1.4Remove the Work Surface Cover Plate FRU to remove the work surface
cover plate.

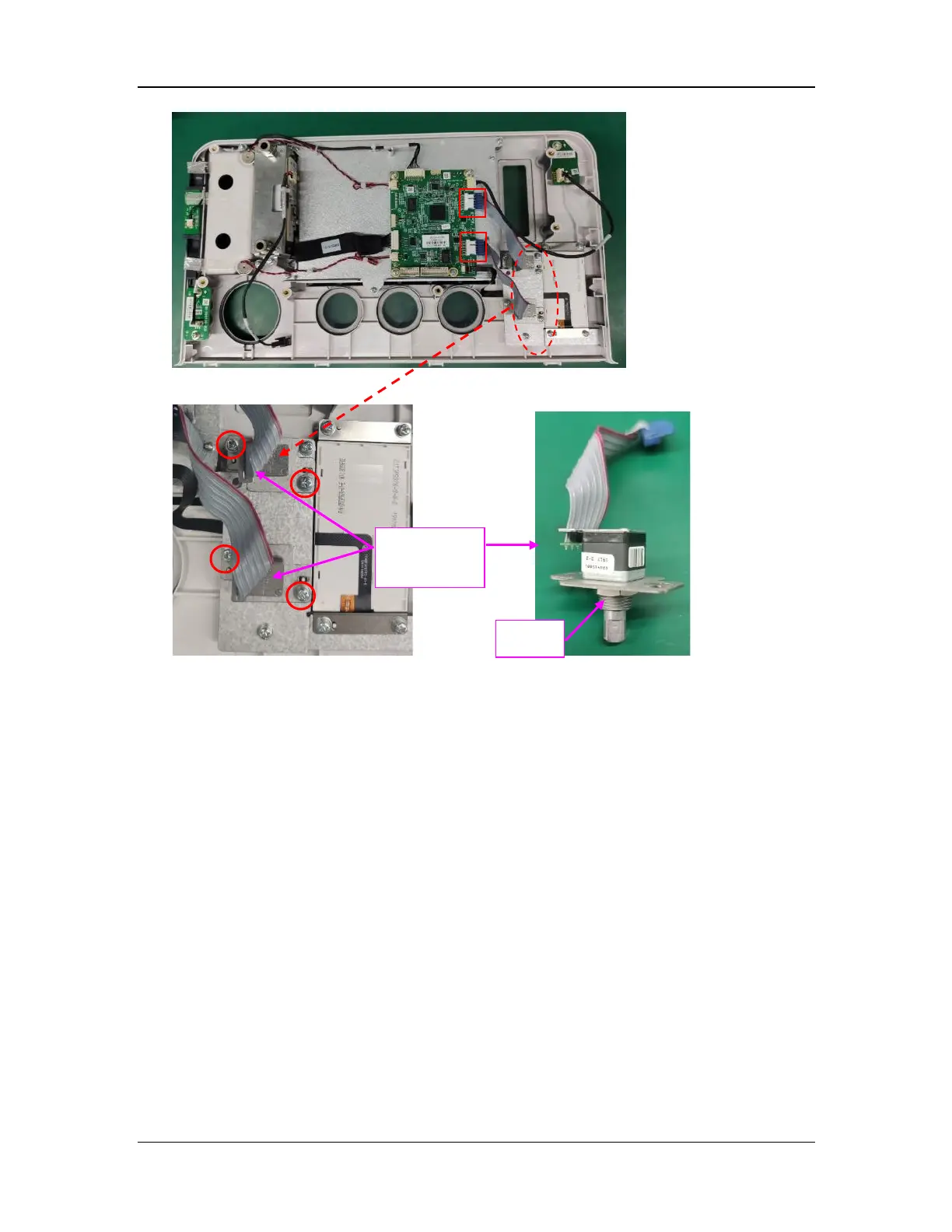

Encoder
assembly
Nut
