Mindray A9 Service Manual

8-30
8.33 Disassemble the CO2 Locking Assembly
8.33.1 Prepare for Disassembly
8.33.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 M5 hexagon screw spanner
 Scissors
8.33.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.33.1.3 Pre-disassembly
1. Refer to 8.1.4Remove the Work Surface Cover Plate FRU to remove the work surface
cover plate.
2. Refer to step 1 in 8.23.2Remove the Patient Circuit Assembly to remove the patient circuit.
3. Refer to 8.28Disassemble the Volume Exchanger Assembly to remove the volume
exchanger assembly.
4. Refer to 8.29Disassemble the VE Box Assembly to remove the VE box assembly.
5. Refer to 8.31Disassemble the Upper-Half Drawer Assembly and 8.32Disassemble the
Lower Drawer Assembly to remove the upper, middle, and lower drawers.
8.33.2 Remove the CO2 Locking Assembly
1. Cut the cable strap with the scissors and disconnect the plug from the CO2 locking assembly
(at the bottom of the VE box).

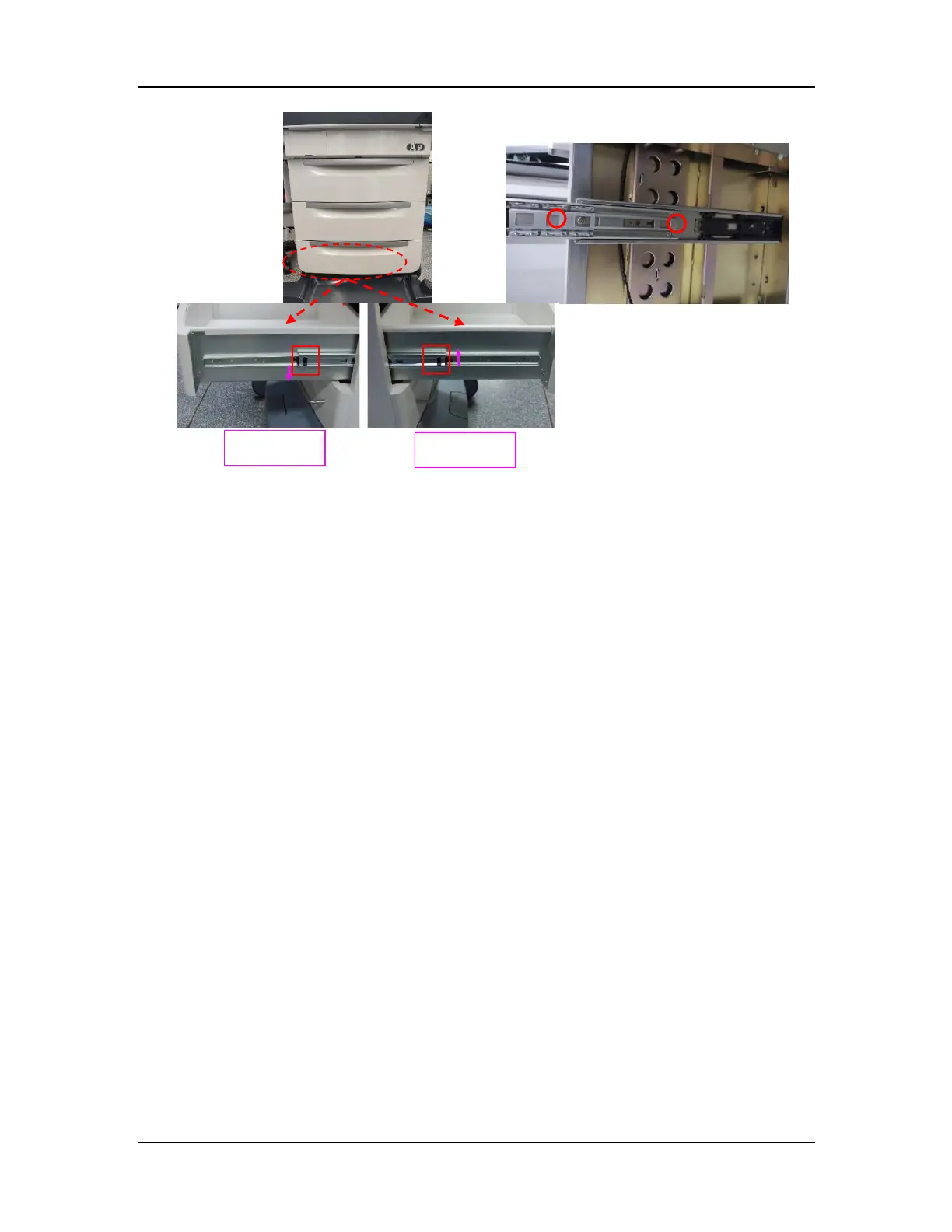

Right rail
Left rail
