Mindray A9 Service Manual

8-54
8.59 Disassemble the Alarm Lamp Board
8.59.1 Prepare for Disassembly
8.59.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.59.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.59.1.3 Pre-disassembly
Refer to step 1 in 8.1.7Remove the Display Assembly to remove the display assembly.
8.59.2 Removing the Alarm Lamp Board

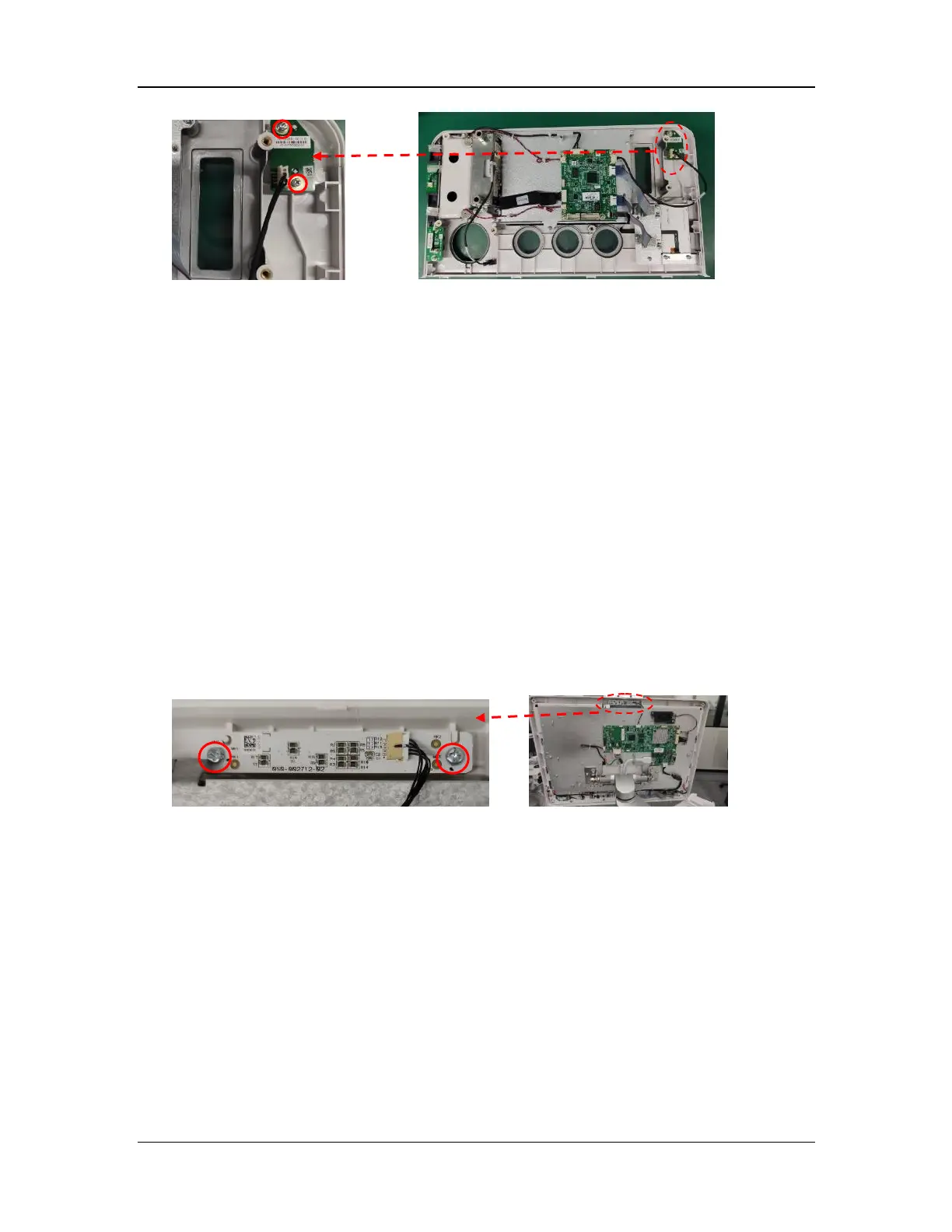

1. Disconnect the cable from the alarm lamp board.
2. Remove the two screws with the Phillips screwdriver to remove the alarm lamp board.
8.60 Disassemble the Speaker
8.60.1 Prepare for Disassembly
8.60.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.60.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
