Mindray A9 Service Manual

8-5
8.7 Disassemble the Locking Nuts of the Inspiration and
Expiration Connectors
8.7.1 Prepare for Disassembly
8.7.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 None.
8.7.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Bleed down the gas pressure inside the anesthesia machine to avoid personal injury or
equipment damage.
 Disconnect all pipeline and cylinder gas supplies.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.

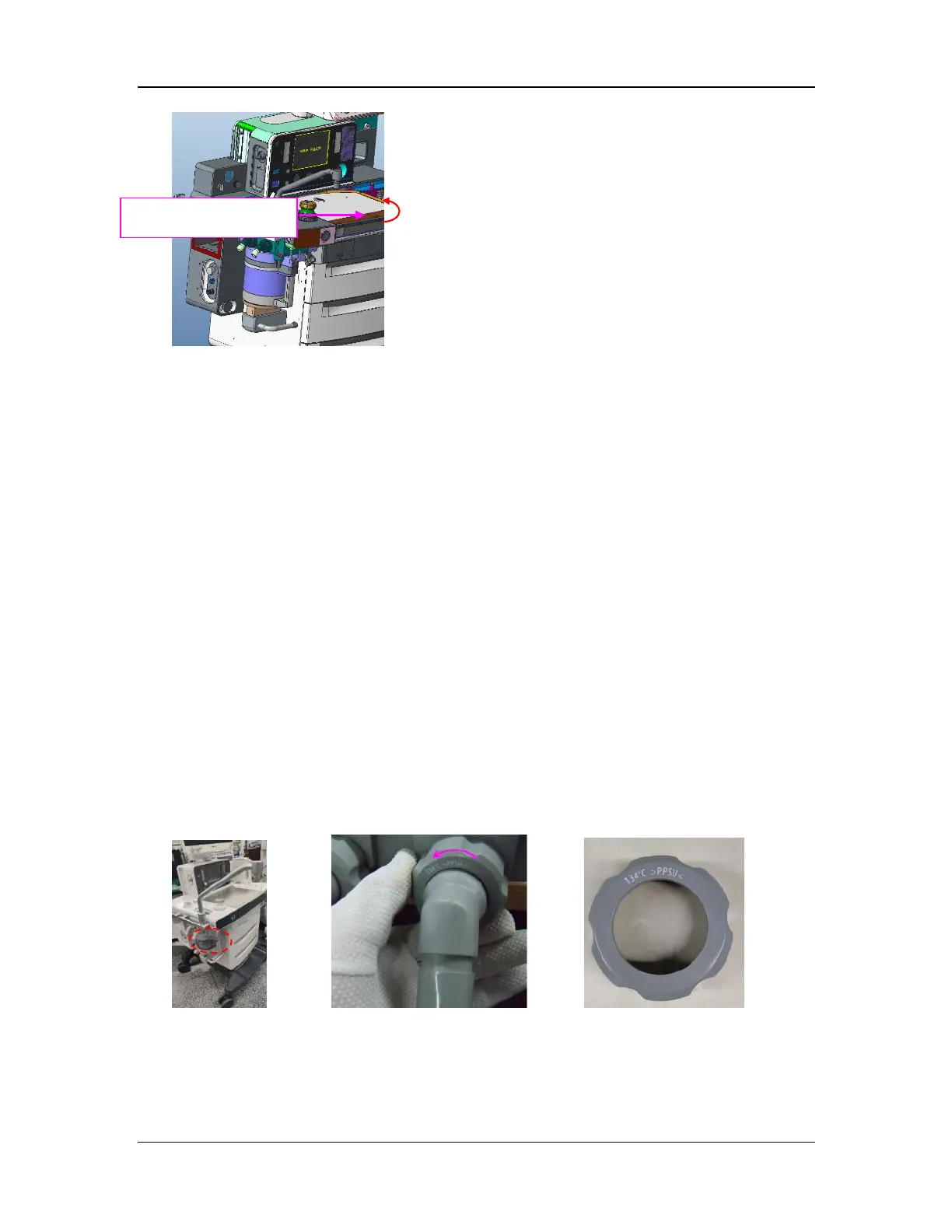

8.7.2 Remove the Locking Nuts of the Inspiration and Expiration
Connectors
Turn the locking nuts of the inspiration and expiration connectors counterclockwise and pull out
them horizontally.
