6.3.11 NMT Sensor Check (User) (Canada Only)

6.3.11.1 Check Procedure

Perform the following steps to check the NMT sensor.

1. Enter the standby mode.

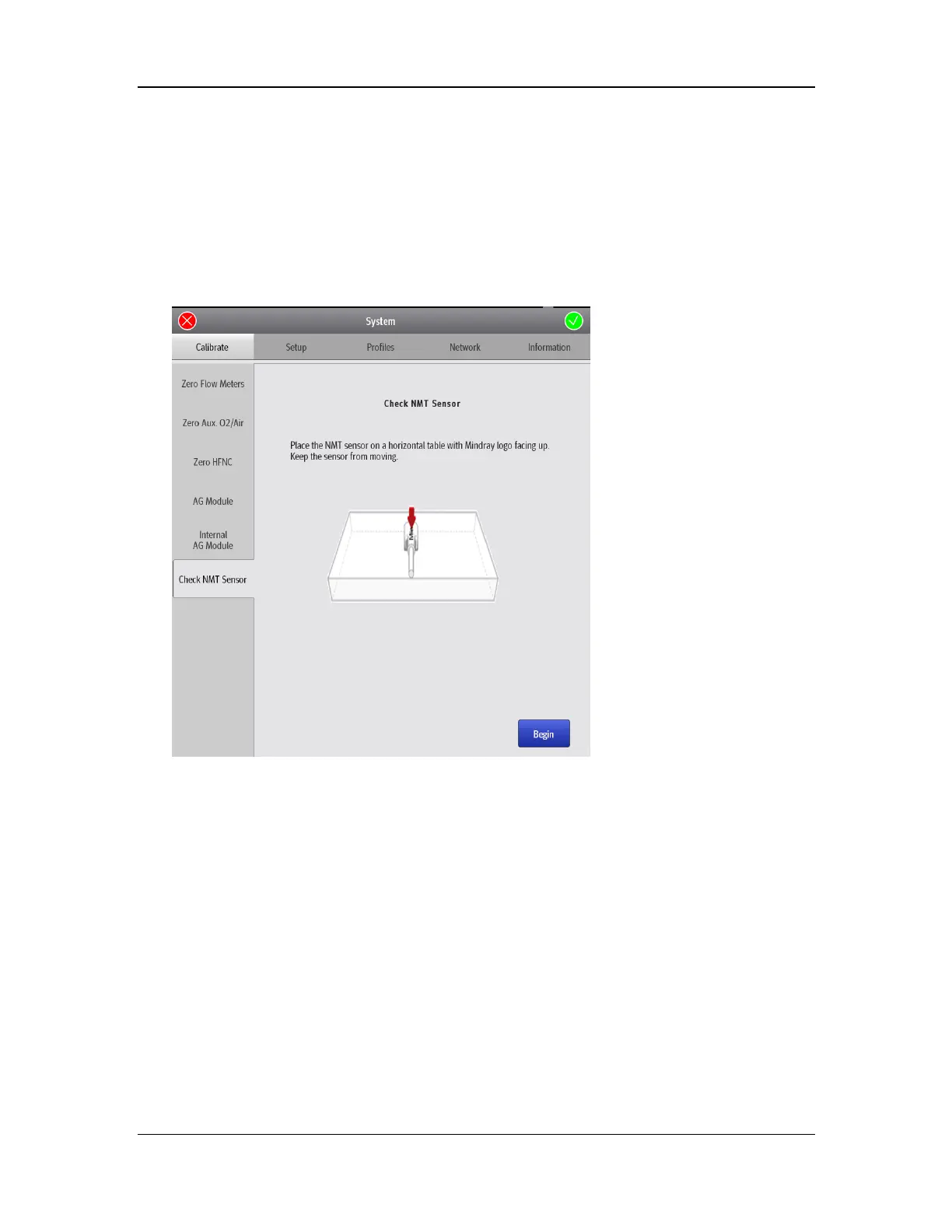

2. Select Setup > System > Calibrate > Check NMT Sensor to access the screen shown below.

Place the NMT sensor on a horizontal table with Mindray logo facing up according to the

instructions. Click Begin to start the check.
