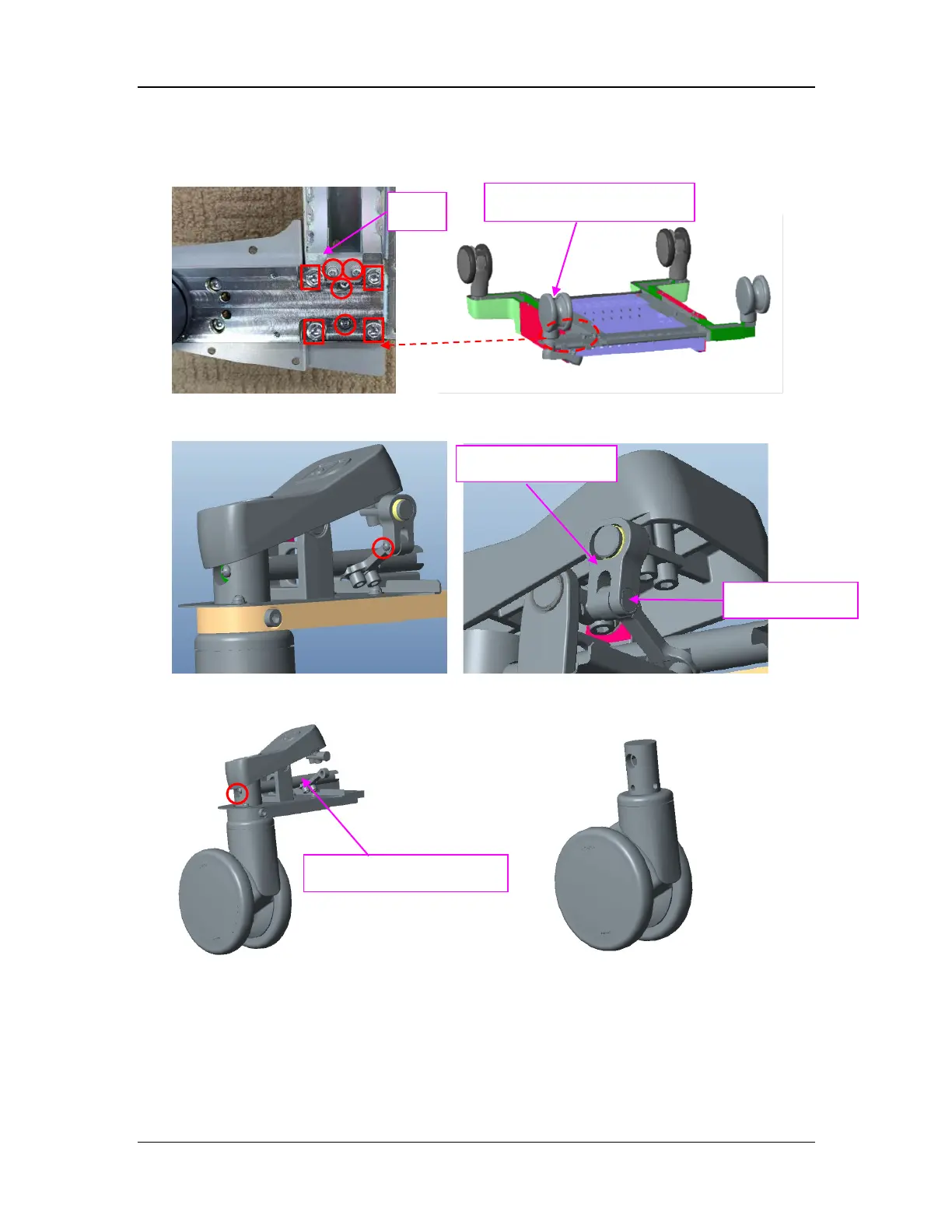

7. Remove the four screws (marked by ○ in the figure) with the Phillips screwdriver to remove
the flap. Then remove the four screws (marked by □ in the figure) with the M8 hexagon screw
spanner to remove the right-front caster assembly.
8. Remove the screw (marked by ○ in the figure) with the Phillips screwdriver, pull out the
brake pivot pin, and remove the foot-operated ram.
9. Remove the screw (marked by ○ in the figure) with the Phillips screwdriver, pull out the
caster driven shaft, and remove the right-front caster.
Right-front caster assembly
Caster driven shaft (0645)
