2-41
2.2.6.4 Auxiliary Flowmeter Backlight Board
The auxiliary flowmeter backlight board is mainly used to provide lighting for the auxiliary
flowmeter.

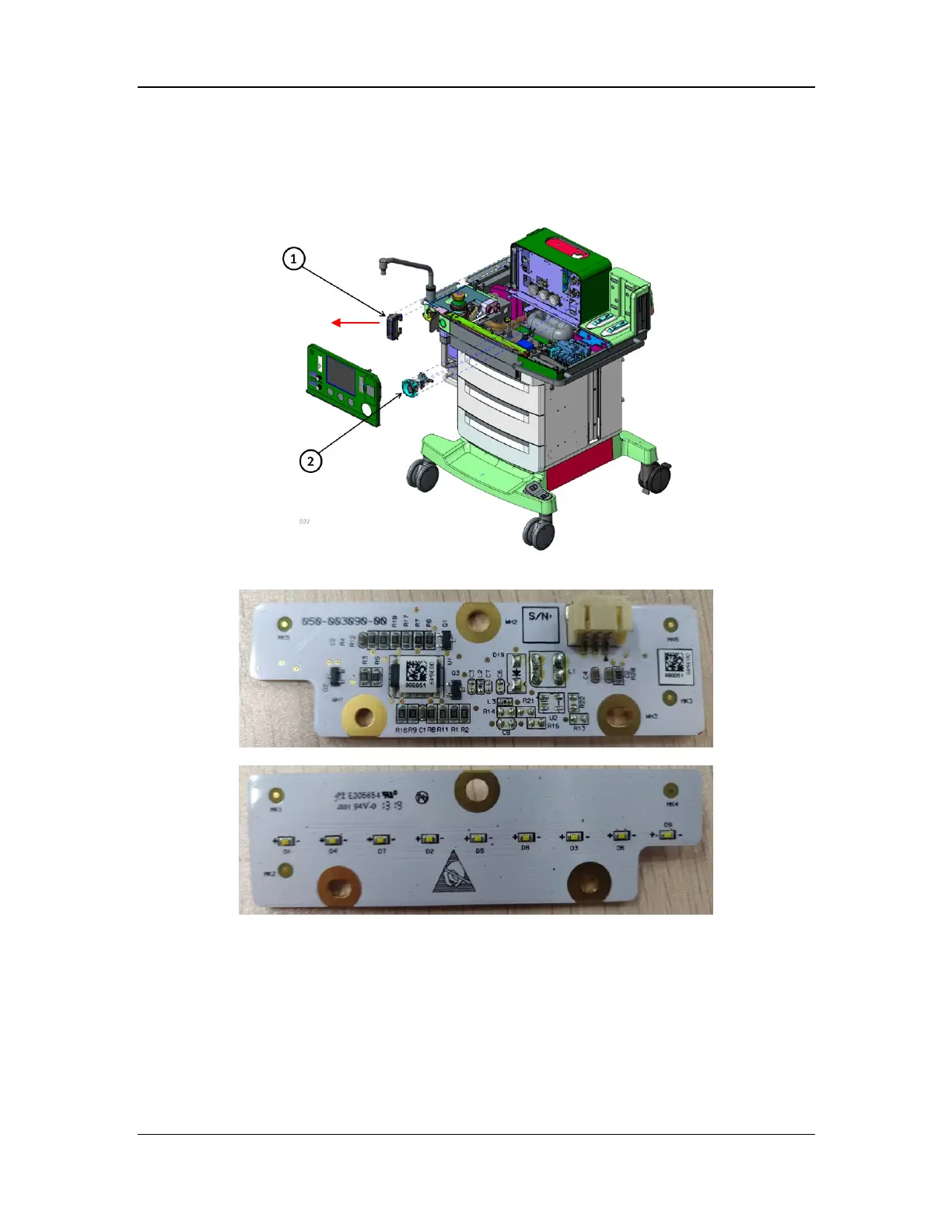

Installation position of the auxiliary flowmeter backlight board
Auxiliary flowmeter backlight board (top view)
Auxiliary flowmeter backlight board (bottom view)
The auxiliary flowmeter backlight
board is installed here.
