8 Test and Maintenance Software
8-3

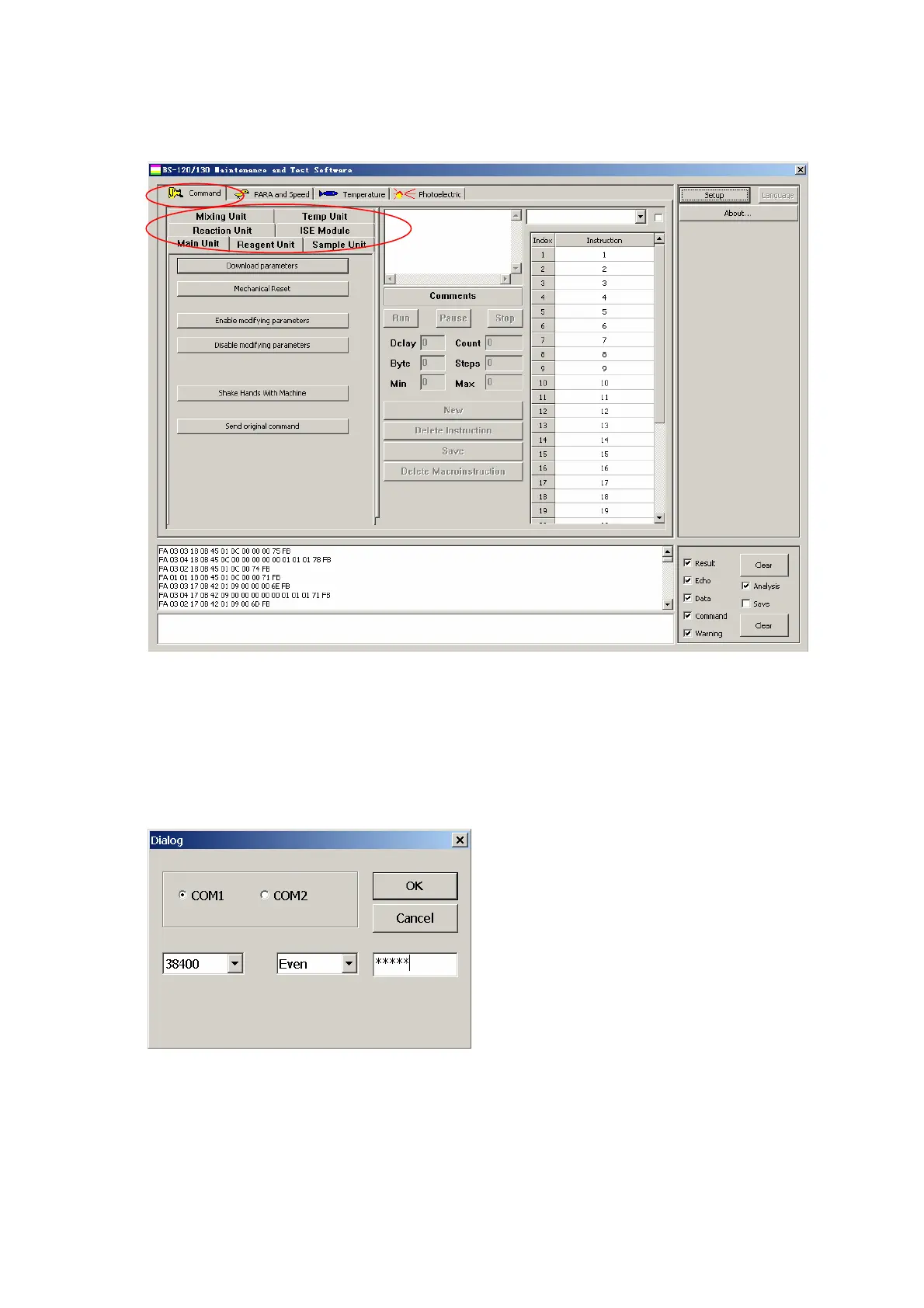

Figure 8-2 Screen Layout of Test and Maintenance Software
8.1.2.3 Language Switch
The software support English and Chinese display. After opening the software, click setup
on the higher-left area and input “bs120” in textbox of the pupped-up dialog box (see
Figure 8-3), and then click ok. As long as the Language button is selectable, click it to
change the language.
Figure 8-3 Input Serial Port Password
8.2 Operating Commands
Click Command on the higher-left as shown in Figure 8-2, and then you can see the tabs
for each unit.
