2 System Performance and Workflow
2-9
b. Sirring reaction liquid
c. Lifting up from the reaction cuvette and moving into the wash pool
d. Washing mixing bar
2.2.2.5 Timing for Reaction Disk
The reaction disk can hold 40 reaction cuvettes. In each working period, the
reaction disk rotates clockwise. It rotates and stops for 3 times respectively, and
passes 41 cuvettes(9+23+9), which means the reaction disk finally stops at the
next position clockwise.

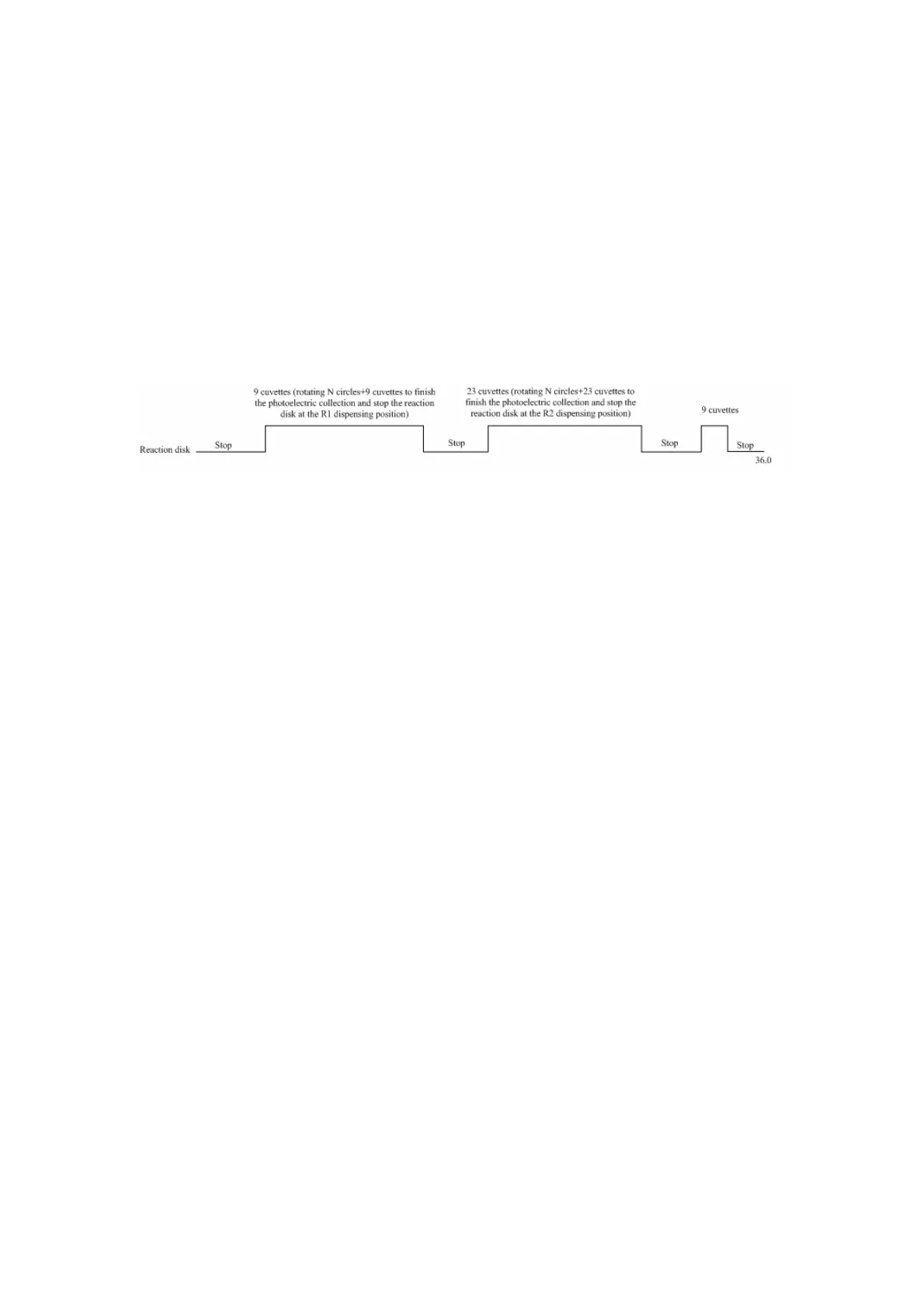

Figure 2-2 Timing of Reaction Disk
2.2.3 Test Workflow
A complete test work flow is show in the following figure.
