4 Units Description
4-2

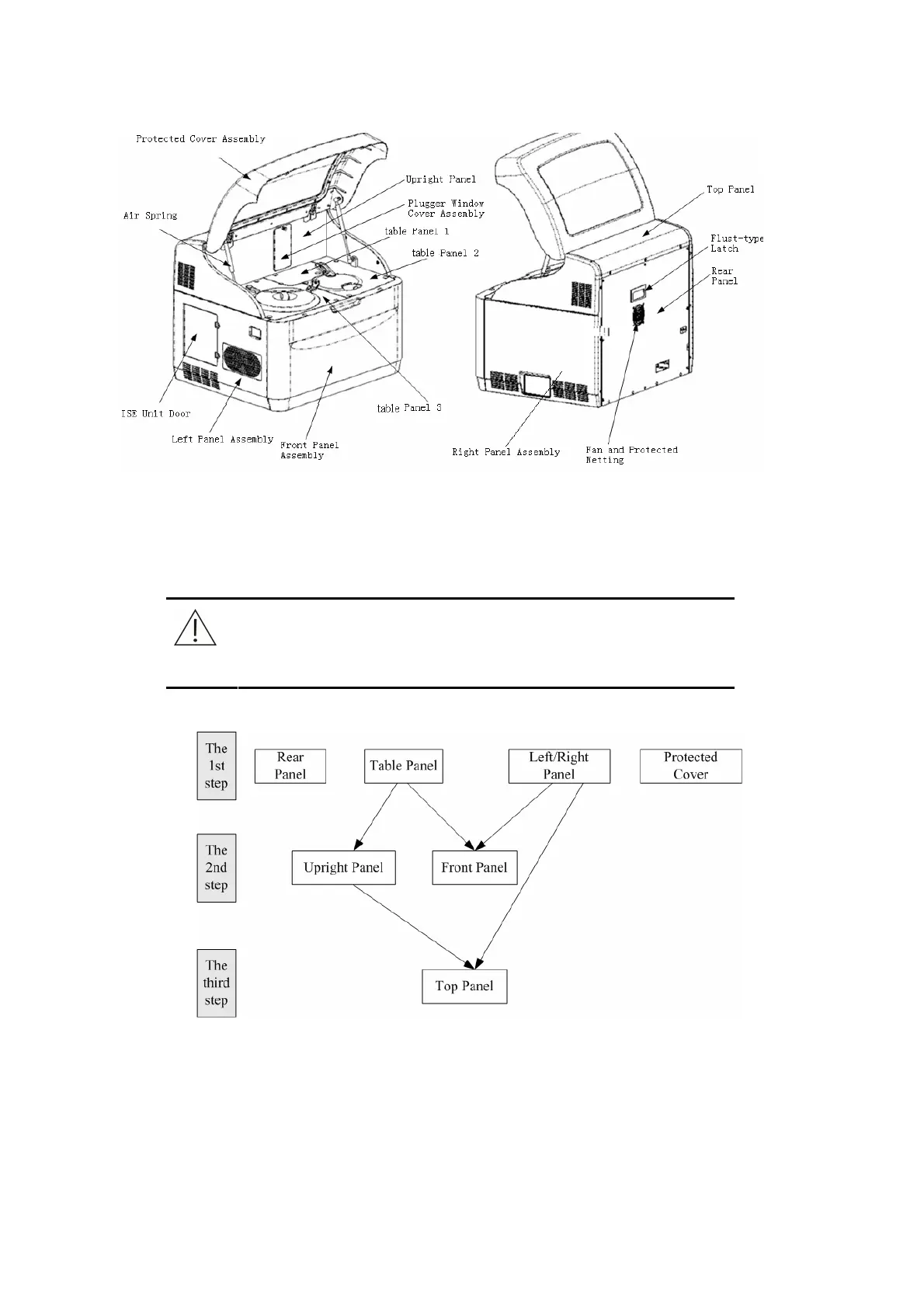

Figure 4-1 Structure of Enclosure and Panel Unit
4.1.2 Dismounting/Mounting of Enclosure Unit
If you need to maintain the inner parts or enclosure parts of analyzer, please turn off
the Power and Main Power, and then carry out the procedures shown in Figure 4-2.
CAUTION
Please turn off the analyzer Power and Main Power before
dismounting or mounting the enclosure and panels.
Figure 4-2 Procedures for Removing Enclosure and Panel Uniit
Usually, do not remove the protected cover because it does not affect the dismounting
of other components. If necessary, please remove one end of the air spring first, and
then remove the fastening screws between the framework and gemel assembly.
The dismounting of rear panel is simple and relatively independent on other panels.
First, unplug the power cable and COM cable on the rear panel, and then dismount the
fastening screws in rear panel. Thus the rear panel can be taken out. For convenient
operation, you can take the flust-type latch in rear panel to remove it. Be sure to pull
out the fan wire plug before removing the rear panel.
