4 Units Description
4-
Reagent Disk Assembly

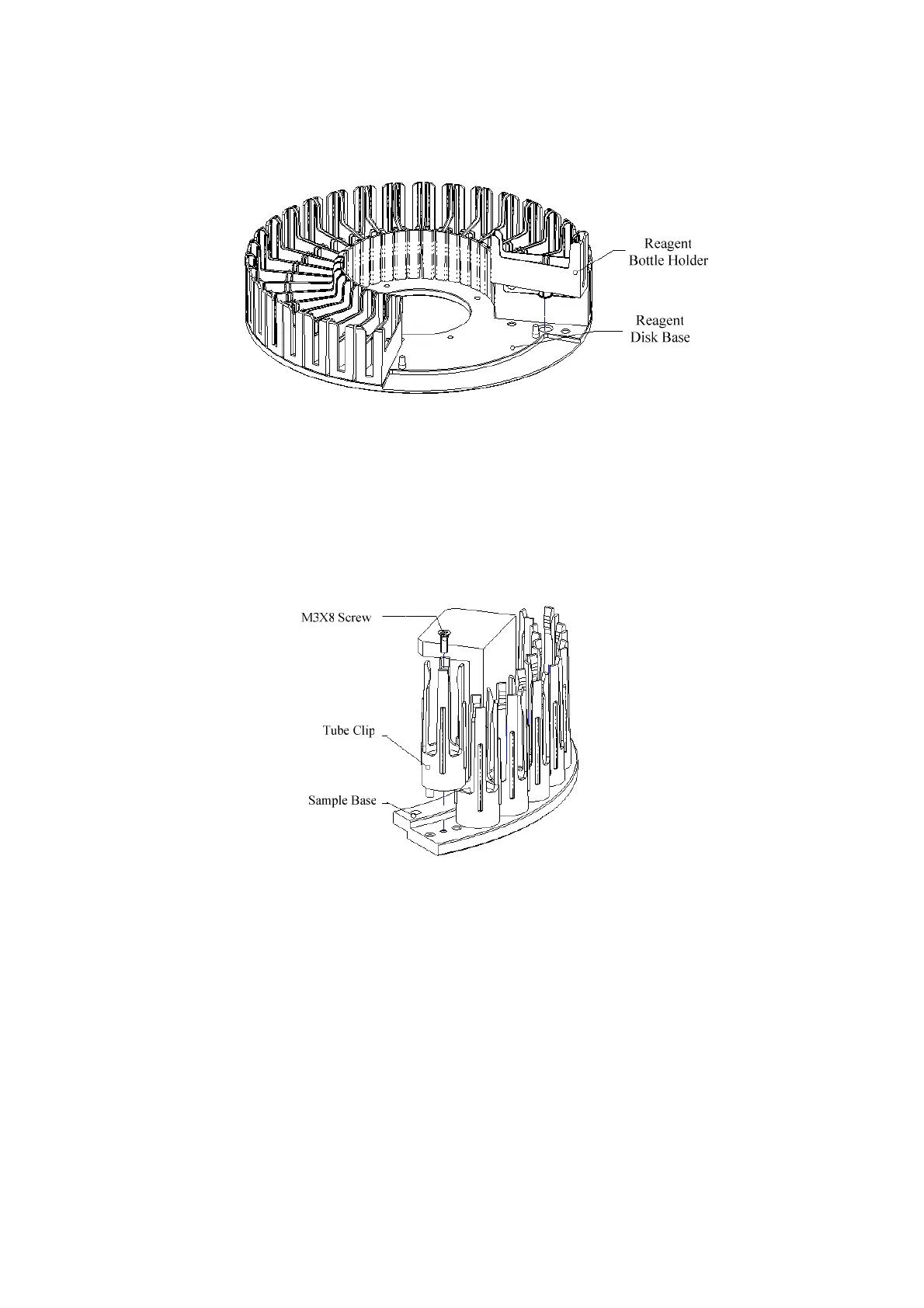

Figure 4-18 Reagent Disk Assembly
The reagent bottle holder is fastened on the reagent disk base. The reagent bottle
holder can be pulled out or pushed in the reagent disk base by hand directly.
Precautions: Make sure that the reagent bottle holder is fastened completely on the
reagent disk base.
Sample Disk Assembly
Figure 4-19 Sample Disk Assembly
Remove one M3x8 cross countersunk head screw, and then replace the tube clip which
is fixed to the sample base.
4.4 Reaction Disk Unit
4.4.1 Function Introduction
The reaction disk unit holds reaction cuvettes and rotates clockwise, carrying the
cuvettes to specified position for sample/reagent dispensing and stirring. The reagents
and the sample react in reaction cuvette. Also the reaction disk unit provides a
constant-temperature environment for the reaction.
Figure 4-20
shows the position on the reaction disk. No.1 is dispensing R1/R2/S position.
No.2 is aspirating pre-diluted sample position. No.5 is photometric measuring position.
No.10 is stirring position. No.25~No.29 is for replacing the cuvettes manually.
