8 Test and Maintenance Software 8-17
8.4 Temperature
8.4.1 Functions
The Temperature provides the functions of real-time monitoring on the temperature of the
reaction disk and the reagent preheating.
8.4.2 Operation Details

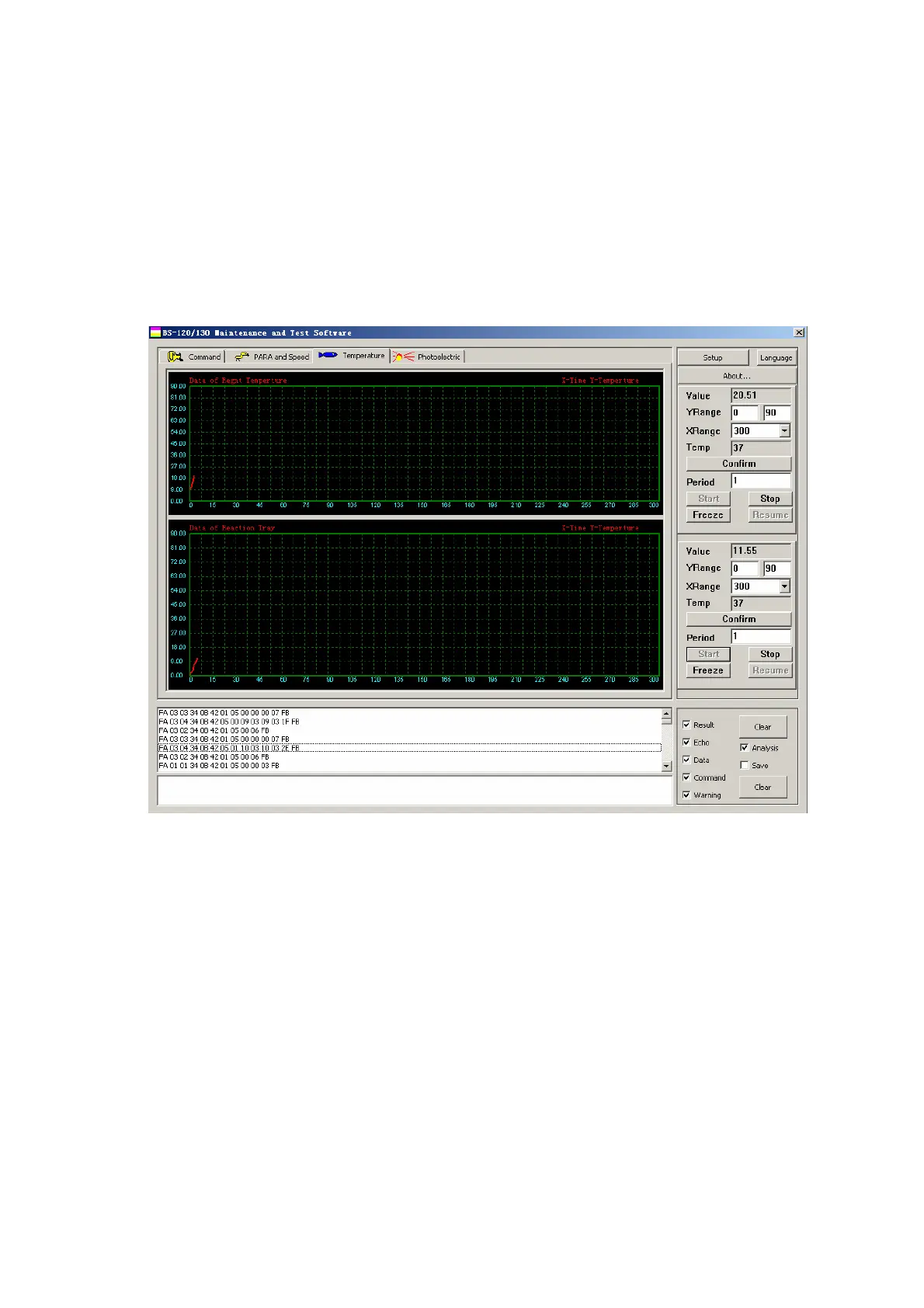

Figure 8-15 Reaction Disk and Reagent Preheat
This following content discribes the functions on the Temperature screen.
Value: current temperature
YRange: set up the Y coordinate range
XRange: set up the points on the X coordinate
Period: set up the interval of sampling. The unit is second.
Stop: stop temperature data collection
Freeze: stop refreshing the curve
Click Start to begin the collection of temperature data.
You can adjust the YRange during collection.
The startup temperature will be saved automatically under the running directory.
The operation to monitor the temperature curve of reagent preheating is the same as
