8 Test and Maintenance Software
8-5

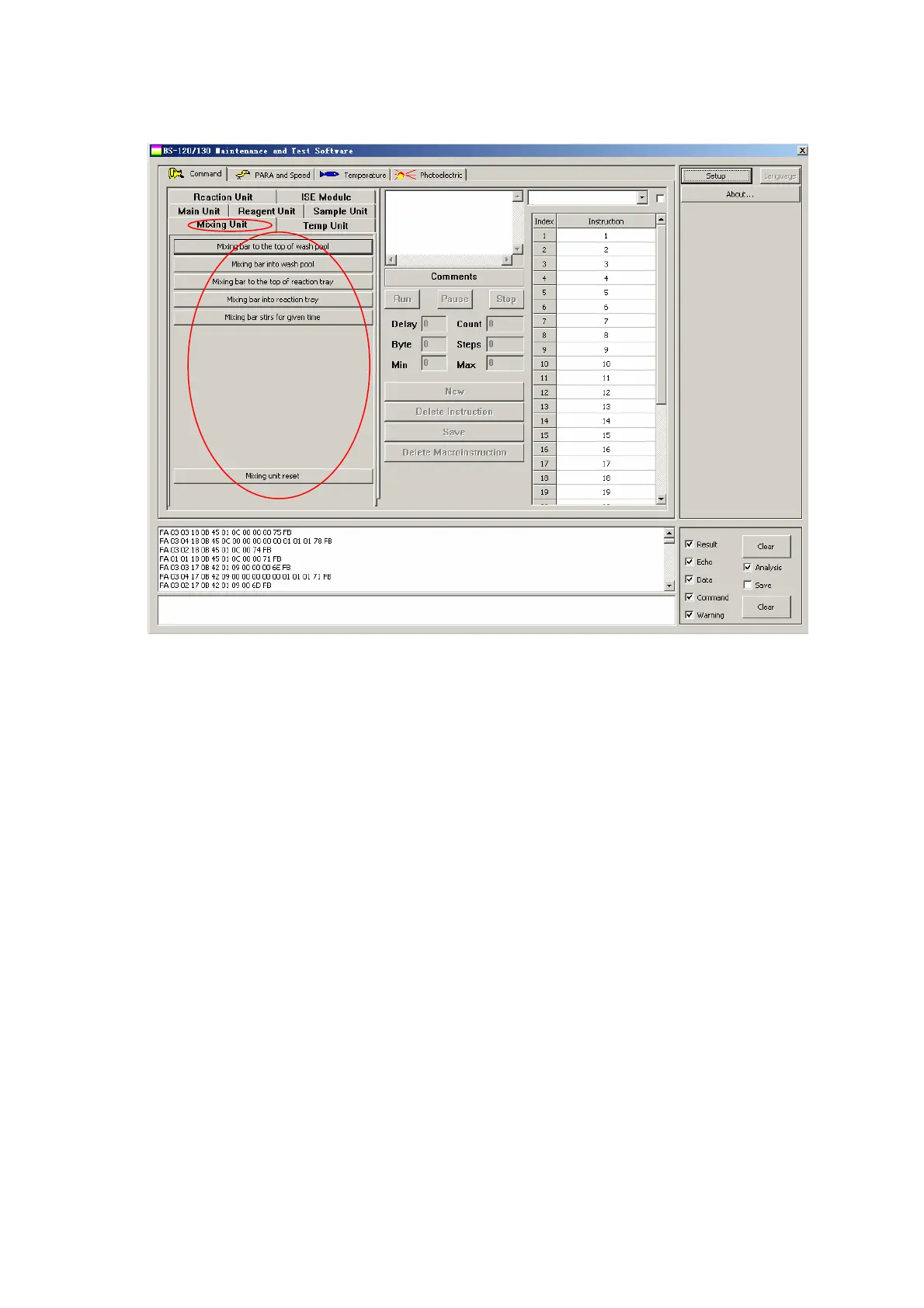

Figure 8-4 Mixing Unit Debugging Interface
8.2.3 Reagent Unit
Click Reagent Unit on the higher-left area and then you can see the function buttons of
the reagent unit. For Reagent tray rotate, input the number of circles to rotate in the first
edit box, and the specified position to stop in the second edit box. The specified position
means specified bottle to aspirate.
The Reagent probe postion correct and Stop are reserved functions, but not available
in the current version.
Like other units, the actual working postion of the sample unit and reagent unit is
determined by their respective position parameters. Please refer to 8.3 for details about
parameters.
